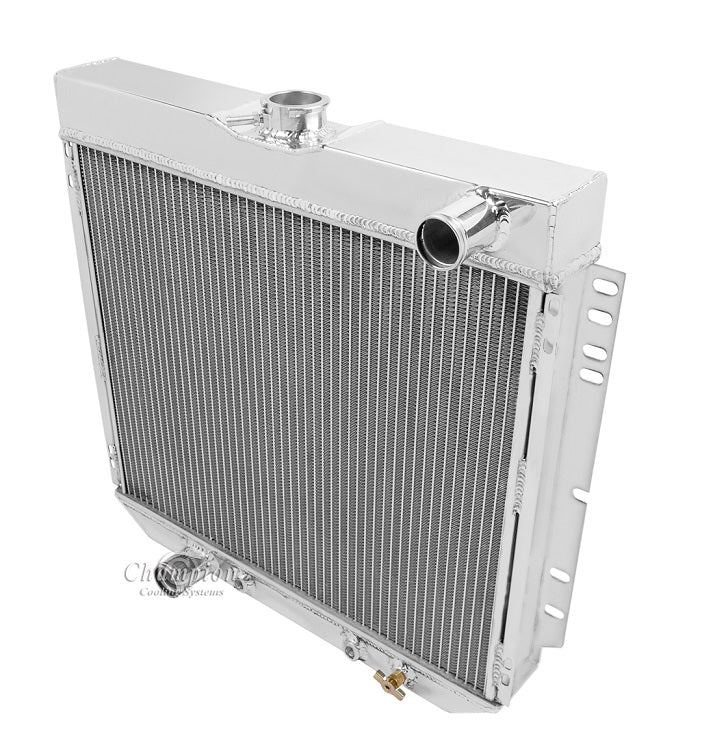

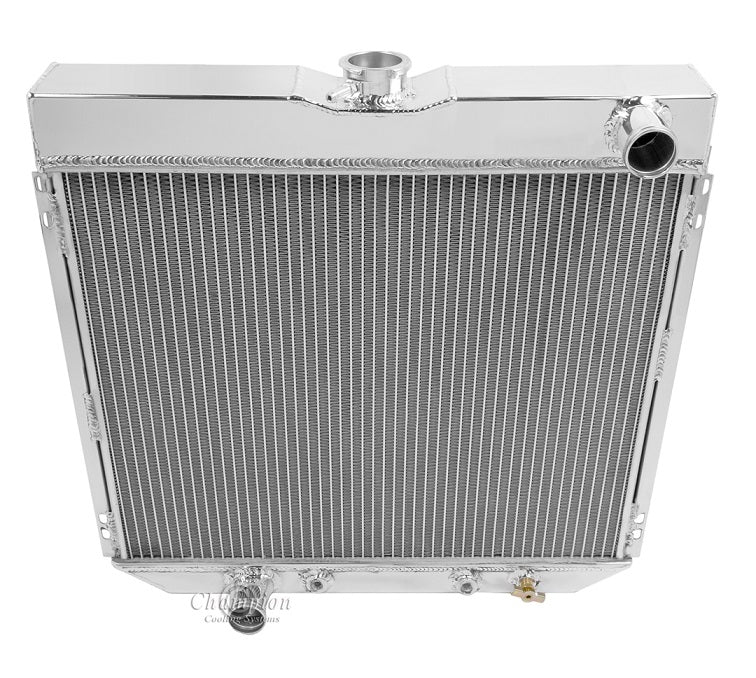

AE339 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core: 1" Tubes | Cools up to 550hp

Radiator Dimensions:
Total: 20.38" tall (21" with cap) x 22.25" wide (including brackets)
Core: 16.5" tall x 19.5" wide x 2.2" thick
Inlet: 1.5" passenger
Outlet: 1.5" driver
Tanks: 2.5" thick
Tubes: 1" thick

Transmission Cooler included (1/8-27NPT)
16 lb. Radiator Cap included
Aluminum fan Shroud for One 16" Electric Fan is also available (sold separately)

Recommended electric fans:
One 16" Electric Cooling Fan is recommended for this core size (sold separately)
