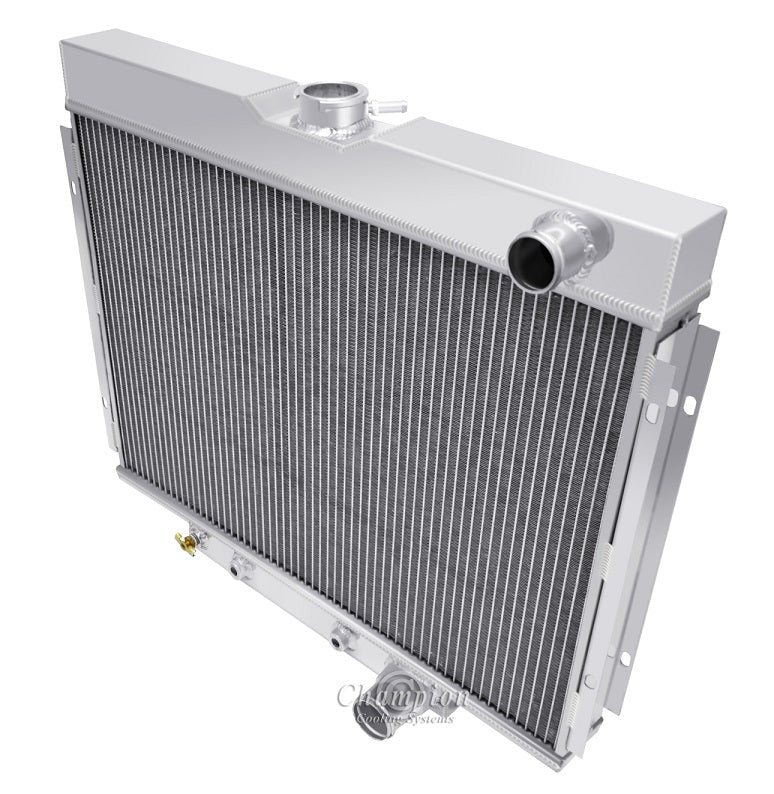

AE338-338FS16SP 2 Row 1" Tubes

Champion All Aluminum Radiator Plus

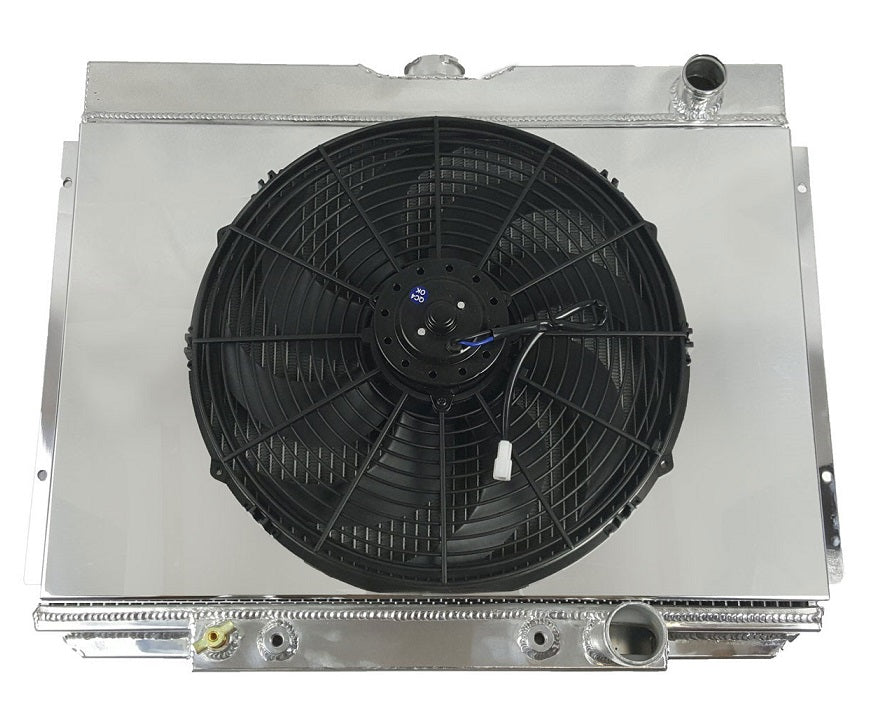

Ledfoot Racing Shroud & 16" SPAL Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core, 1" tubes | Cools up to 650hp

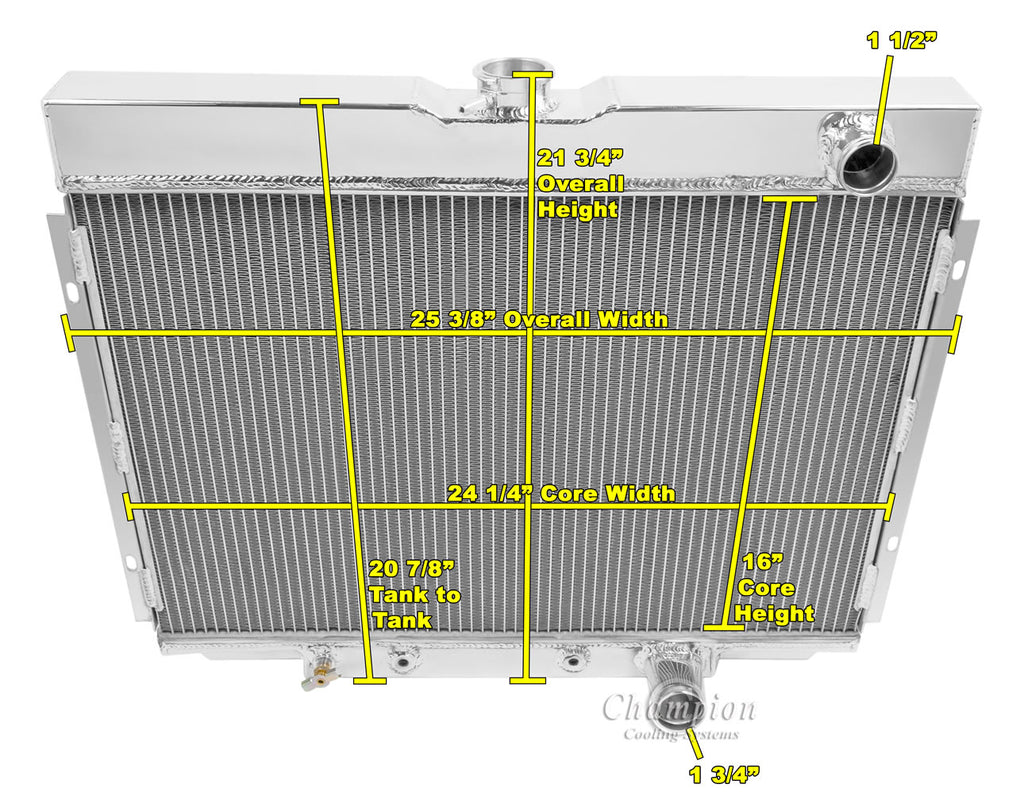

Radiator Dimensions:
Total: 21" (22" with cap) x 25.5" wide (including brackets)
Core: 16.5" tall x 24" wide x 2.15" thick
Inlet: 1.5" passenger side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" to back of fan

Saddle or Bracket Mount System

Polished 16 lb Radiator Cap included
Transmission Cooler Included (1/8-27npt)
