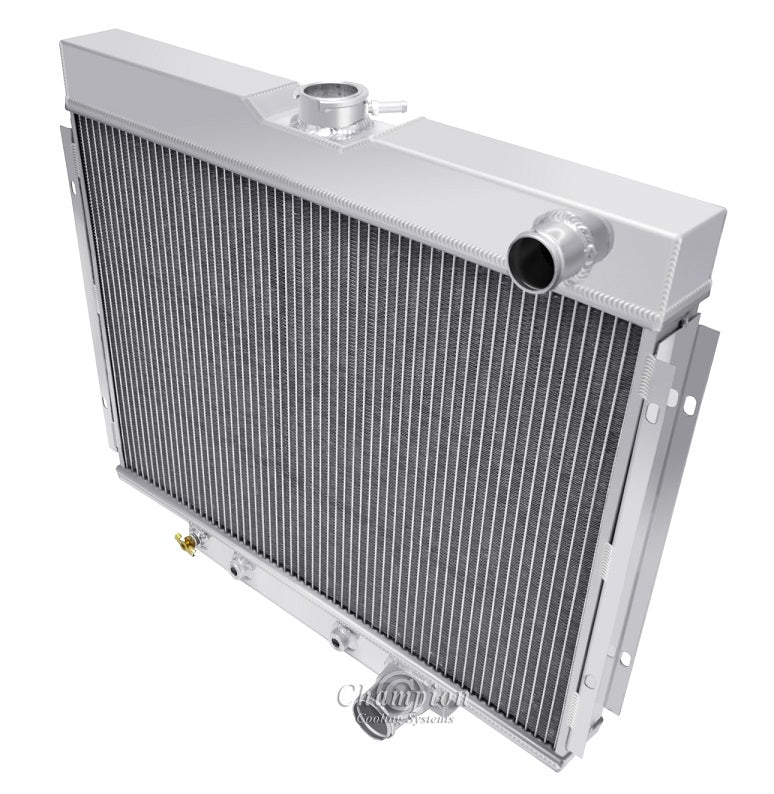

AE338 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 650hp

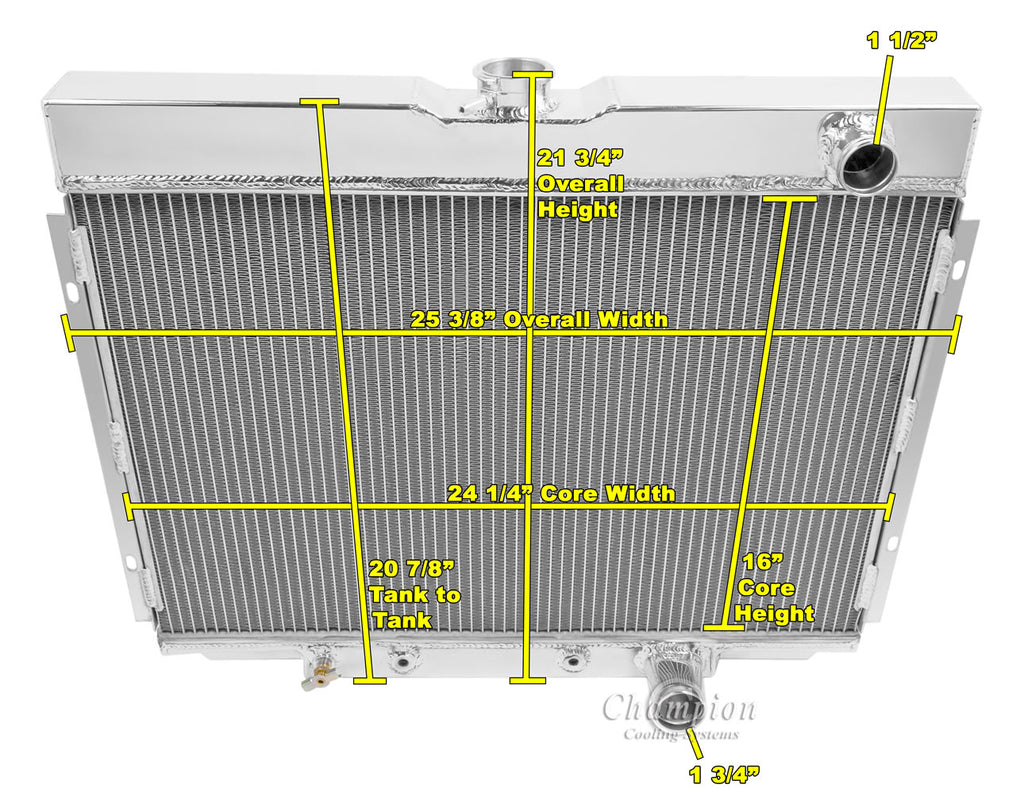

Radiator Dimensions:
Total: 21" (22" with cap) x 25.5" wide (including brackets)
Core: 16.5" tall x 24" wide x 2.15" thick
Inlet: 1.5" passenger side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle or Bracket Mount System

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Fan Shroud for One 16" Electric Fan or 2-12" Electric Fans is also available (sold separately)

Recommended Electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
