AE337-337FS16 2 Row 1" Tubes

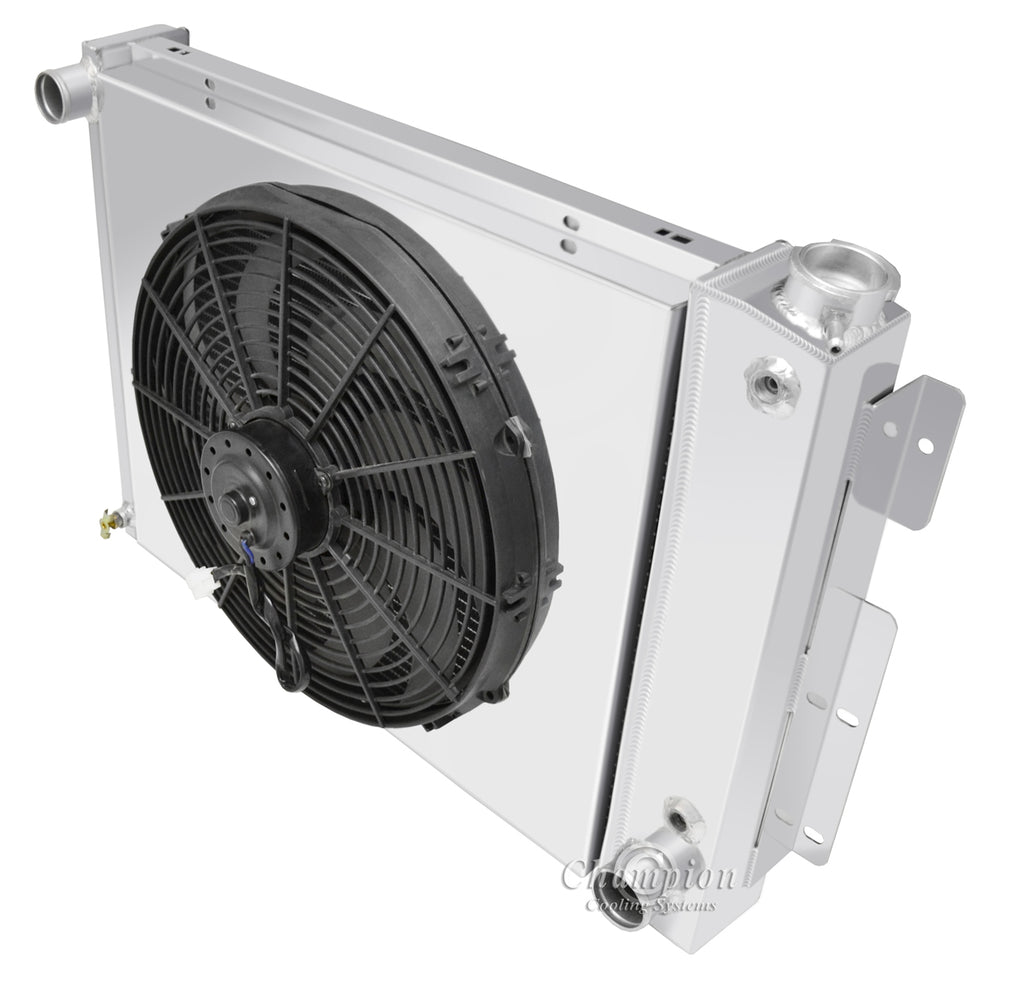

Champion All Aluminum Radiator

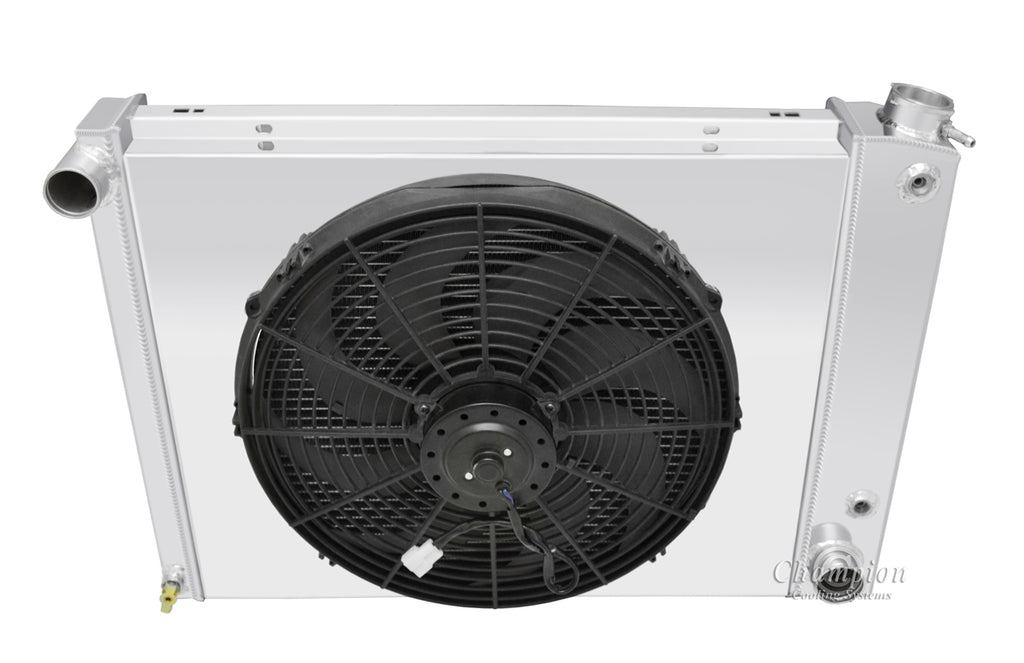

Plus Ledfoot Racing Aluminum Shroud and 16" Cooling Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core, 1" Tubes | Cools up to 500hp

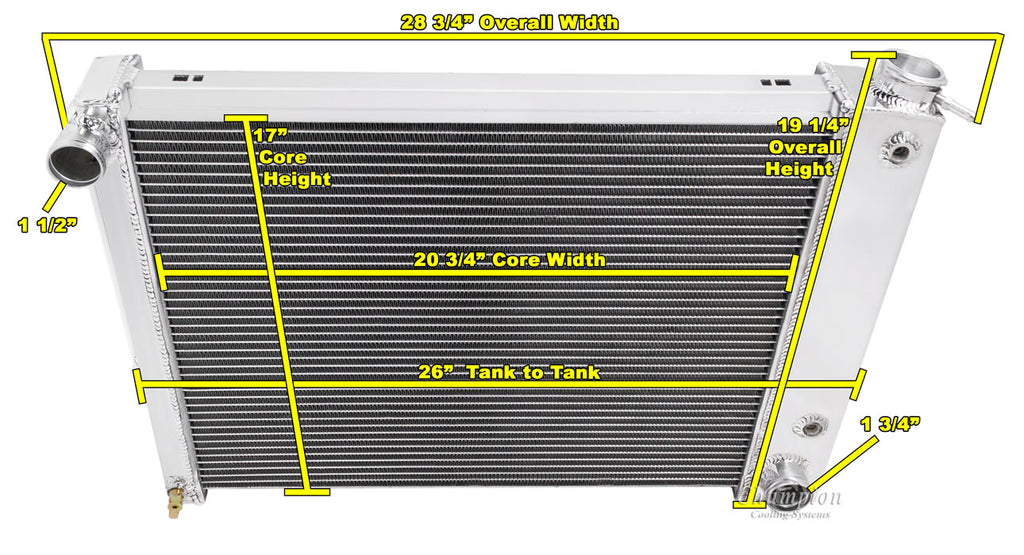

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 27.38” wide (including brackets)
Core: 16.75" tall x 20.75" wide x 2.2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

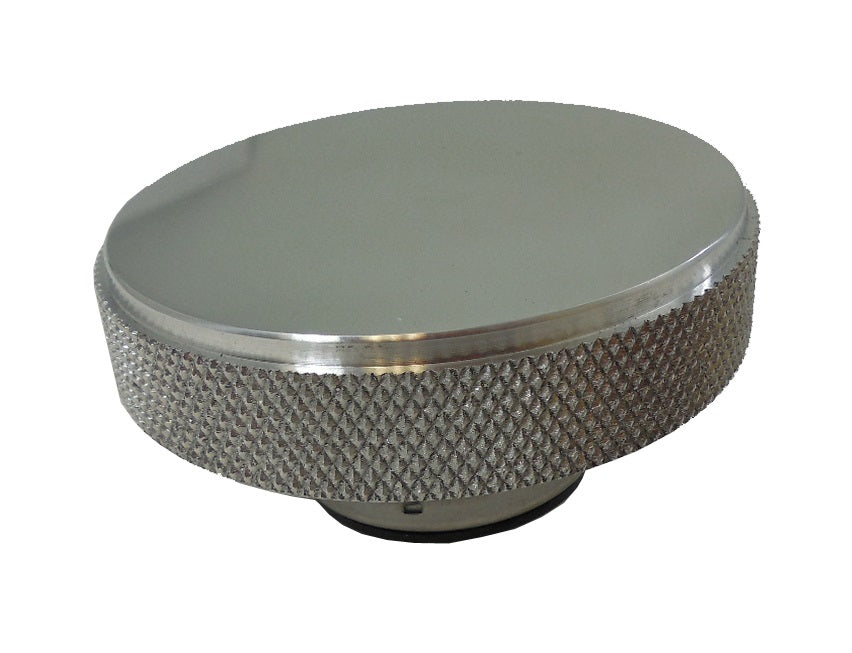

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included
