AE337 2 Row 1" Tubes

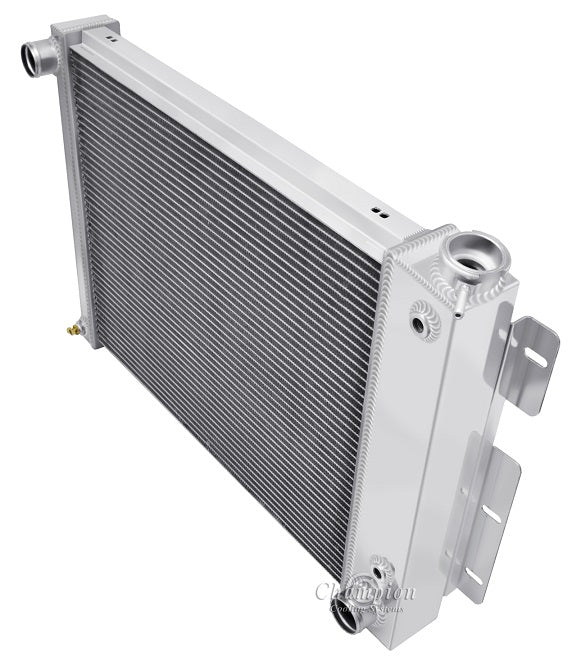

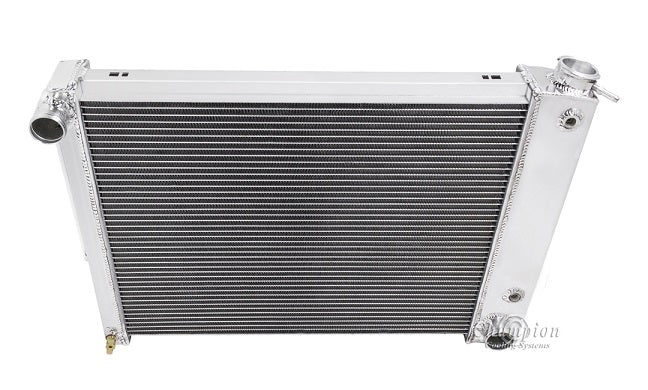

Champion All Aluminum Radiator
2-Row Core, 1" tubes | Cools up to 550hp

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 27.38” wide (including brackets)
Core: 16.75" tall x 20.75" wide x 2.2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mount System

16 lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)

Recommended Electric Cooling fans:
One 16" Electric Fan is recommended for this core size (sold separately)
