AE3132-3132FS16 2 Row 1" Tubes

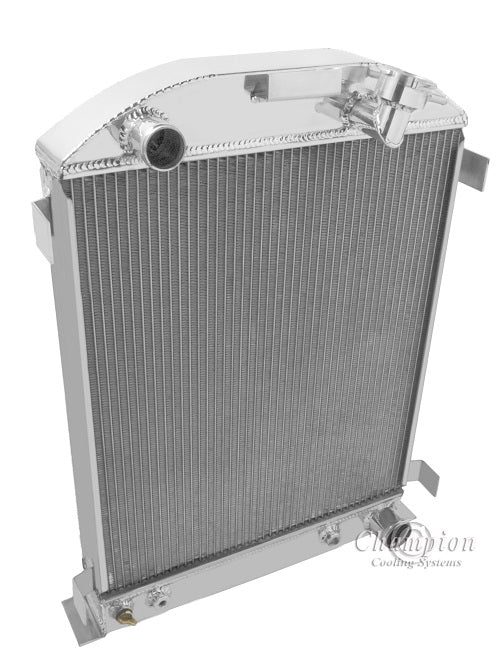

Champion All Aluminum Radiator

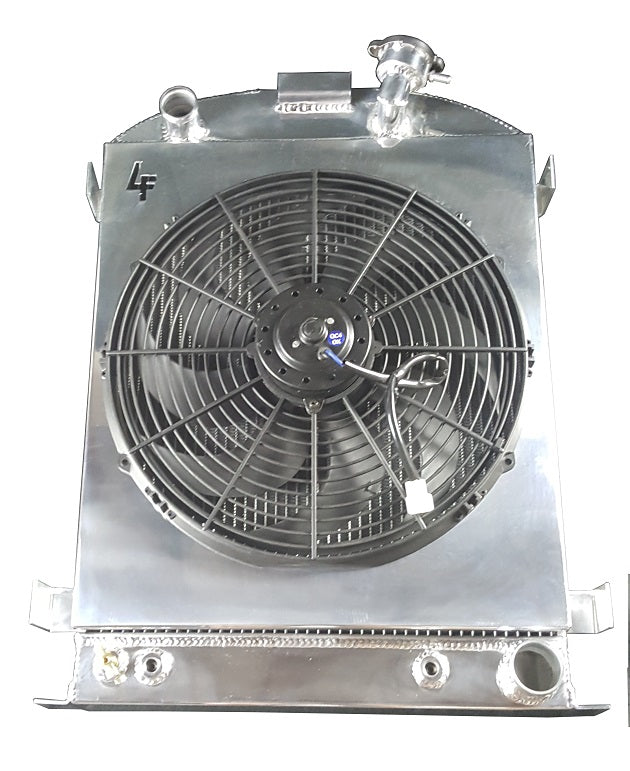

Plus Ledfoot Racing Shroud and 16" fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
2-Row 1" Core | Cools up to 700hp

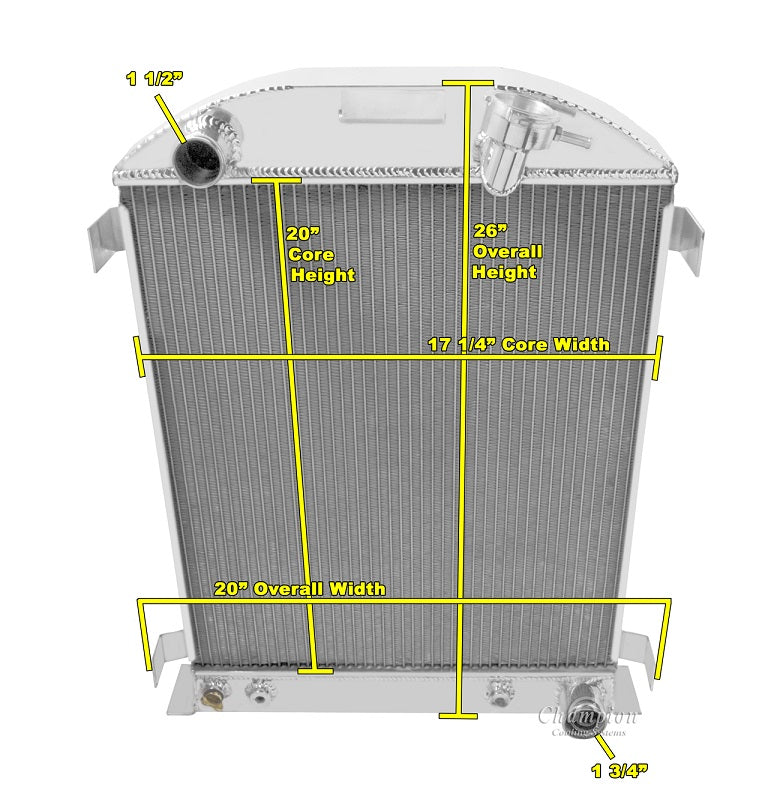

Radiator Dimensions:
Total: 19.75" wide (lower bracket) x 26.5" tall
Core: 17.25" wide x 20" tall x 2.25" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: 3" thick | 17.5" wide
Tubes: 1" thick

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/2"-20 STRAIGHT THREAD)
