AE3132 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core, 1" Tubes | Cools up to 750hp

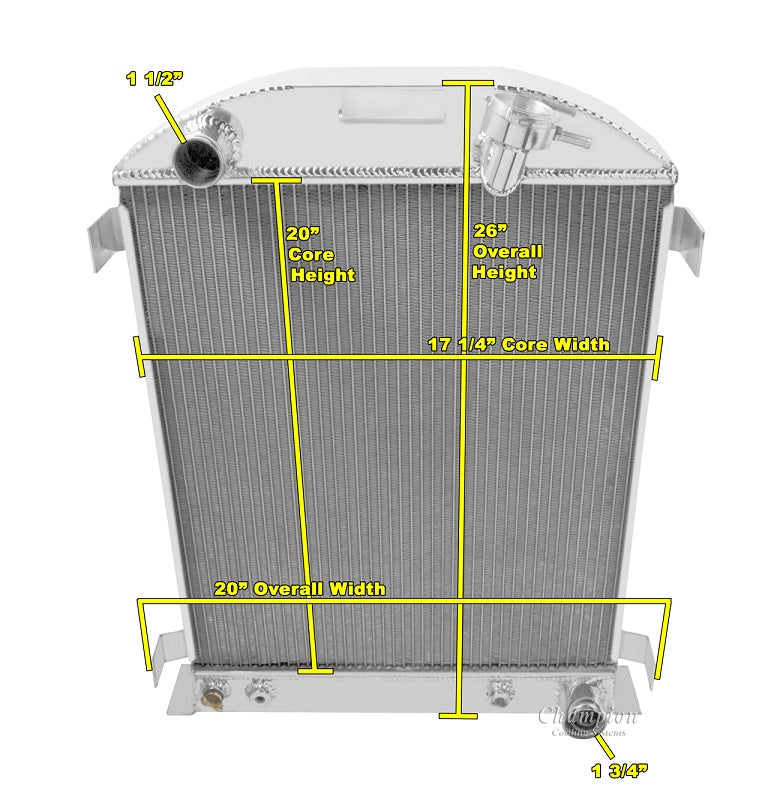

Radiator Dimensions:
Total: 19.75" wide (with lower bracket) x 26.5" tall
Core: 17.25" wide x 20" tall x 2.1" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 3" thick | 17.5" wide
Tubes: 1" thick

16 lb. Radiator Cap Included
Transmission Cooler Included (1/2" -20 STRAIGHT THREAD)

Recommended electric fans:
One 16" electric fan recommended for this core size (sold separately)
