AE3032 2 Row 1" Tubes

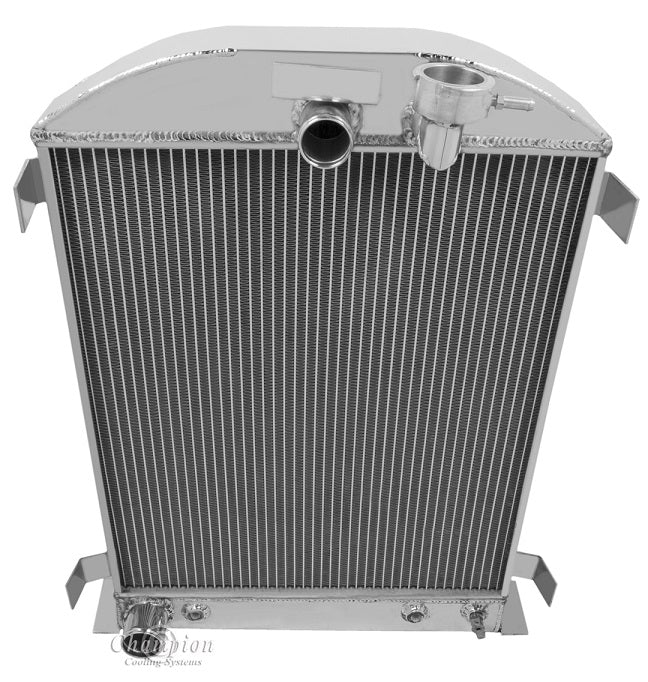

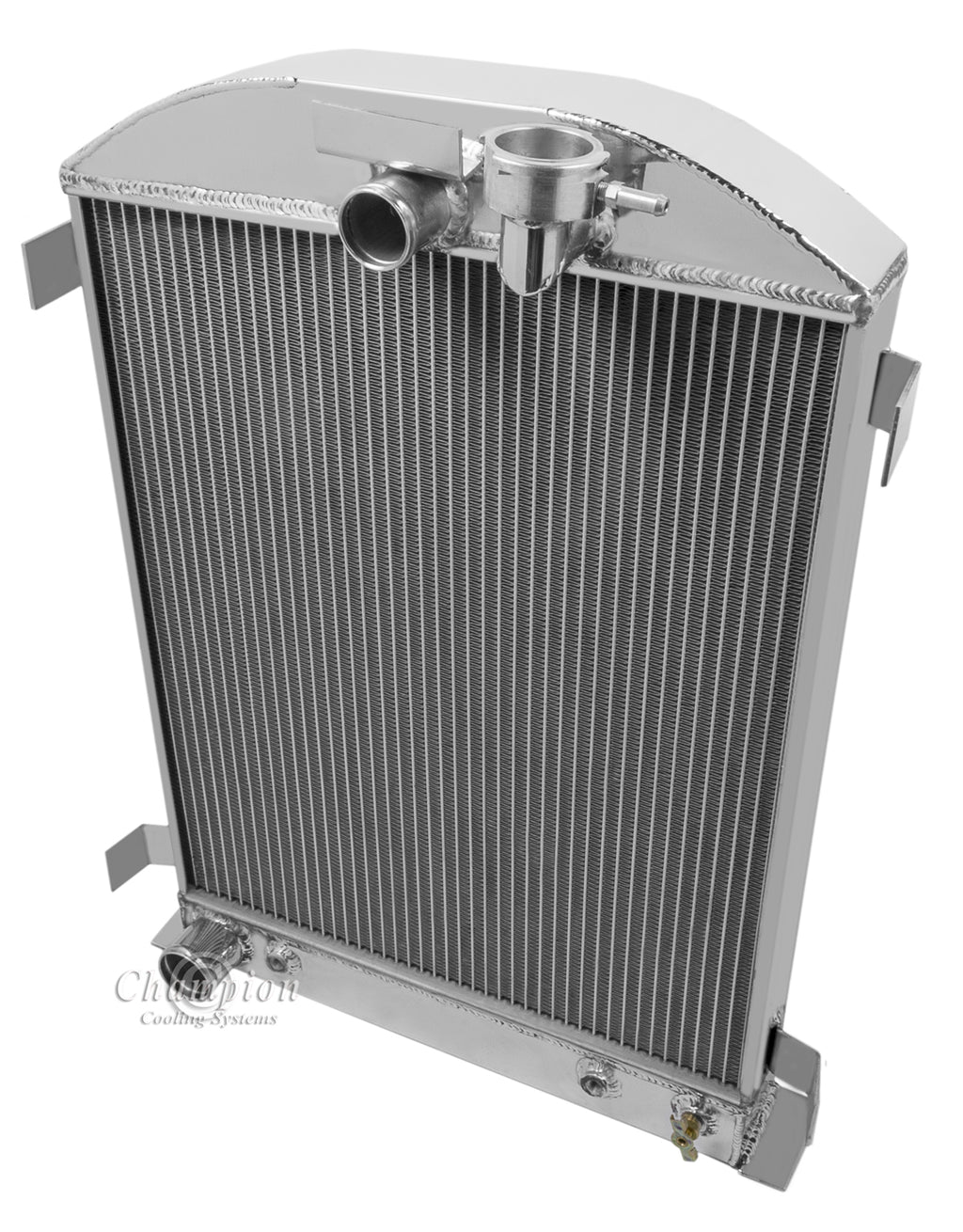

Champion All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 700hp

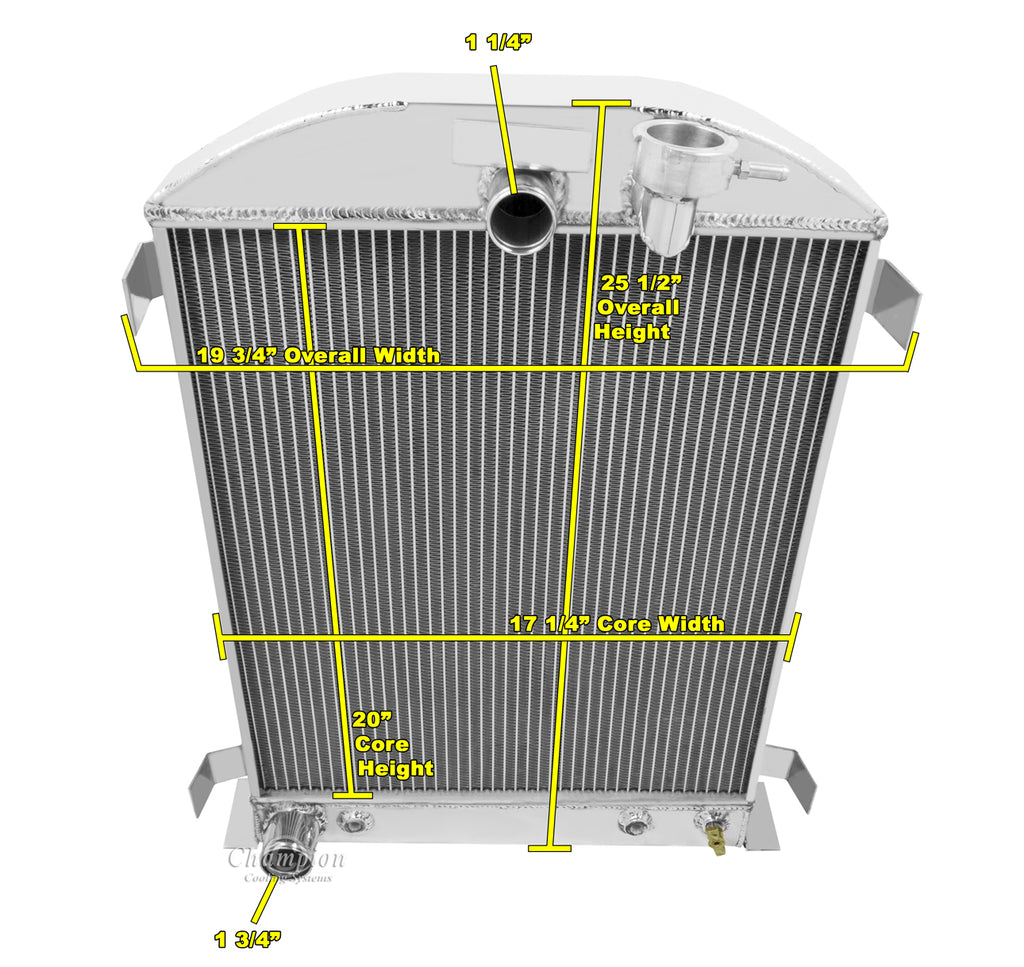

Radiator Dimensions:
Total: 19.75" wide (from lower bracket) x 25.5" tall
Core: 17.25" wide x 20" tall x 2.2" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 1" thick

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27 NPT)

When using electric fans:
One 16" electric fan recommended for this core size (sold separately)
