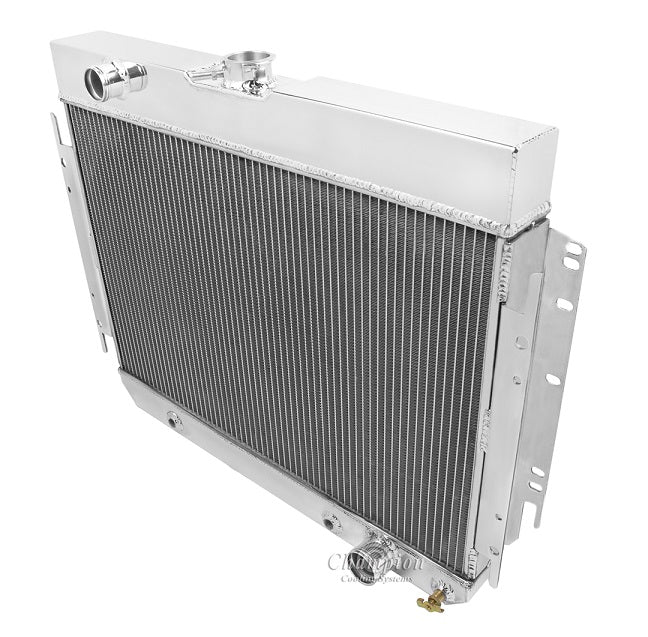

AE289-289FS16 2 Row 1" Tubes

All Aluminum Champion Radiator

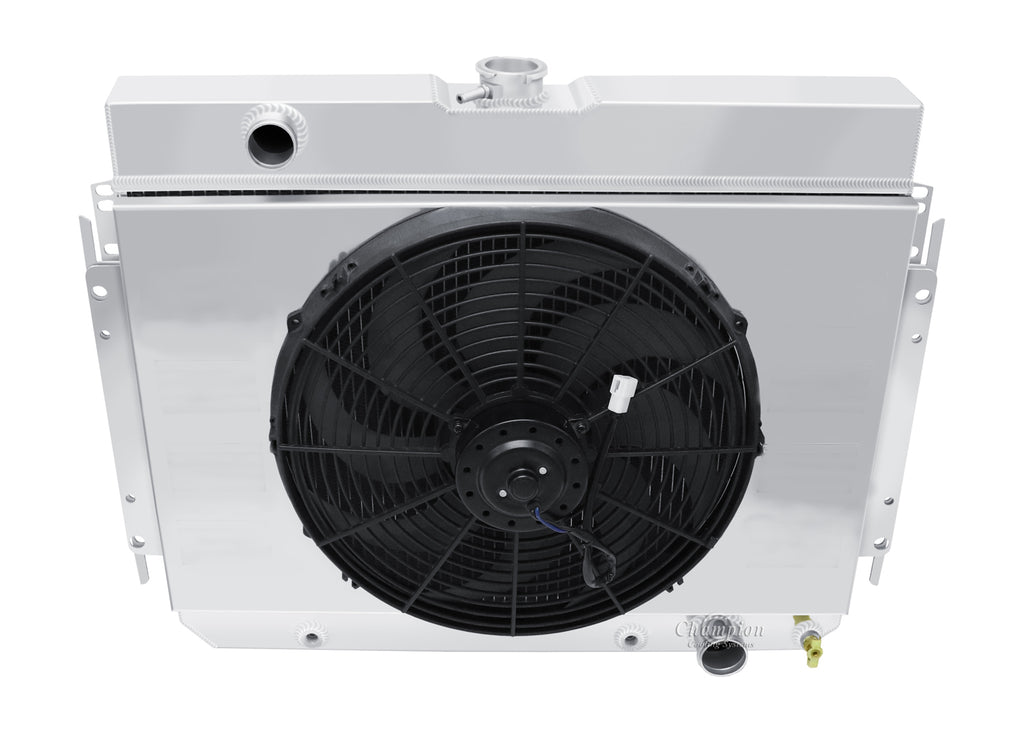

Plus Ledfoot Racing Aluminum Shroud and 16" cooling fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" Thick Tubes | Cools up to 650hp

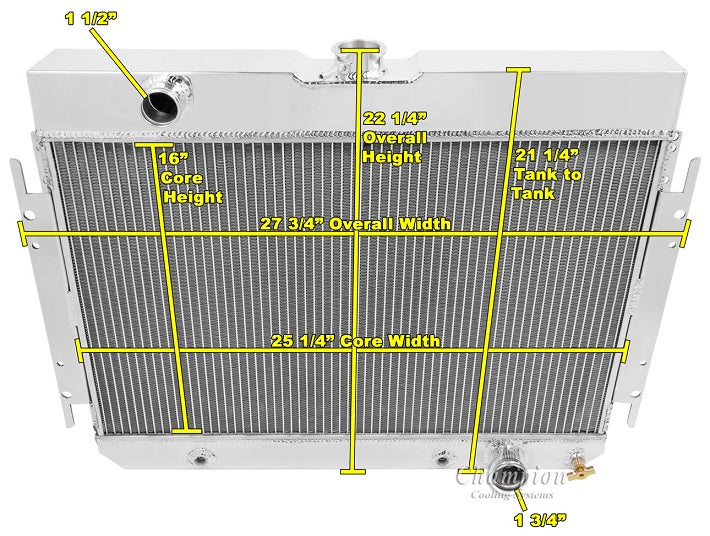

Radiator Dimensions:
Overall: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Total Thickness: 6.87", Thinner fans available

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
