AE289-289FS12SP 2 Row 1" Tubes

Champion All Aluminum Radiator

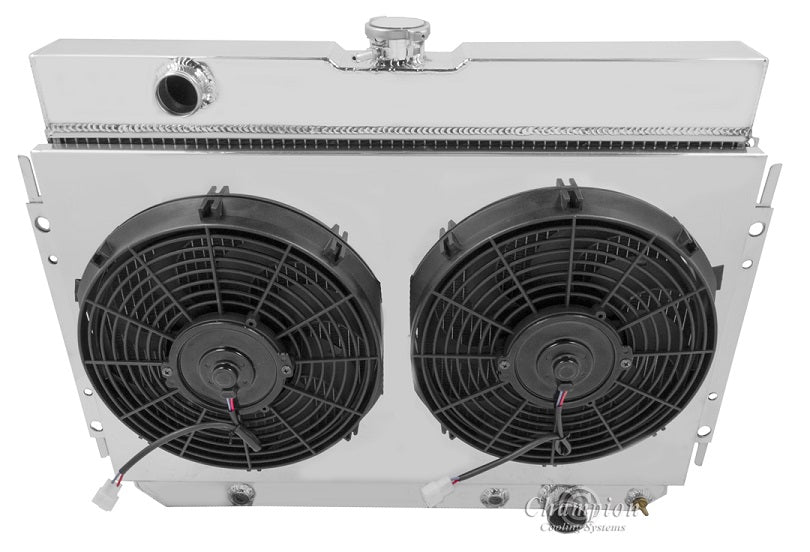

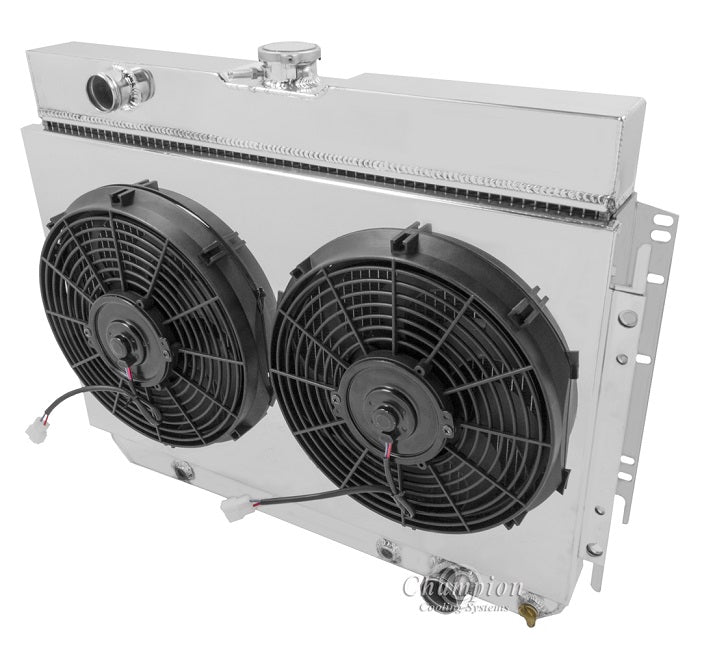

Plus Ledfoot Racing Shroud & 2-12" SPAL 1522 Fans
2-Row Core 1" tubes | Cools up to 700hp

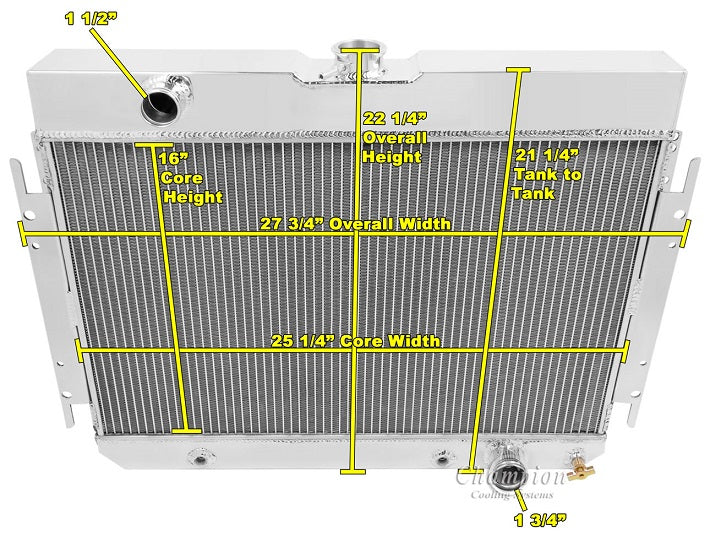

Radiator Dimensions:
Total: 21.75" tall x 28" wide (with brackets)
Core: 16.13” tall x 25” wide x 2.25" deep
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2.75” thick
Tubes: 1" thick

Total Thickness: 5.87" to back of fans, 4.63" at Center

Bracket Mounted

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Polished Champion 16 lb Radiator Cap included (Pictured Above)
