AE289 2 Row 1" Tubes

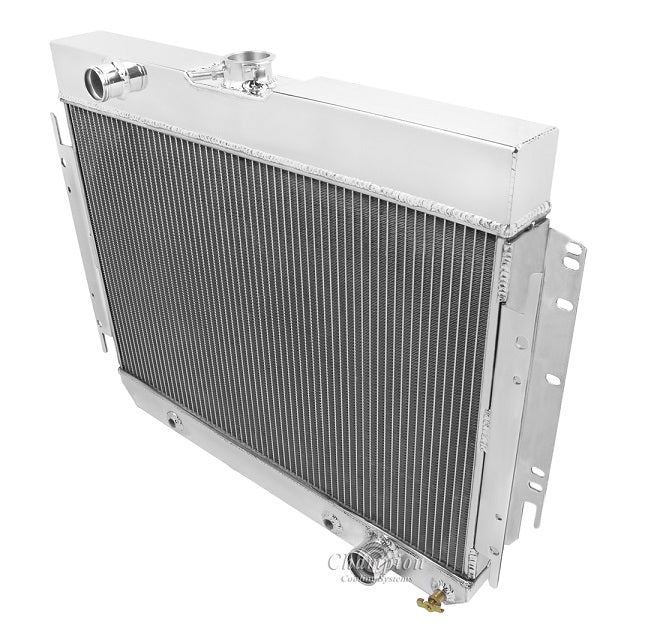

Champion All Aluminum Radiator
2-Row Core: 1" Tubes | Cools up to 650hp

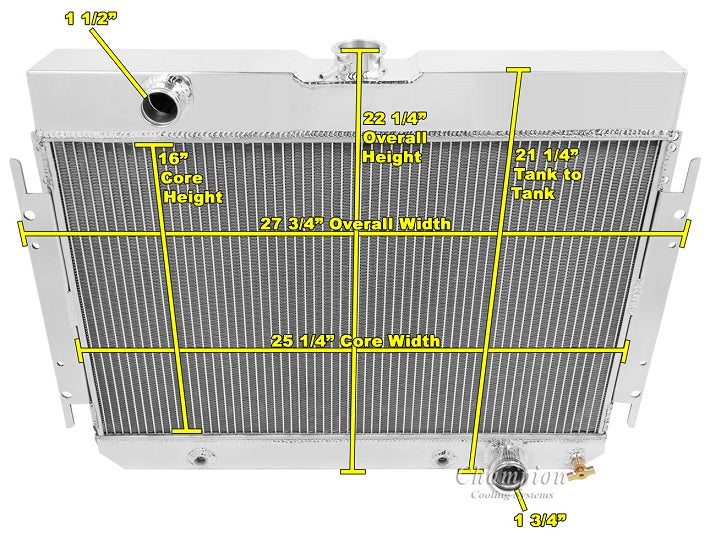

Radiator Dimensions:
Overall: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud for One 16" Electric fan or 2-12" Electric fans is also available (sold separately)

Recommended electric fans:
One 16" Electric fan or two 12" Electric fans recommended for this core size (sold separately)
