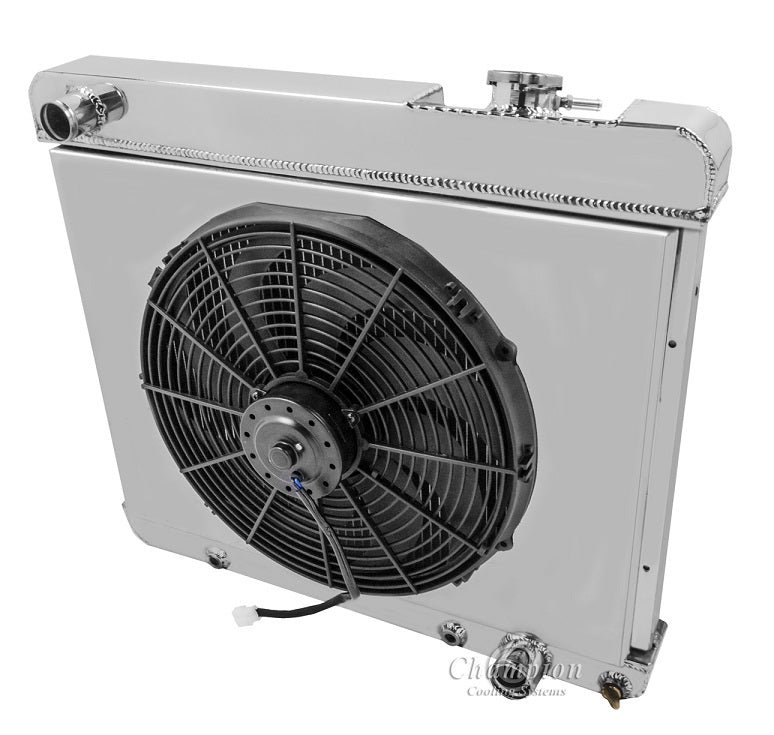

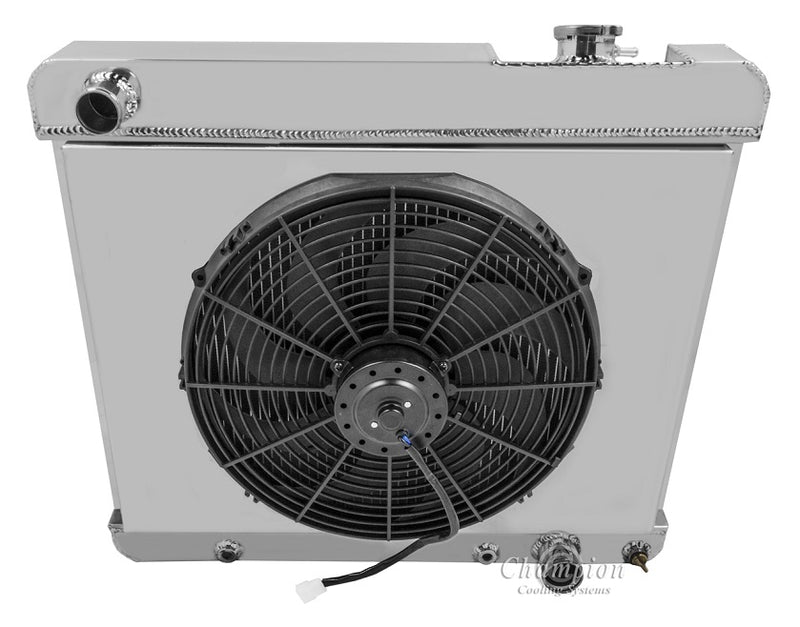

AE284-284FS16 2 Row 1" Tubes Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Fan
Note: Lower outlet is on Passenger side unlike photo
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
2-Row Core | Cools 600hp

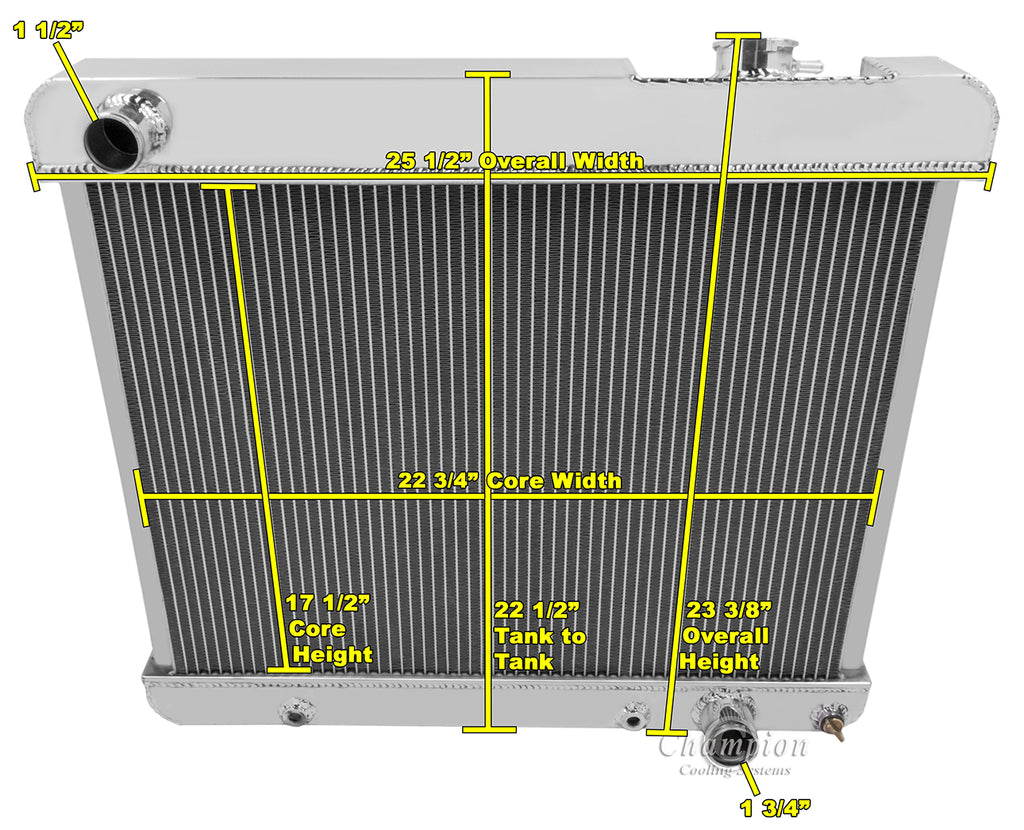

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: (top) 2.75" thick; (bottom) 2.38" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
