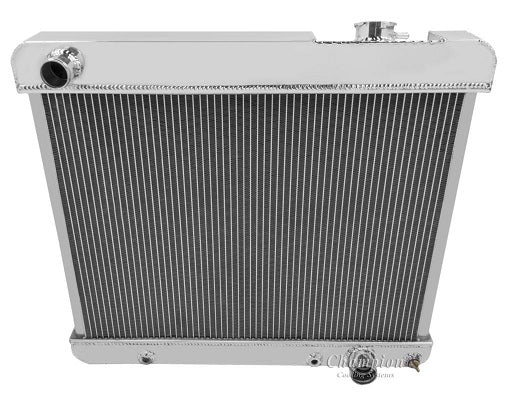

AE284 2 Row 1" Tubes

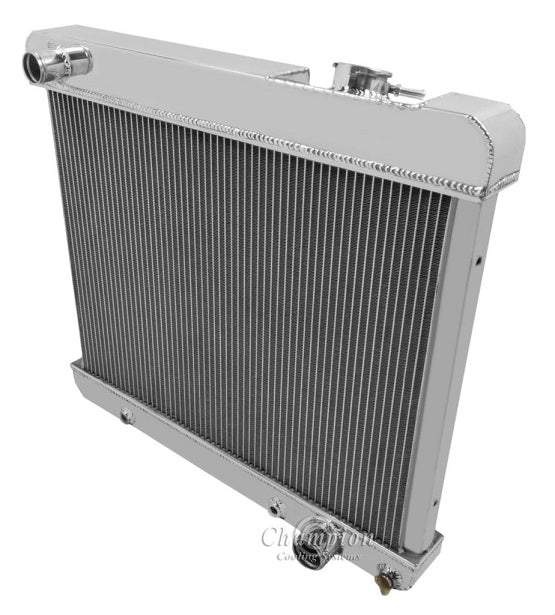

Champion All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 600hp

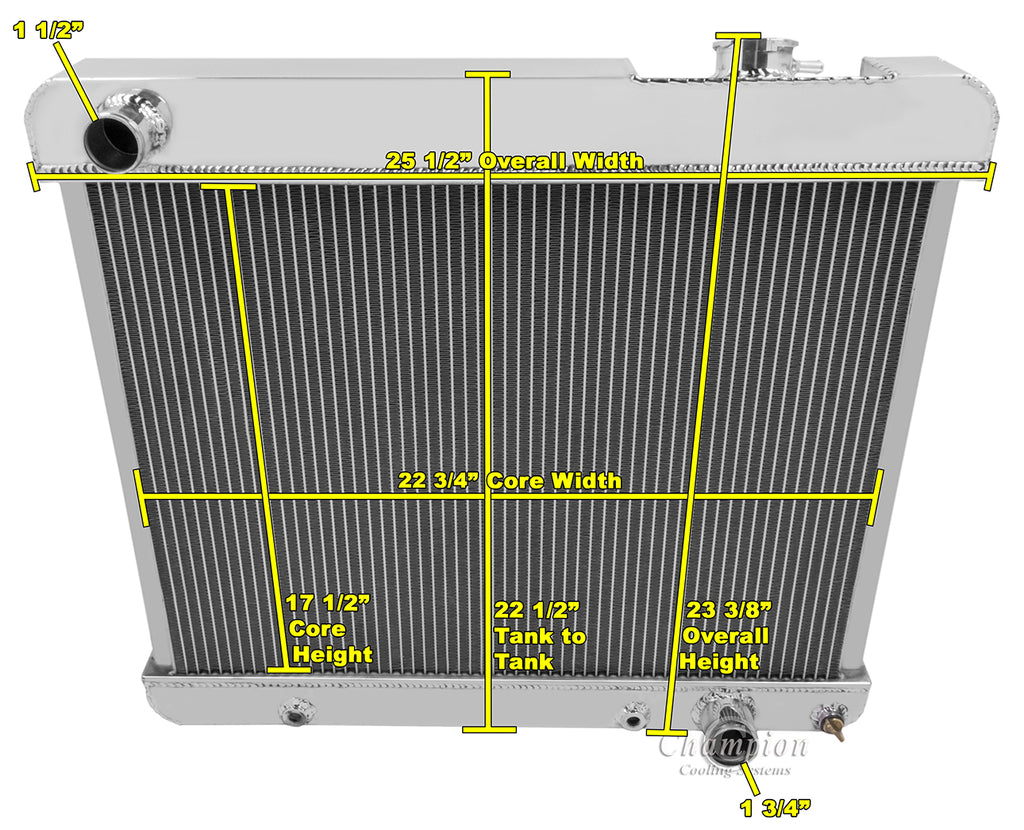

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: (top) 2.75" thick; (bottom) 2.38" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare )
Aluminum Shroud for One 16" Electric Fan available (sold separately)

When using electric fans:
Two 12" Electric fans or one 16" Electric fan recommended for this core size (sold separately)
