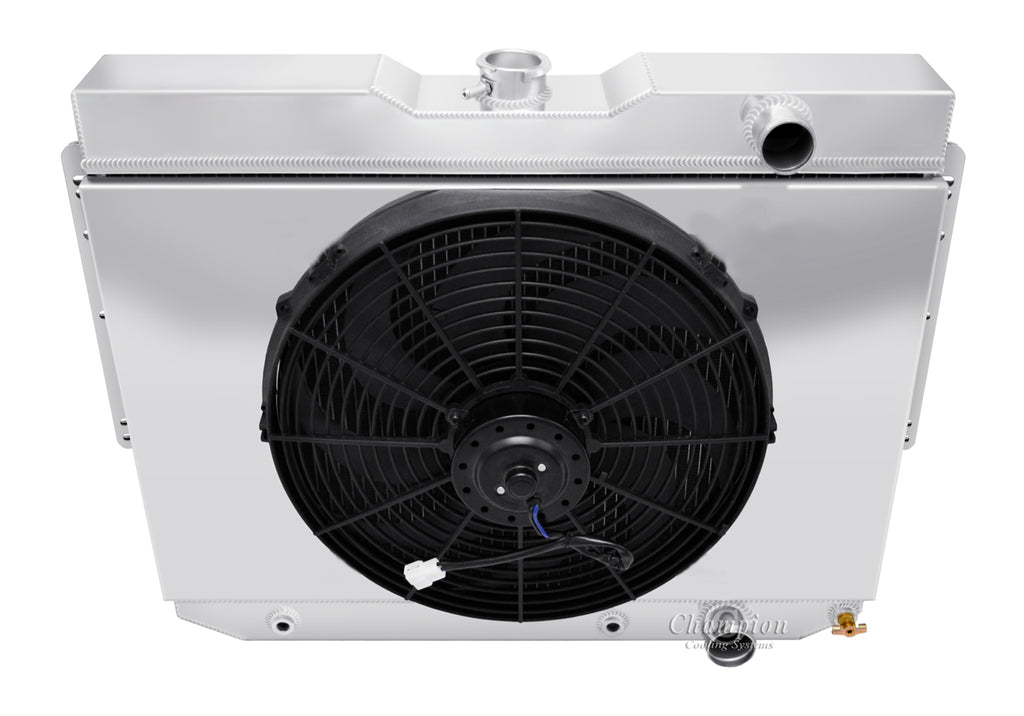

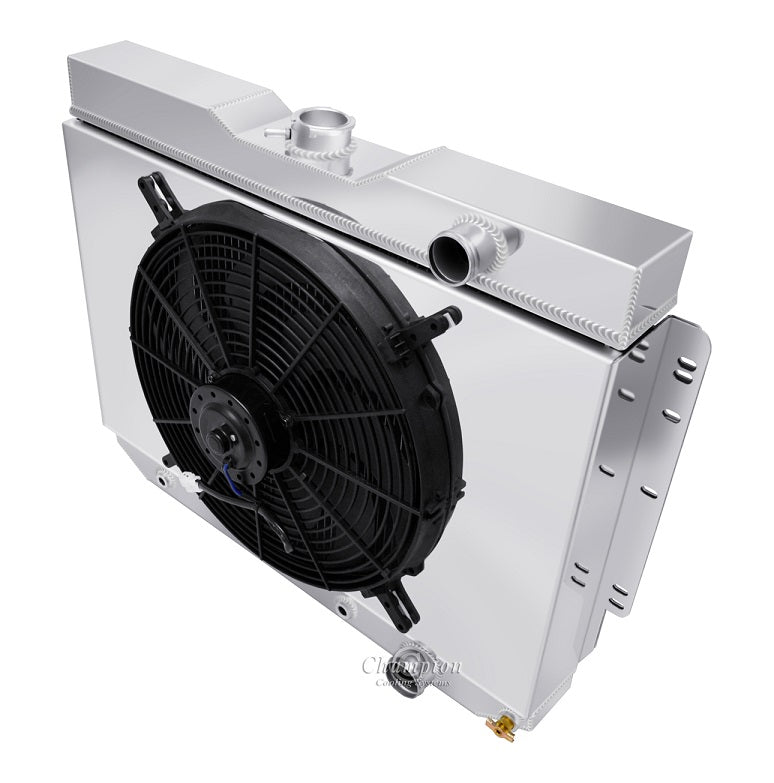

AE281-281FS16 2 Row 1" Tubes Combo

Champion Aluminum Radiator
Plus Ledfoot Racing Shroud & Pro-Series 16" Fan
2-Row Core: 1" Thick Tubes | Cools up to 600hp

Impala's sometimes need a notched lower tank to miss
the optional power steering box. Refer to AE281-PS

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 27" wide (28" including brackets)
Core: 16" tall x 24.5" wide x 2.1" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 5.25" to back of fan

Bracket Mounted

Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Polished 16 lb Radiator Cap included (Pictured Above)
