AE281 2 Row 1 Tubes

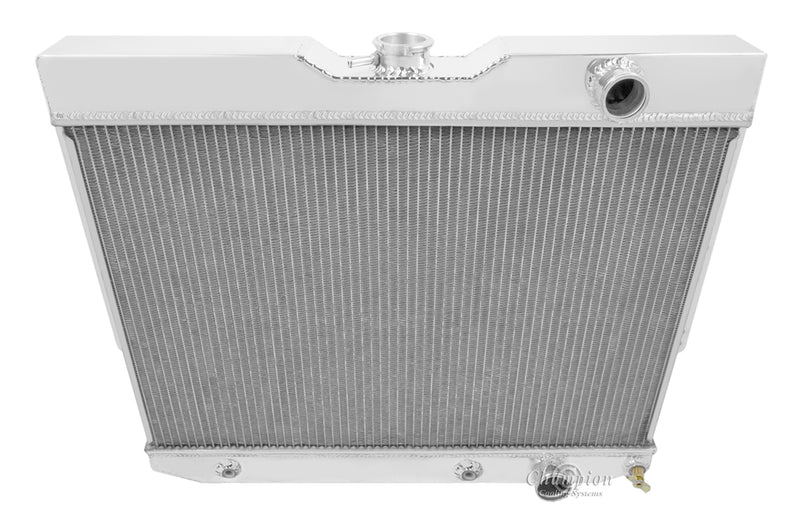

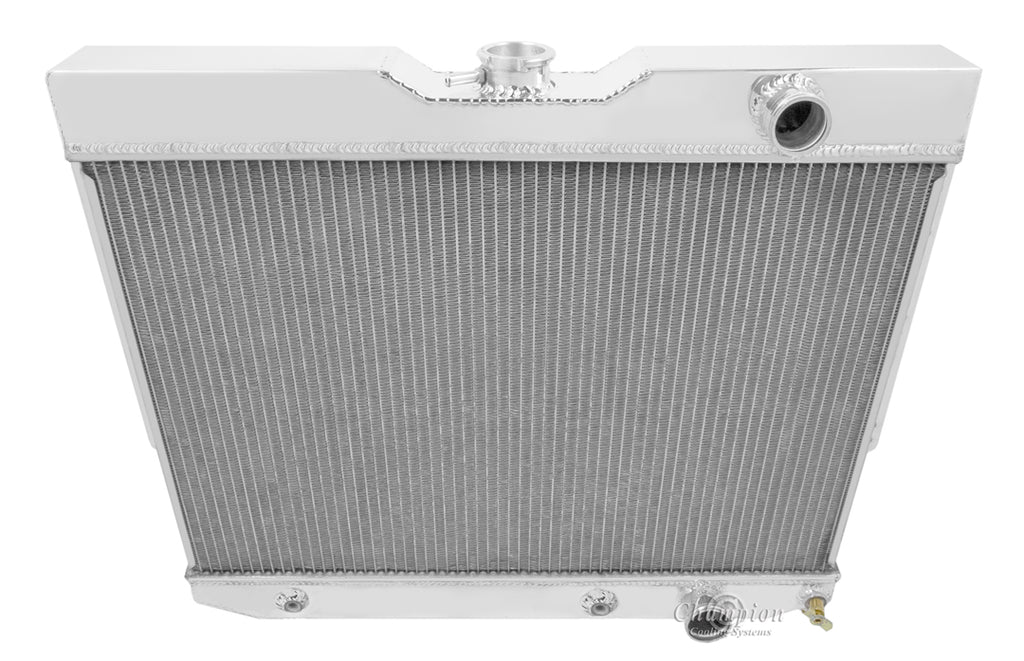

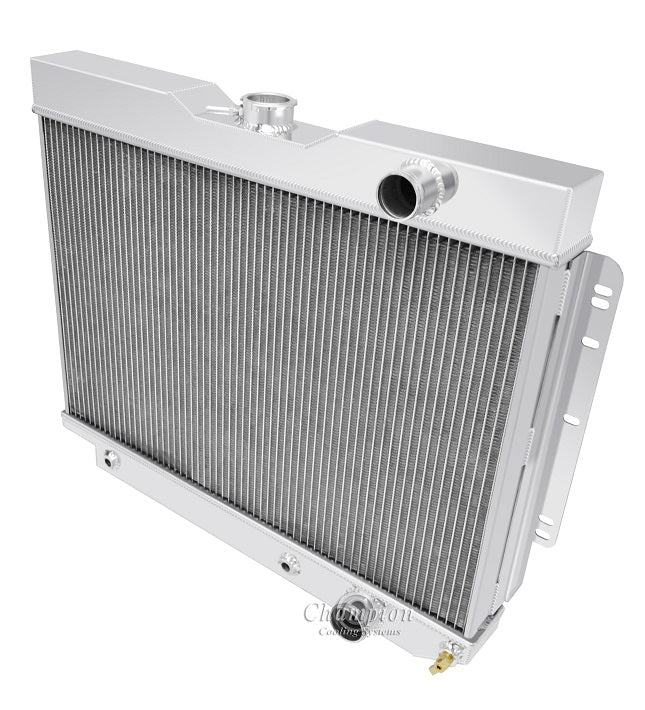

Champion All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 650hp
Impala's sometimes need a notched lower tank to miss the
optional larger steering box. Modifications are $95 extra.

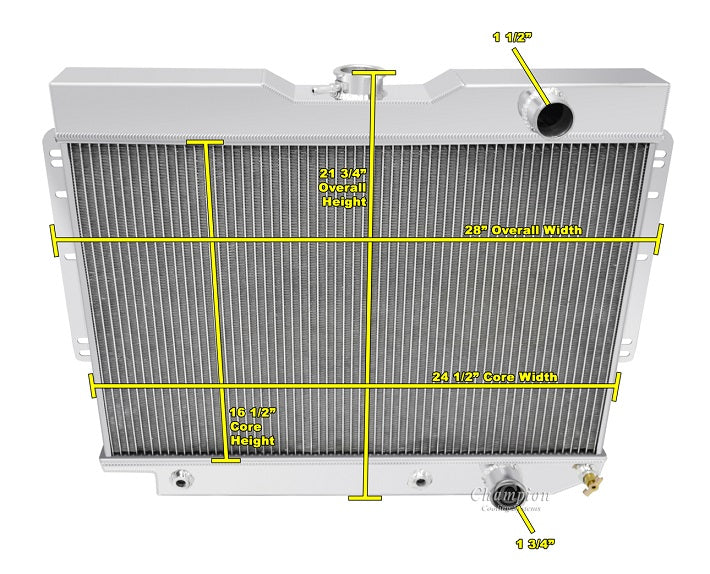

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 27" wide (28" including brackets)
Core: 16" tall x 24.5" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap Included
Aluminum Shroud is also available (sold separately)

Recommended electric fans:
One 16" or two 12" Electric Fans (sold separately)
