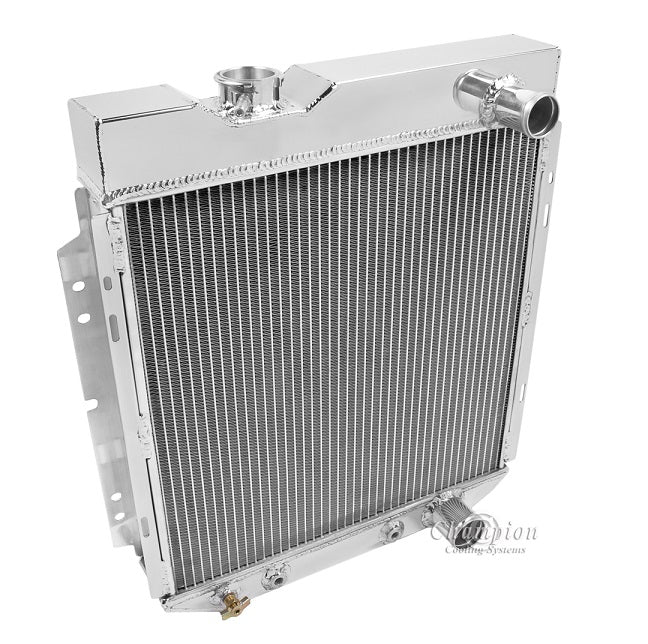

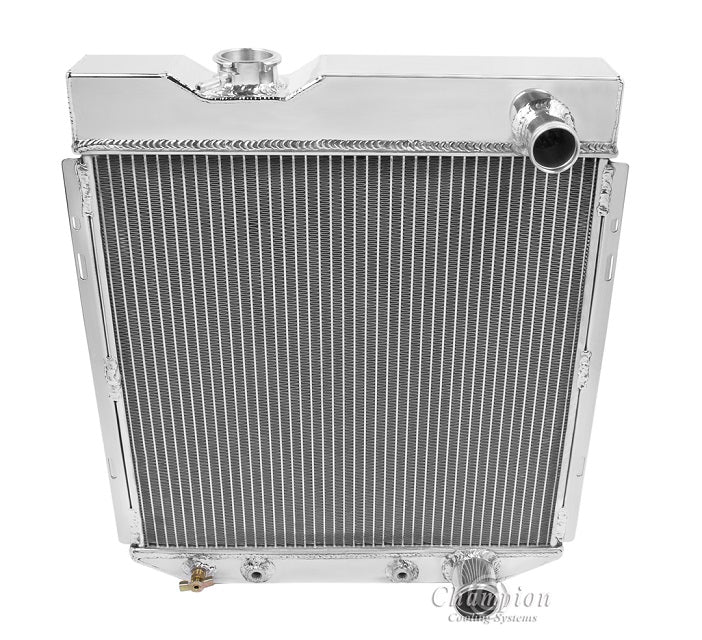

AE259 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 450hp

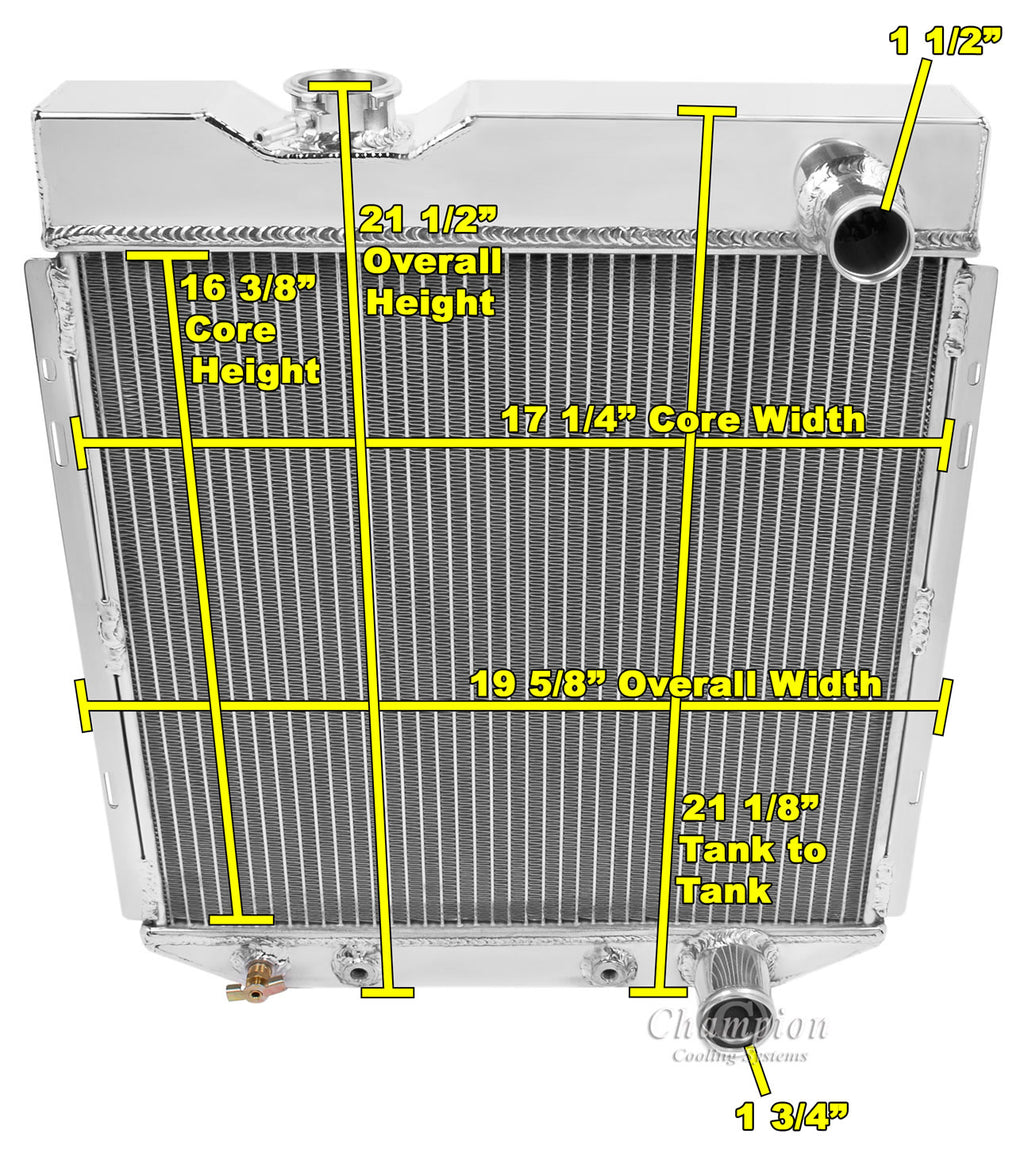

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (with brackets)
Core: 16.5" tall x 17" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75"
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Aluminum Fan Shroud for One 16" Electric Fan is also available (sold separately)

Recommended electric fans:
One 16" electric fan recommended for this core size. (sold separately)

Note: When buying our 16" fan, make sure there's room for the 3.5" Fan thickness
