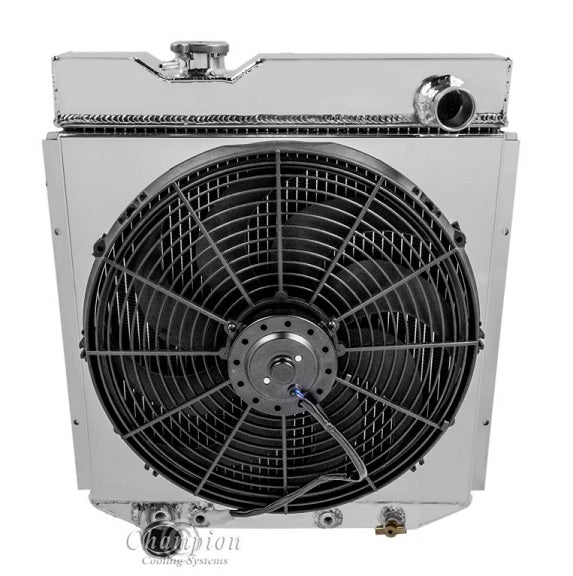

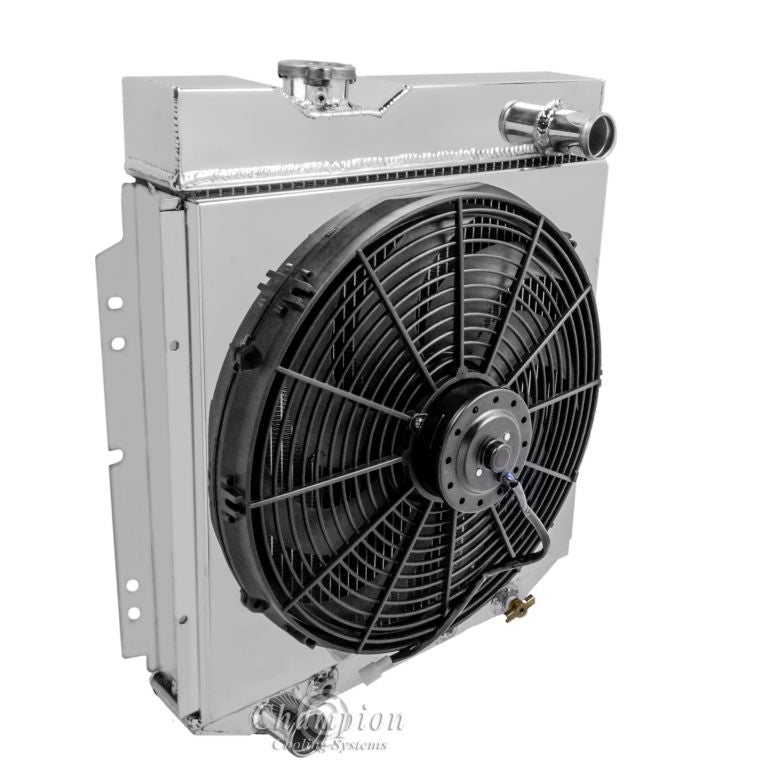

AE251-251FS16SP 2 Row 1" Tubes

Champion Aluminum Radiator Plus
Shroud & SPAL Medium Profile 16" Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core 1" tubes | Cool up to 500hp

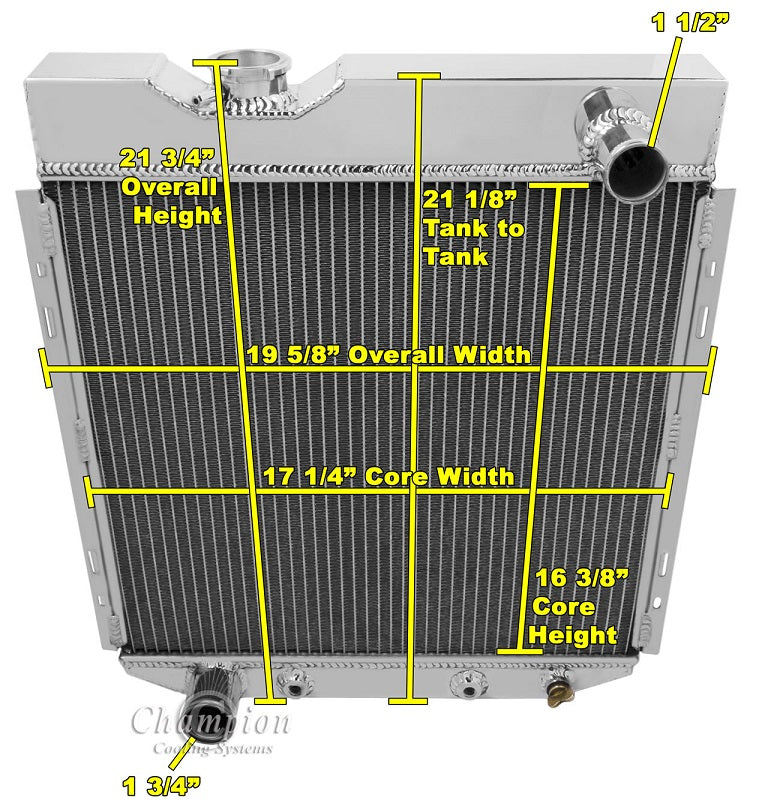

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (with brackets)
Core: 16.5" tall x 17" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 5.25" to back of fan

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/8-27NPT)
