Description

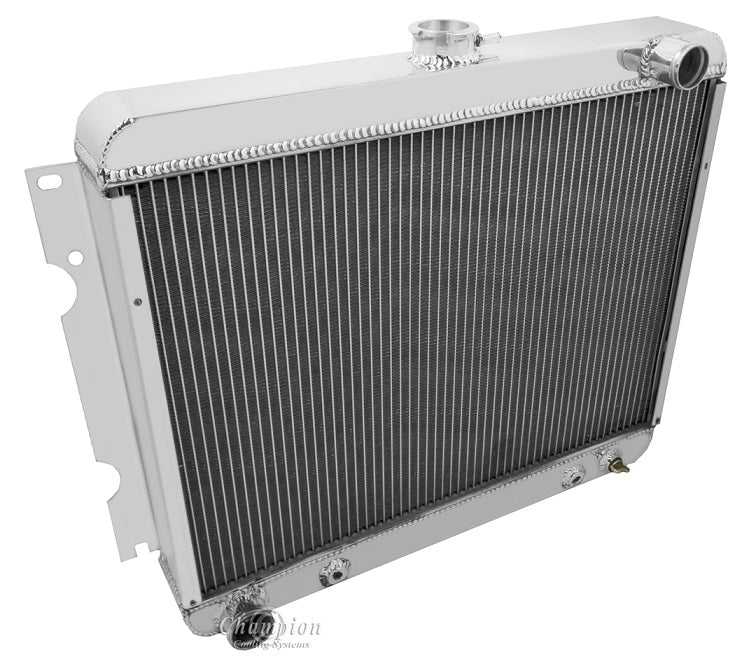

Champion All Aluminum Radiator PLUS

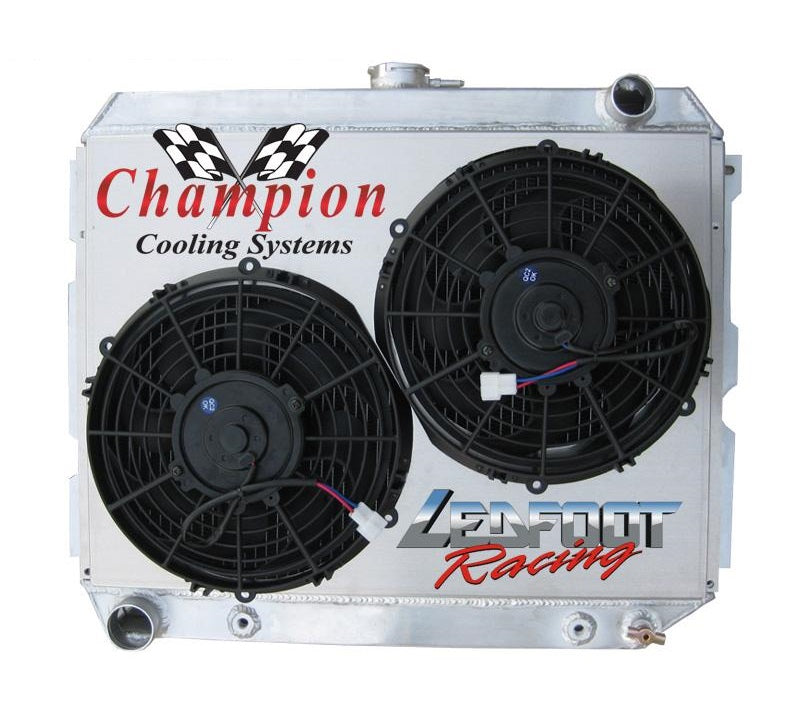

Aluminum Shroud & 2-10" SPAL-0435 Fans
2-Row Core: 1" Thick Tubes | Cools up to 600hp

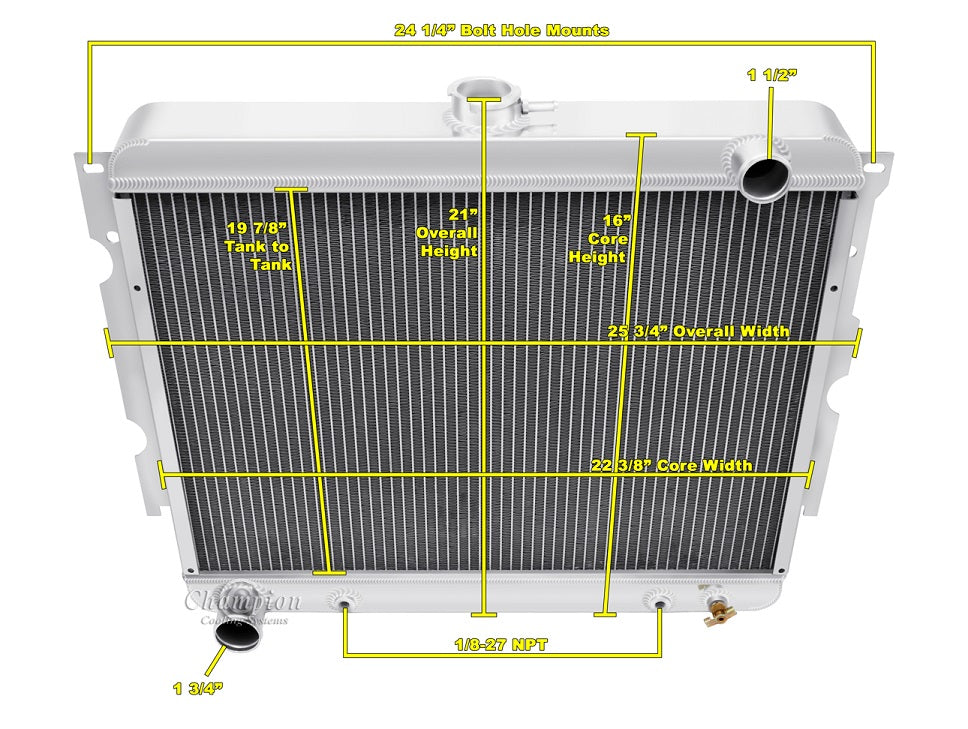

Radiator Dimensions:
Total: 20" tall (21" with cap) x 25.63" wide (with brackets)
Core: 16" tall x 22.38" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 5.5" (4.25" between fan motors)
Bracket Mounted
Note: This radiator is slightly shorter than OEM (to fit multiple mopar cars)
No OEM Shroud support
Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/8- 27NPT)
6.25" Thick to back of fans, 5.25" in the center
Aluminum Shroud & 2-10" SPAL-0435 Fans
2-Row Core: 1" Thick Tubes | Cools up to 600hp
Radiator Dimensions:
Total: 20" tall (21" with cap) x 25.63" wide (with brackets)
Core: 16" tall x 22.38" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 5.5" (4.25" between fan motors)
Bracket Mounted
Note: This radiator is slightly shorter than OEM (to fit multiple mopar cars)
No OEM Shroud support
Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/8- 27NPT)
6.25" Thick to back of fans, 5.25" in the center
