Description

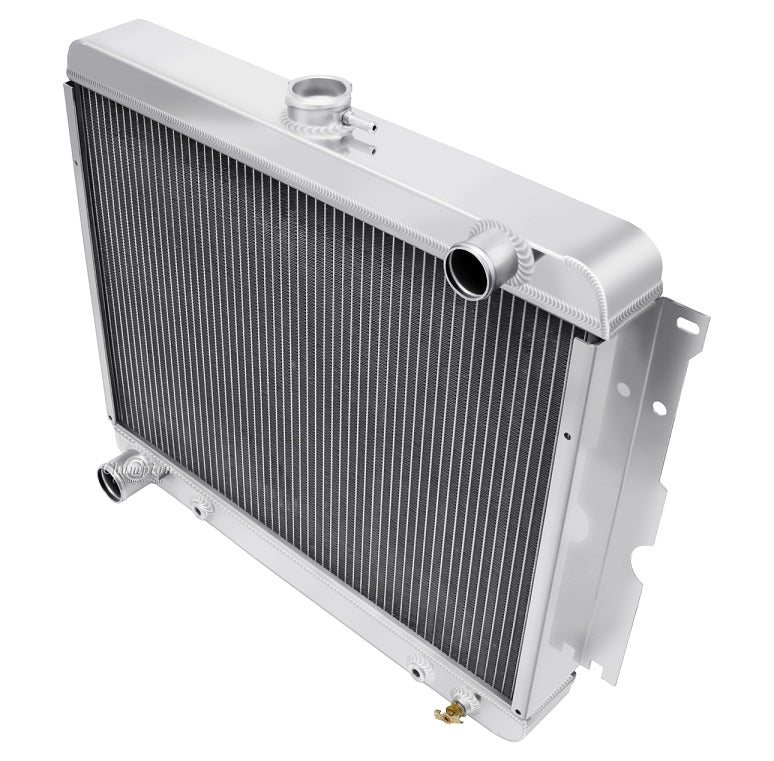

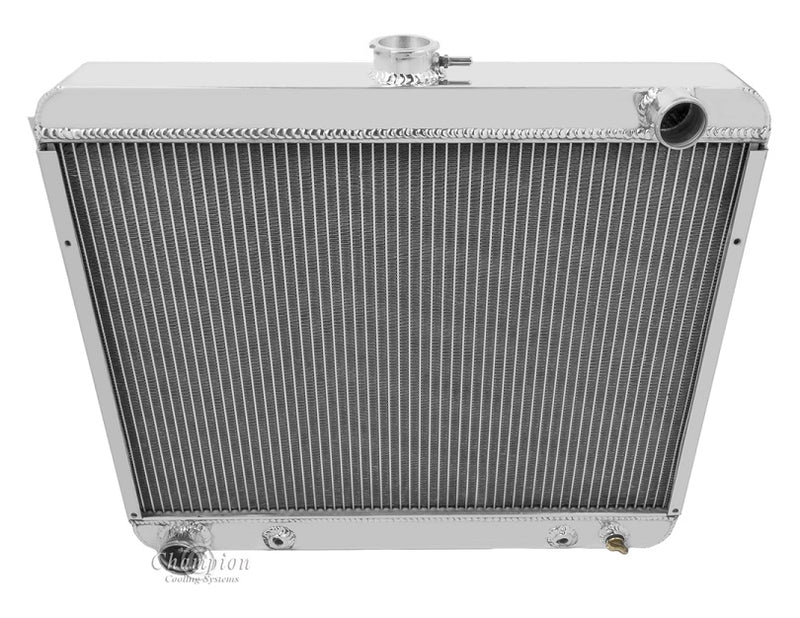

Champion All Aluminum Radiator
2-Row Core: 1" Thick Tubes | 600hp Rating

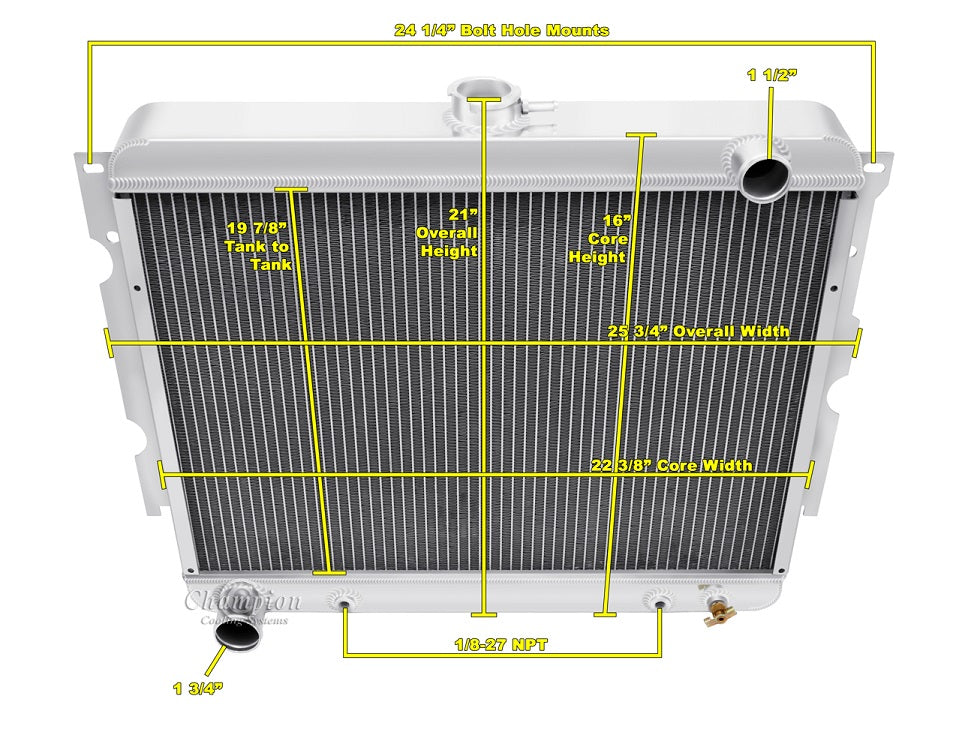

Radiator Dimensions:
Total: 20" tall (21" with cap) x 25.63" wide (with brackets)
Core: 16" tall x 22.38" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 1" thick
Bracket Mounted
(No OEM Shroud support)
Radiator Cap included
Transmission Cooler included (1/8- 27NPT)
Aluminum shroud for 2-10" Electric Fans is also available (sold separately)
Note: This radiator is shorter than OEM (to fit multiple mopar cars)
Recommended Electric Fans:
Two 10" Electric Cooling Fans (sold separately)
2-Row Core: 1" Thick Tubes | 600hp Rating
Radiator Dimensions:
Total: 20" tall (21" with cap) x 25.63" wide (with brackets)
Core: 16" tall x 22.38" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 1" thick
Bracket Mounted
(No OEM Shroud support)
Radiator Cap included
Transmission Cooler included (1/8- 27NPT)
Aluminum shroud for 2-10" Electric Fans is also available (sold separately)
Note: This radiator is shorter than OEM (to fit multiple mopar cars)
Recommended Electric Fans:
Two 10" Electric Cooling Fans (sold separately)
