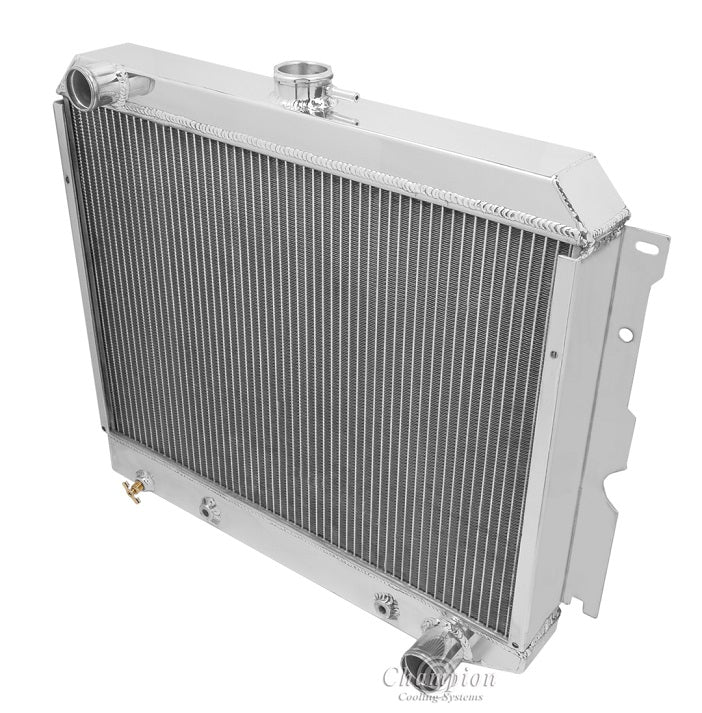

AE2374-2374FS10SP 2 Row 1" Tubes

Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
Plus 2-10" SPAL-0435 Fans
2-Row Core; 1" Tubes | Cools up to 550hp

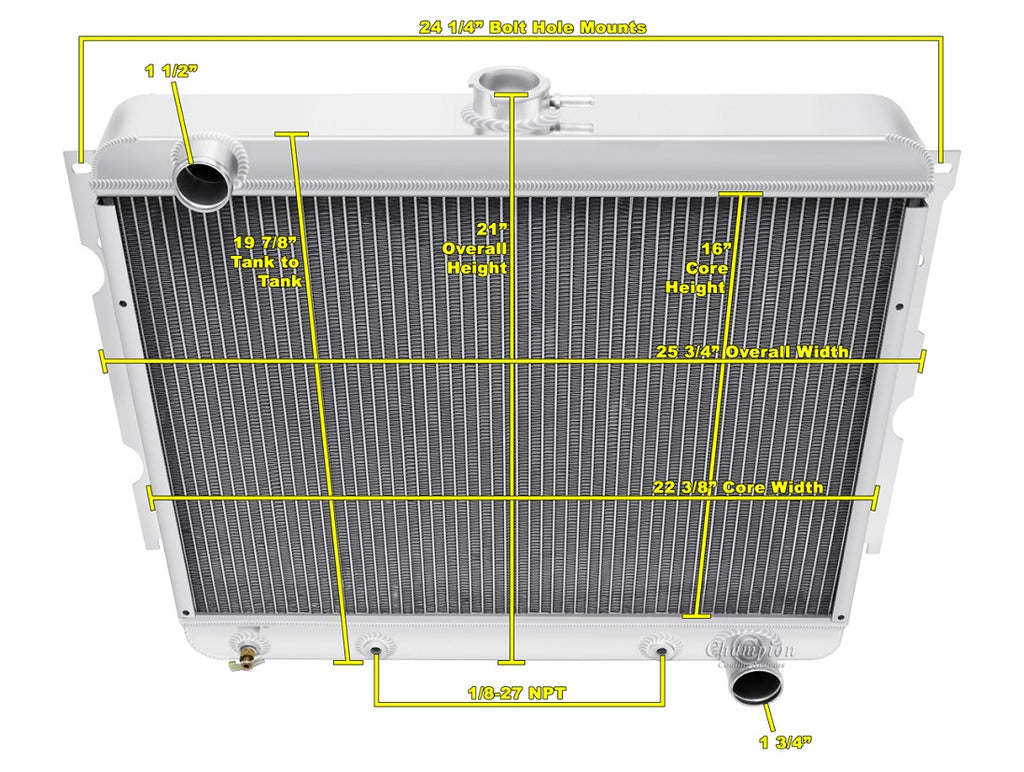

AE2374 Radiator Dimensions:
Total: 21.13" tall (21" with Cap) x 25.75" (with brackets)
Core: 15.88" tall x 22.38" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 6.25" (5.25" between fan motors)

Bracket Mounted

Polished 16 lb Radiator Cap included
Transmission Cooler included (1/8- 27NPT)
