Description
Champion All Aluminum Radiator
2-Row Core, 1" Tubes | Cools up to 550hp

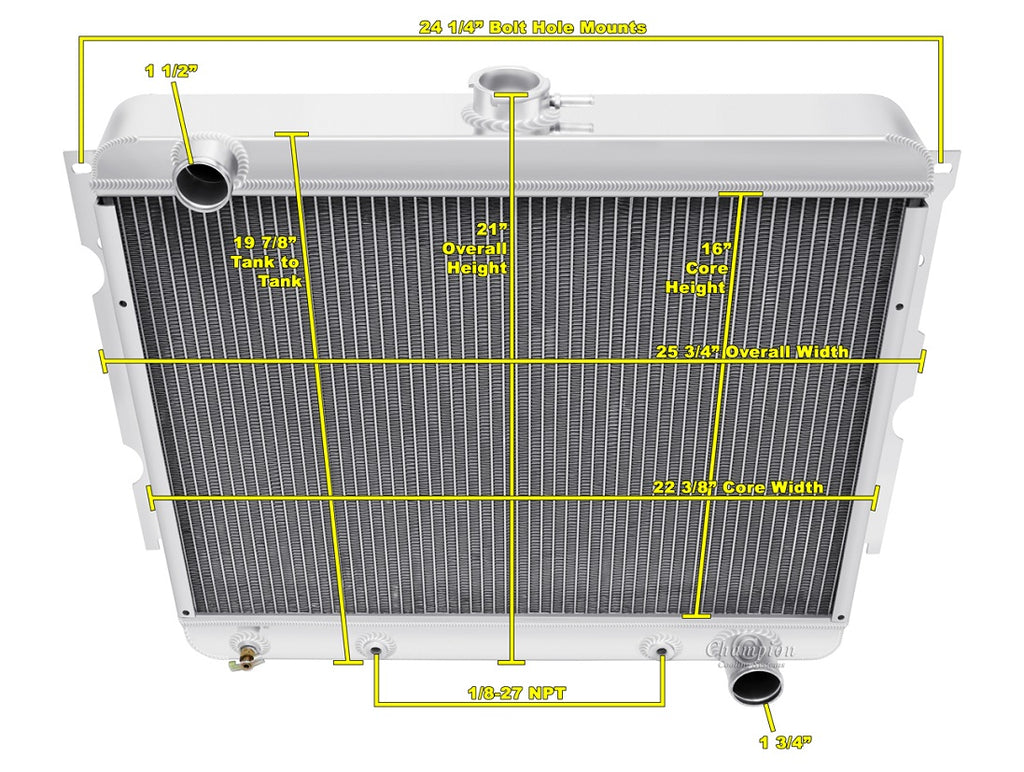

Radiator Dimensions:
Total: 20" (21" with cap) x 25.75" (with brackets)
Core: 16" tall x 22.38" wide x 2.25" thick
Inlet: 1.5" driver side (off center)
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 1" thick
Bracket Mounted
(No OEM Shroud support)
Radiator Cap included
Transmission Cooler included (1/8- 27NPT)
Aluminum Fan Shroud available (sold separately)
Note: This radiator is shorter than OEM (to fit multiple mopar cars)
Recommended Fans:
Two 10" or one 16" Electric Cooling Fan (sold separately)
2-Row Core, 1" Tubes | Cools up to 550hp
Radiator Dimensions:
Total: 20" (21" with cap) x 25.75" (with brackets)
Core: 16" tall x 22.38" wide x 2.25" thick
Inlet: 1.5" driver side (off center)
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 1" thick
Bracket Mounted
(No OEM Shroud support)
Radiator Cap included
Transmission Cooler included (1/8- 27NPT)
Aluminum Fan Shroud available (sold separately)
Note: This radiator is shorter than OEM (to fit multiple mopar cars)
Recommended Fans:
Two 10" or one 16" Electric Cooling Fan (sold separately)
