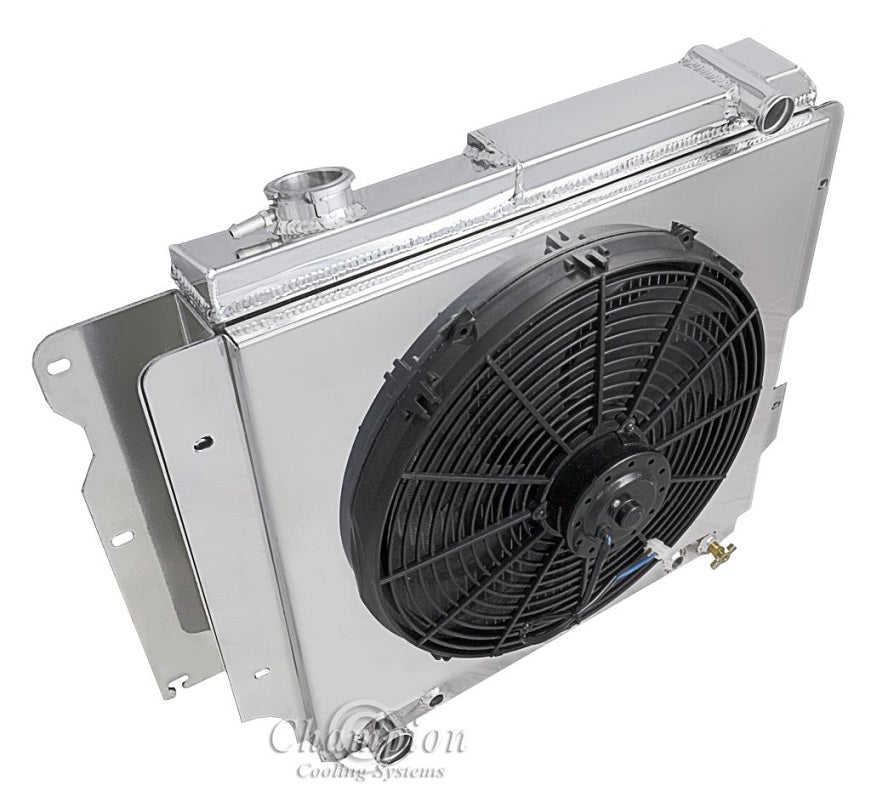

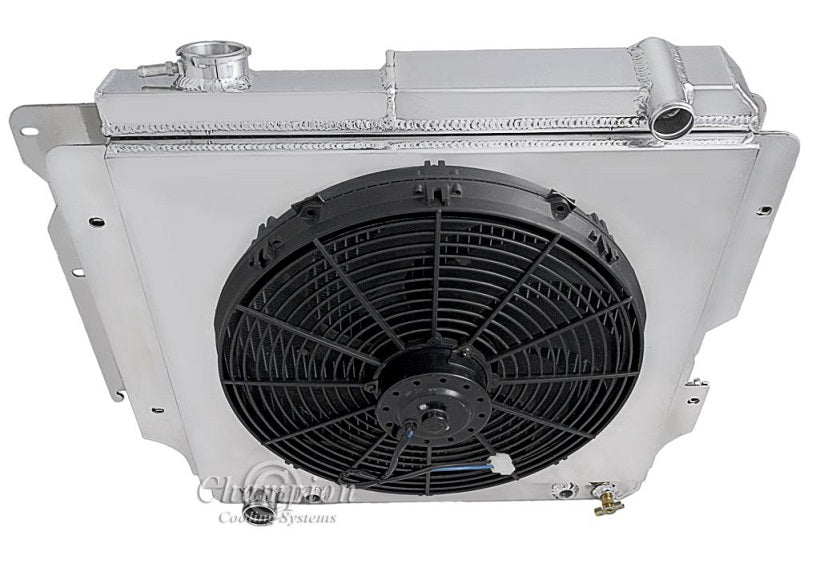

AE2101-2101FS16SP 2 Row 1" Tubes

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud and 16" SPAL Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core: 1" Thick Tubes | Cools up to 550hp
($20 Combo Discount)

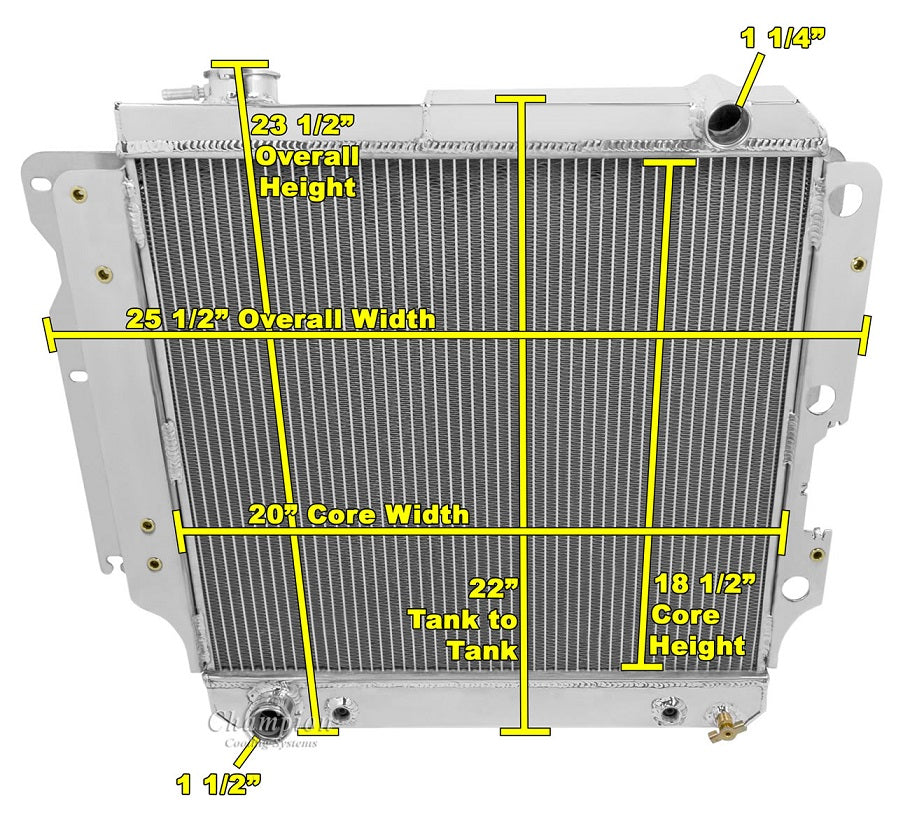

Radiator Dimensions:
Total: 23.5" tall x 25.5" wide (including brackets)
Core: 18.5" tall x 20" wide x 2.25" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" to back of fan

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (M16-1.5)
