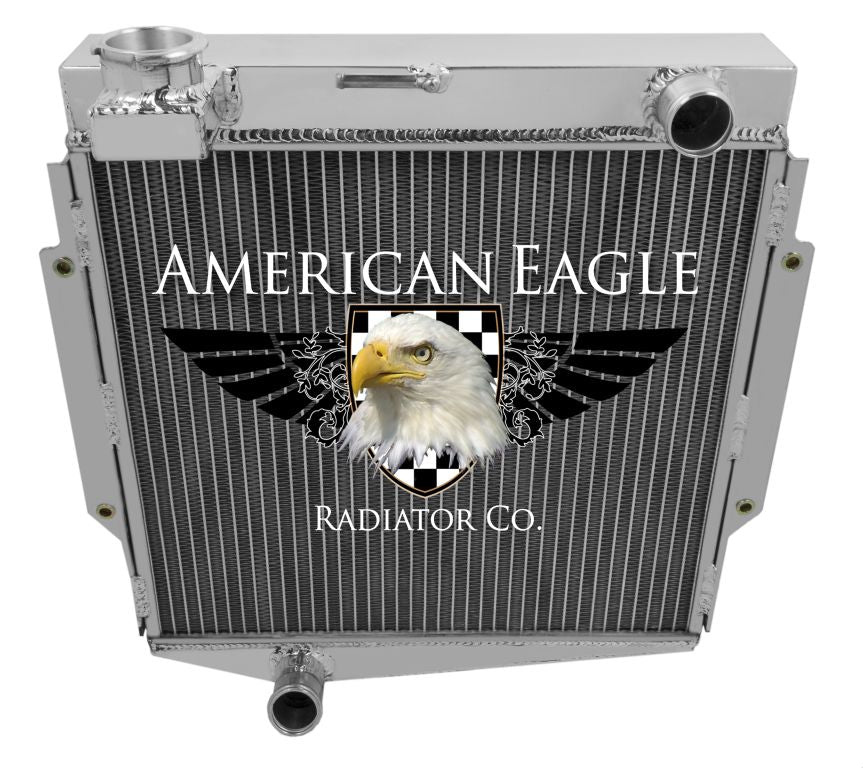

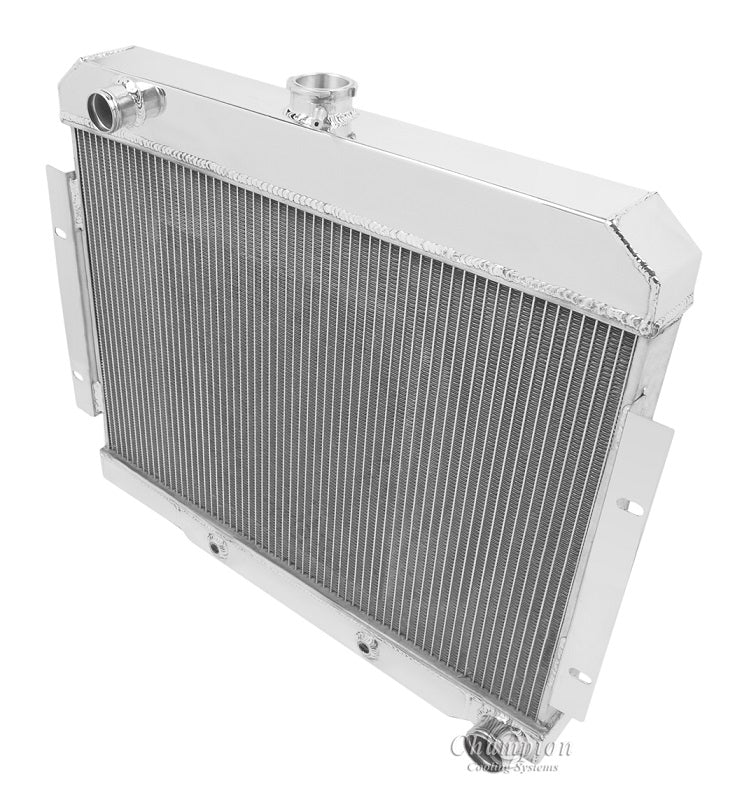

AE2000 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core 1" Thick Tubes | Cools up to 350hp

Radiator Dimensions:
Total: 19.75" tall (with cap) x 18.5" wide (with brackets)
Core: 14.1" tall x 15.5" wide x 2.25" thick
Inlet: 1.38" passenger side
Outlet: 1.38” driver side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

16lb. Radiator Cap included
