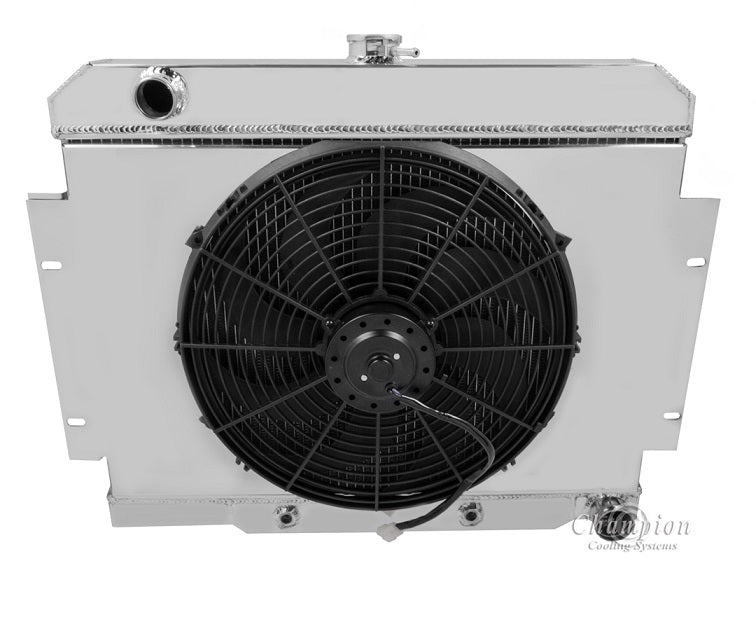

AE1919-1919FS16 2 Row 1" Tubes

All Aluminum Champion Radiator PLUS
Shroud and 16" Pro-Series Fan

2 Row Core 1" Tubes | Cools up to 600hp
Chevy Inlet and outlet set up

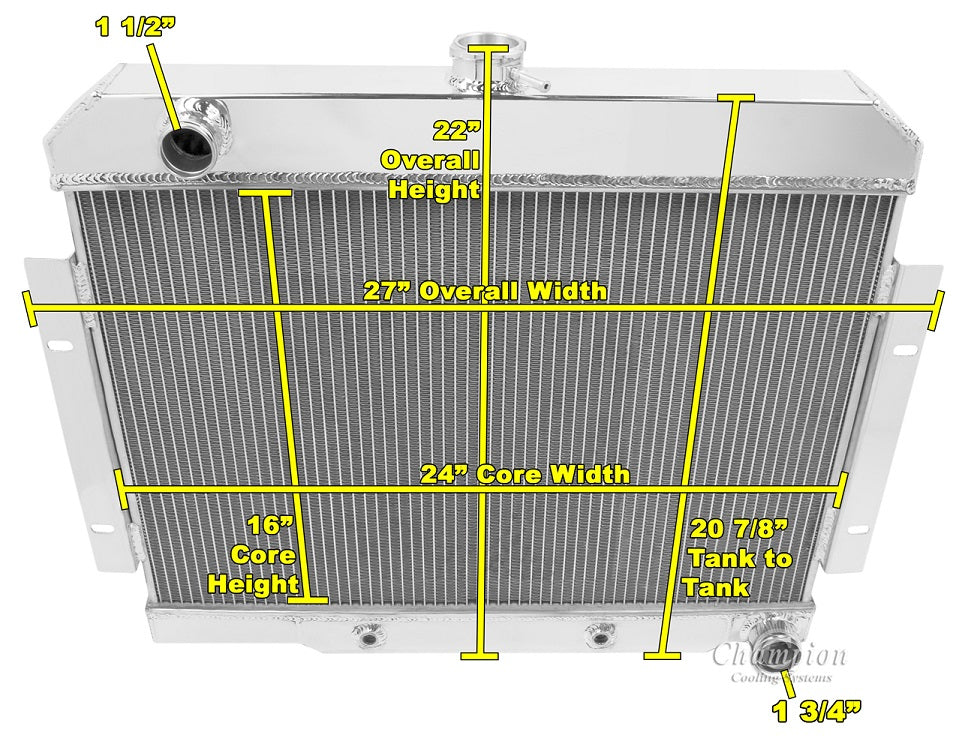

Radiator Dimensions:
Total: 22" tall x 27" wide
Core: 16" tall x 22.75" wide x 2.13" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver's side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 5.75"

Bracket Mounted

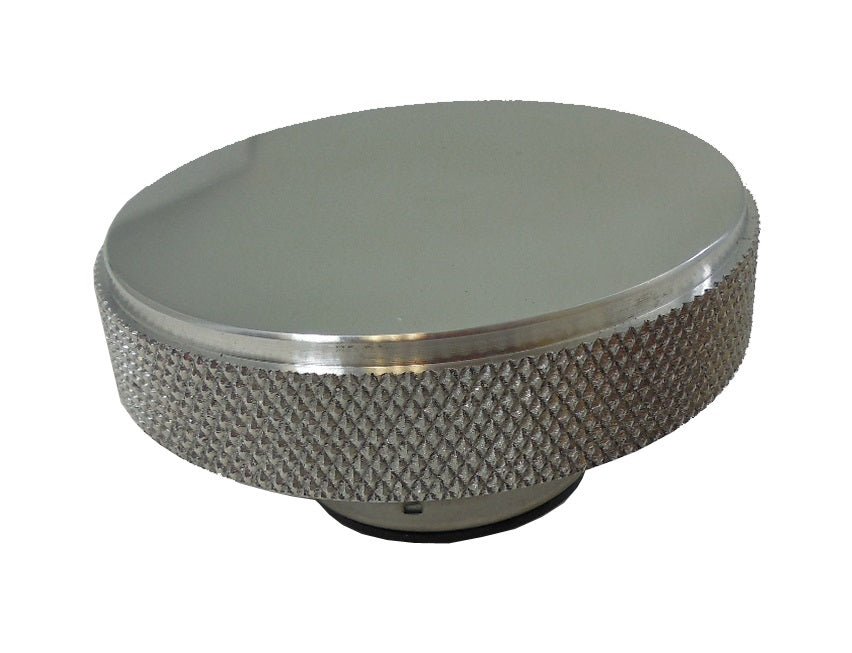

Polished 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/2-20 Straight Thread, inverted flare)
