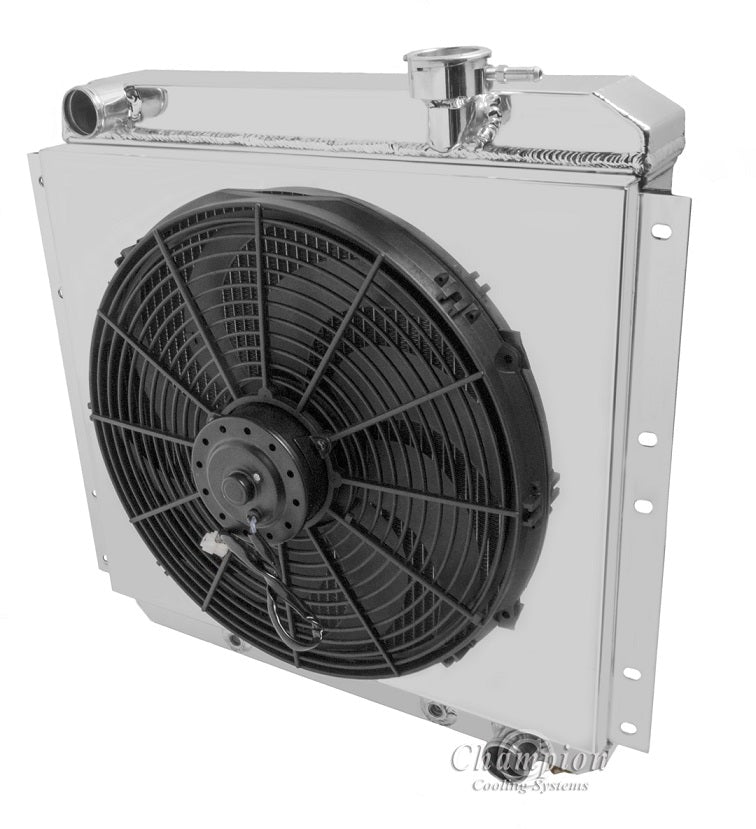

AE180-180FS16 2 Row 1" Tubes

All Aluminum Champion Radiator PLUS

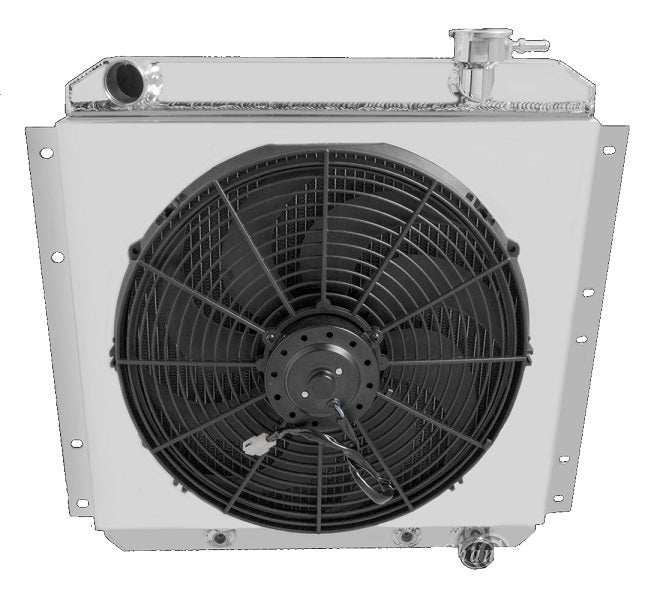

Aluminum Shroud and 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core 1" Tubes | Cools up to 500hp

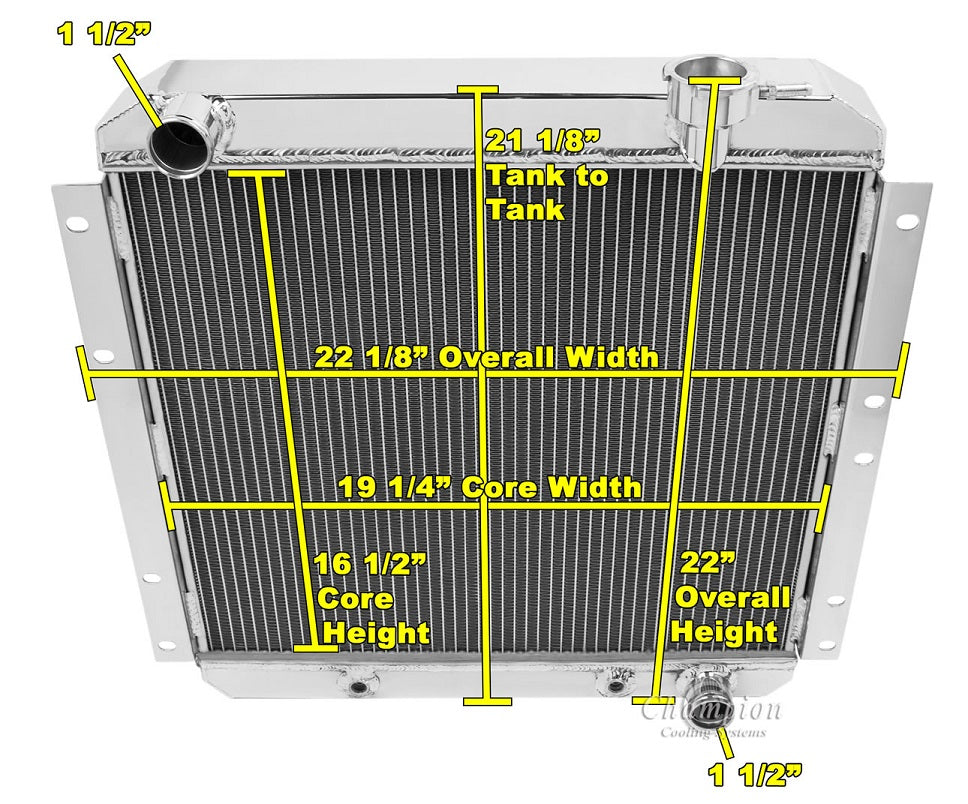

Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 2.13" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted

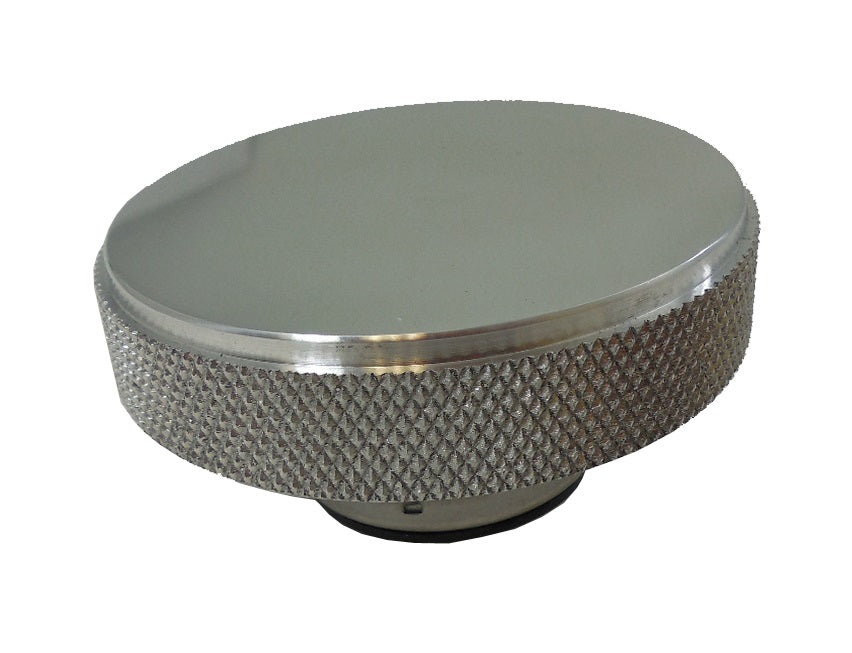

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
