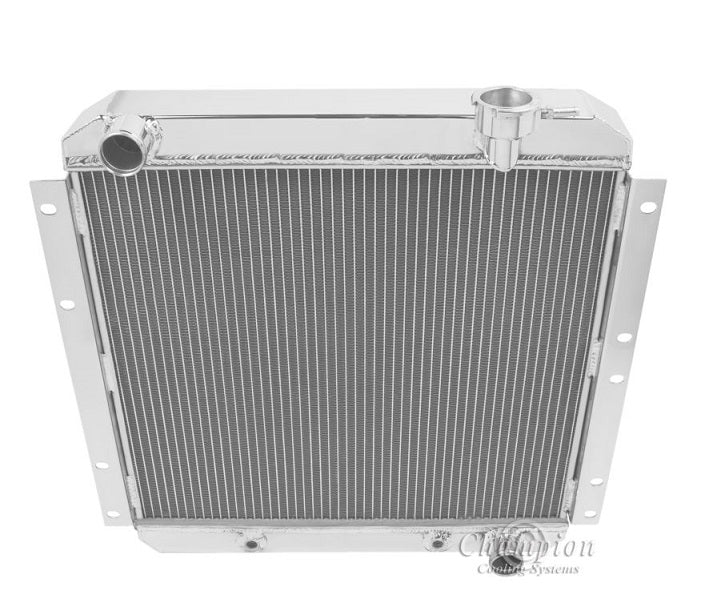

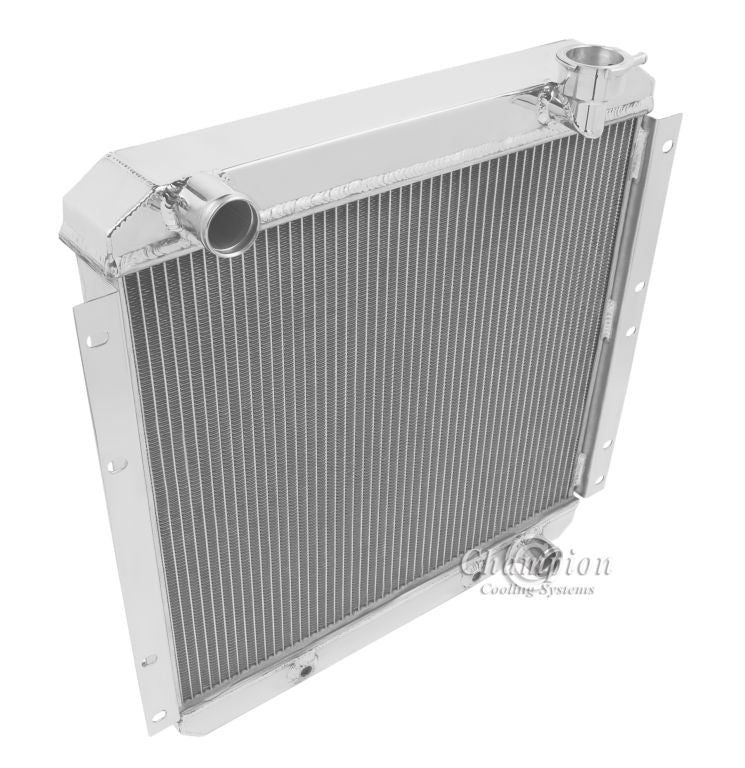

AE180 2 Row 1" Tubes

All Aluminum Champion Radiator
2-Row Core 1" Tubes | Cools up to 450hp

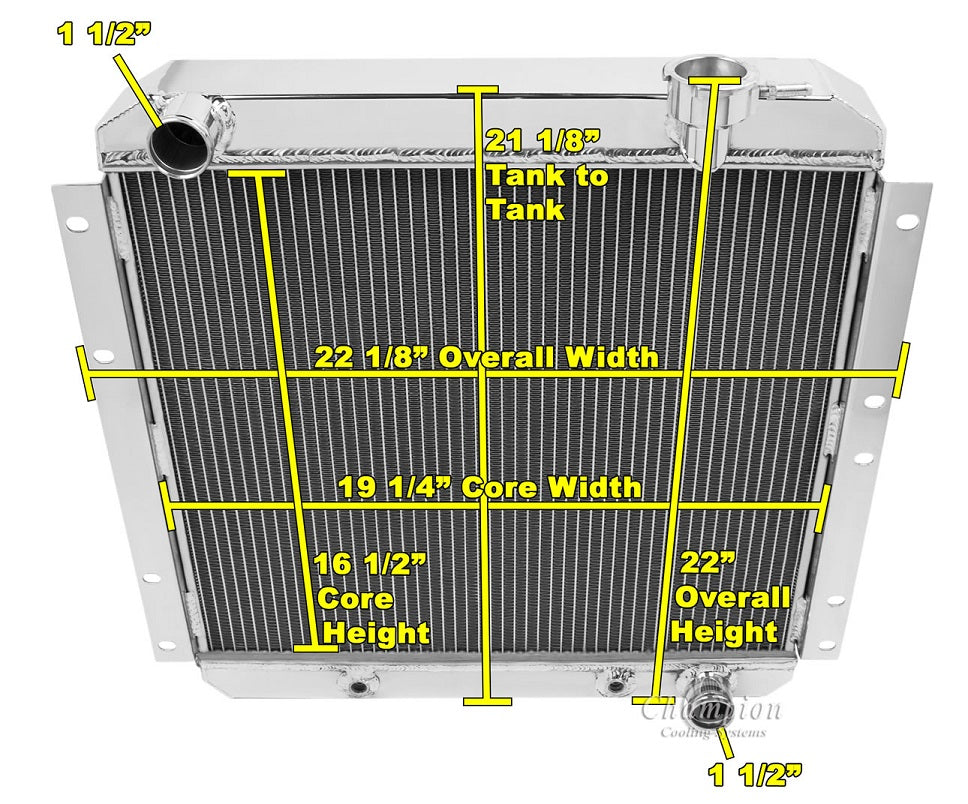

Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 2.13" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted
(core support not included)

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

Recommended Fans:
16" Electric Cooling Fan (sold separately)
