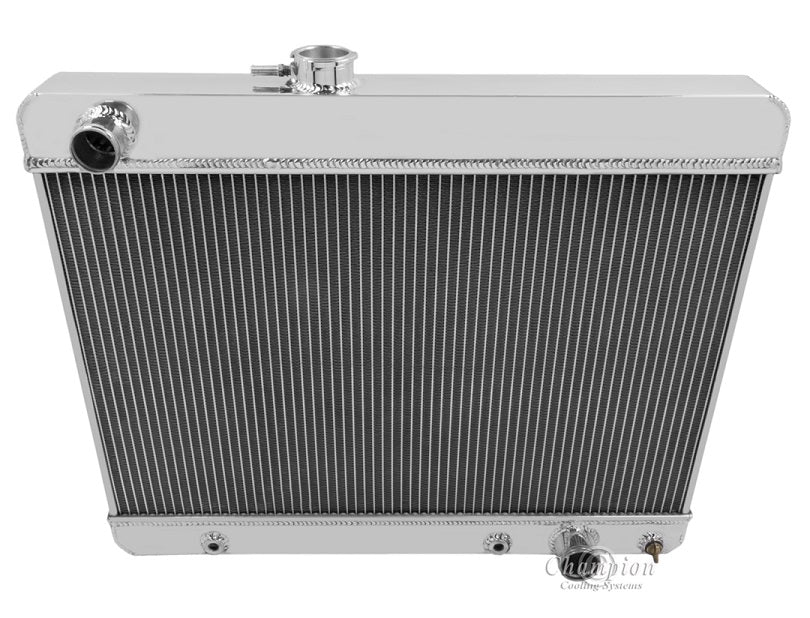

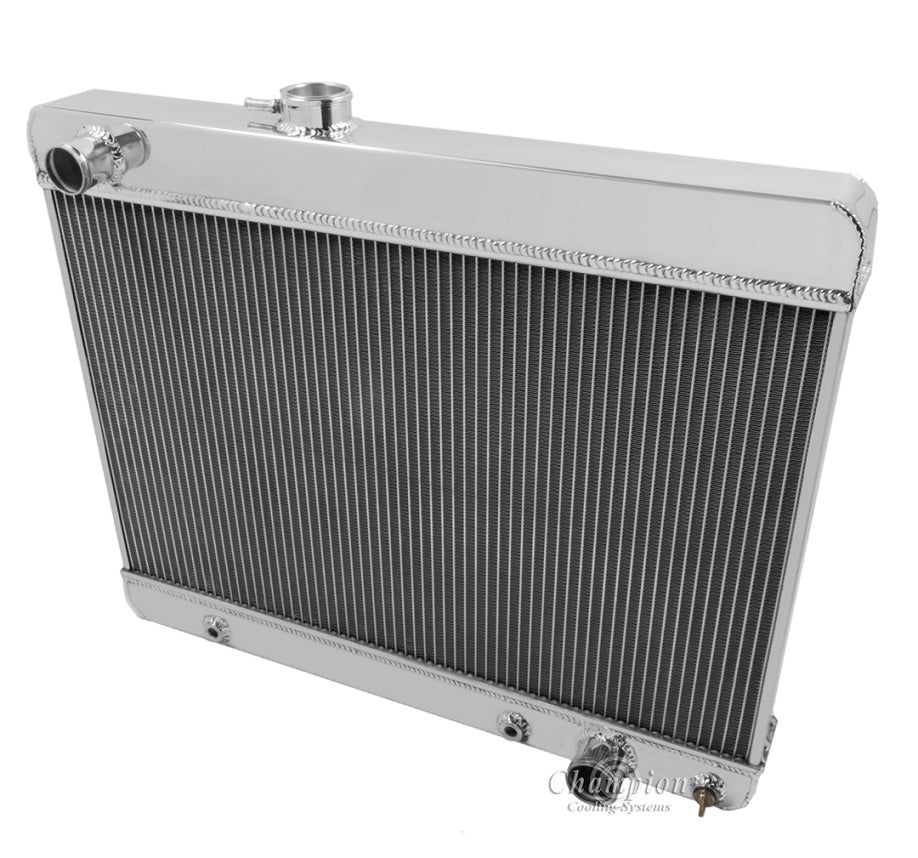

AE1680 2 Row 1" Tubes 20.5" Tall

Champion All Aluminum Radiator
2-Row Core | Cools up to 550hp
Please verify you radiator height, we have 20", 20.5"
and 22.5" tank to tank heights. Call for Assistance.

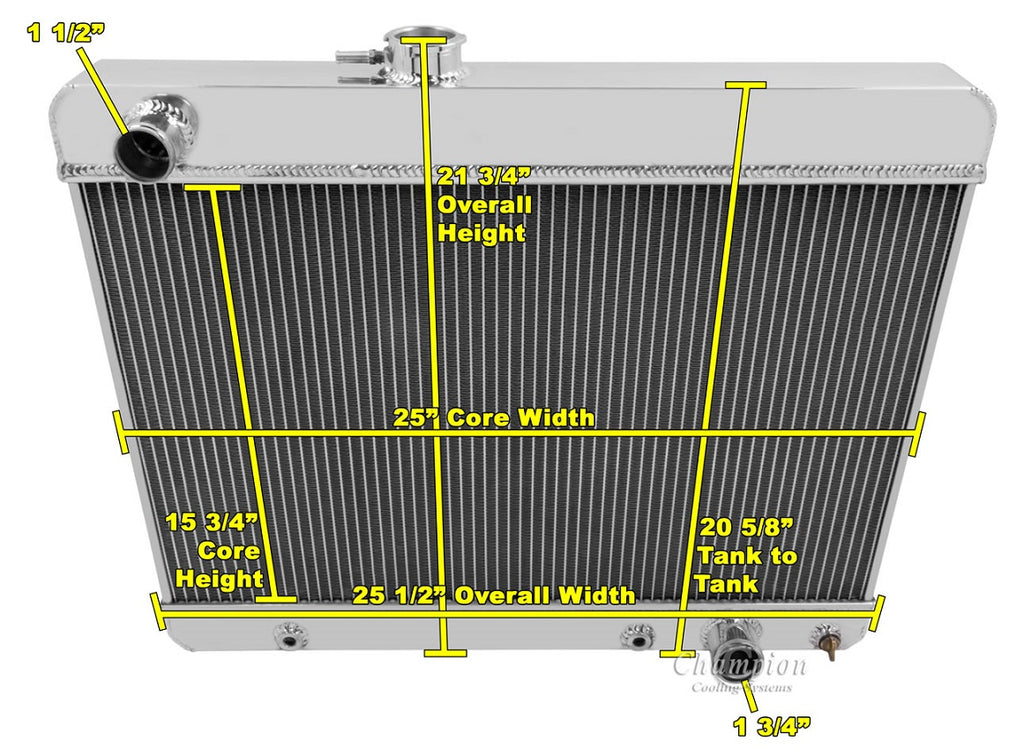

Radiator Dimensions:
Total: 20.5" Tall 21.75" (with cap) x 25.5" wide
Core: 15 3/4" tall x 25" wide x 2.25"thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: (top) 2.75" thick; (bottom) 2.38" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap included

Recommended electric fans:
Two 12" Electric Fans or one 16" Electric Fan are recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
