AE1635-1635FS16 2 Row 1" Tubes Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
2-Row Core,1" tubes | Cools up to 550hp

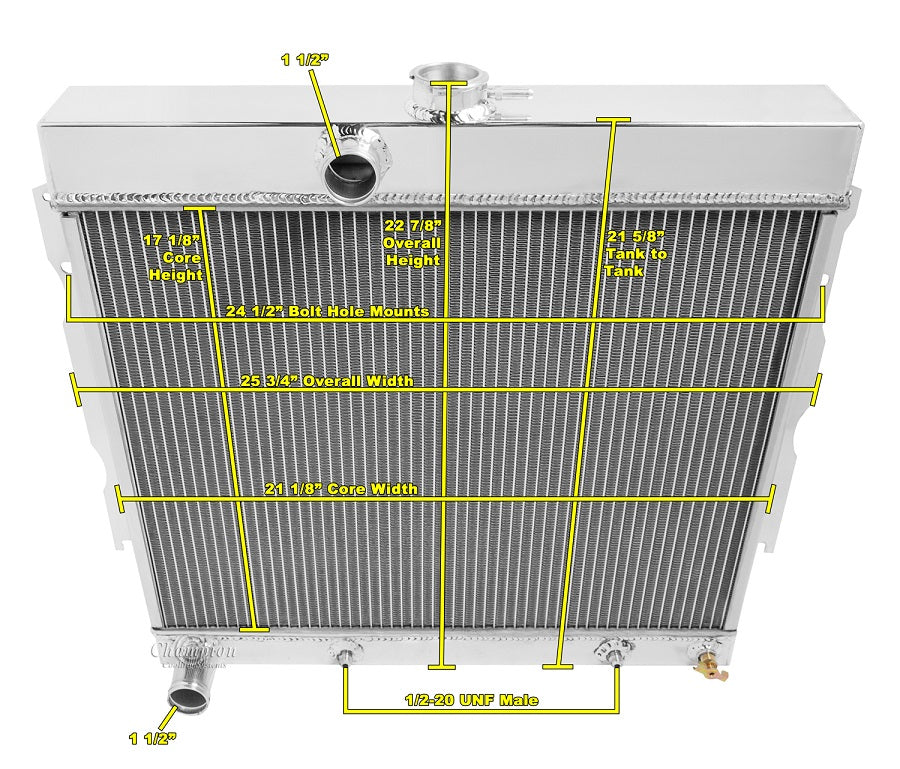

Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 22" wide x 2.25" thick
Inlet: 1.5" off-center driver side
Outlet: 1.5" driver side
Tanks: 3.5" thick
Tubes: 1" thick
Total Thickness: 6.75"

Bracket Mounted

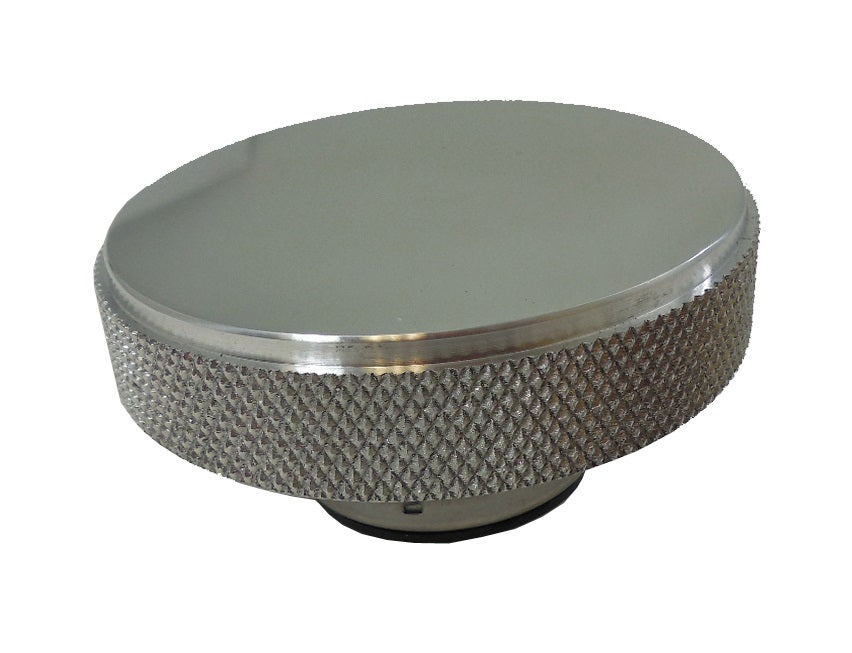

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/8-27NPT)
