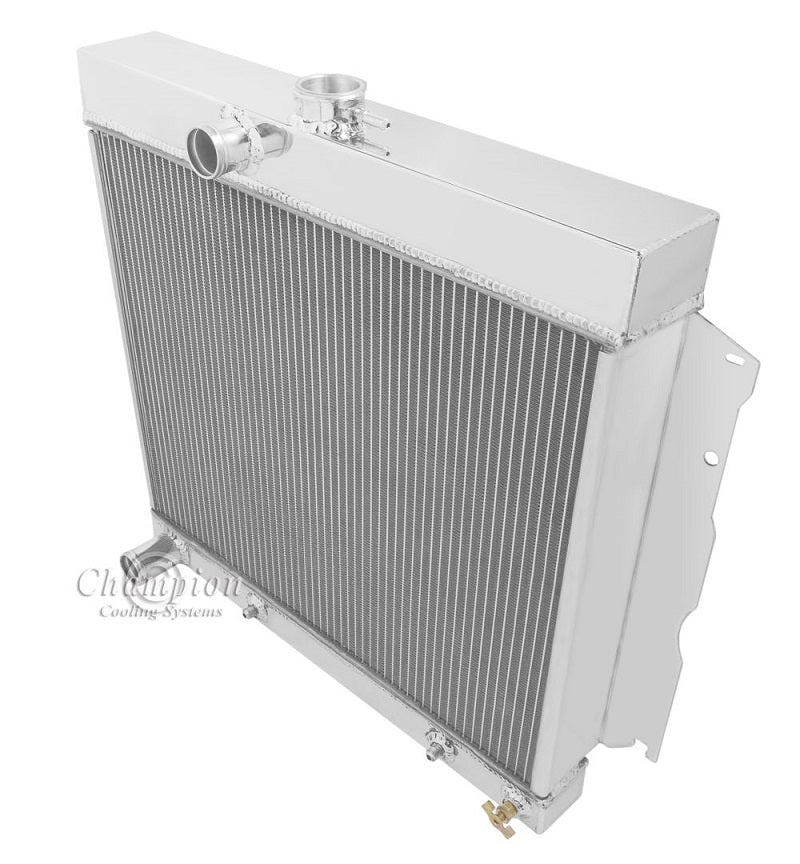

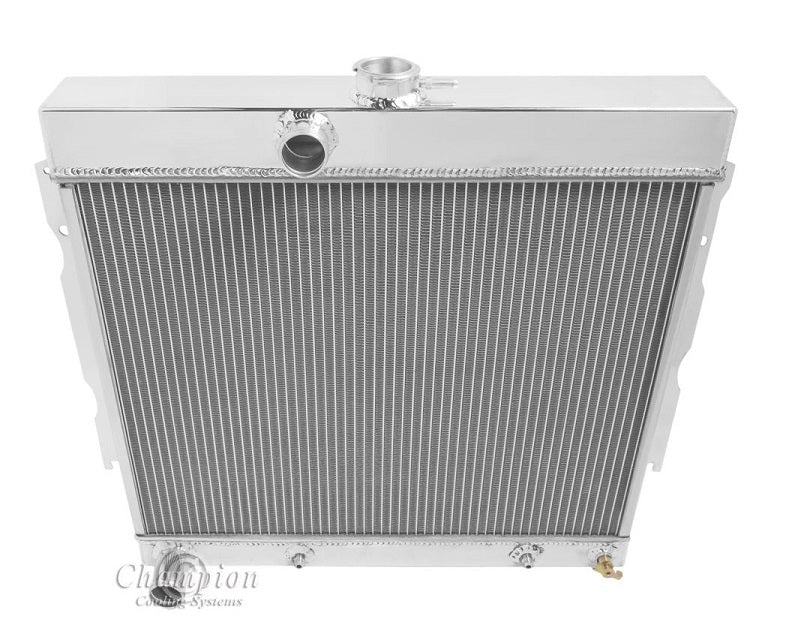

AE1635 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core | Cools up to 550hp
If you need a shorter version, refer to CC66

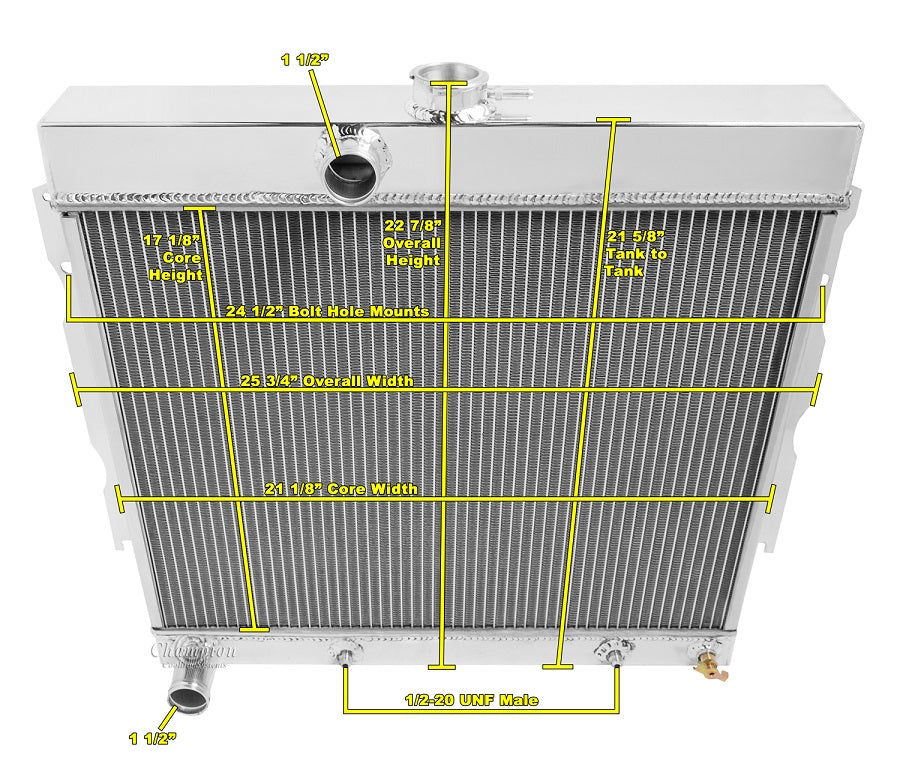

Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 22" wide x 2.25" thick
Inlet: 1.5" off-center driver side
Outlet: 1.5" driver side
Tanks: 3.5" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Fan Shroud is also available (sold separately)

Recommended Fans:
One 16" Electric fan recommended for this core size (sold separately)
