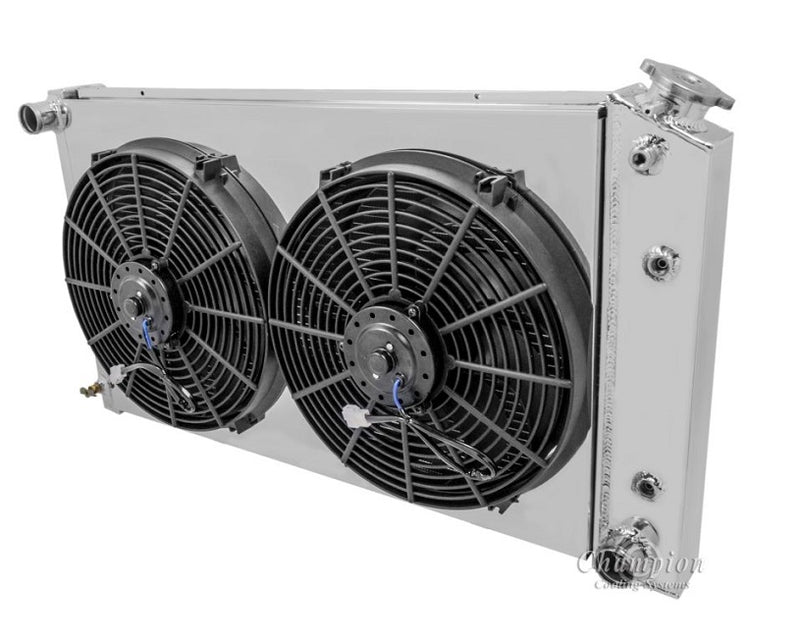

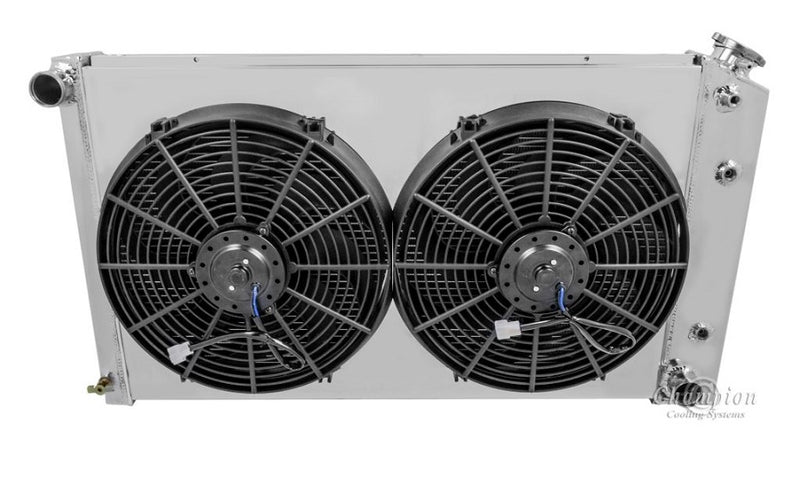

AE162-162FS12SP 2 Row 1" Tubes

Champion Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $40"
2-Row Core, 1" tubes | Cools up to 700hp

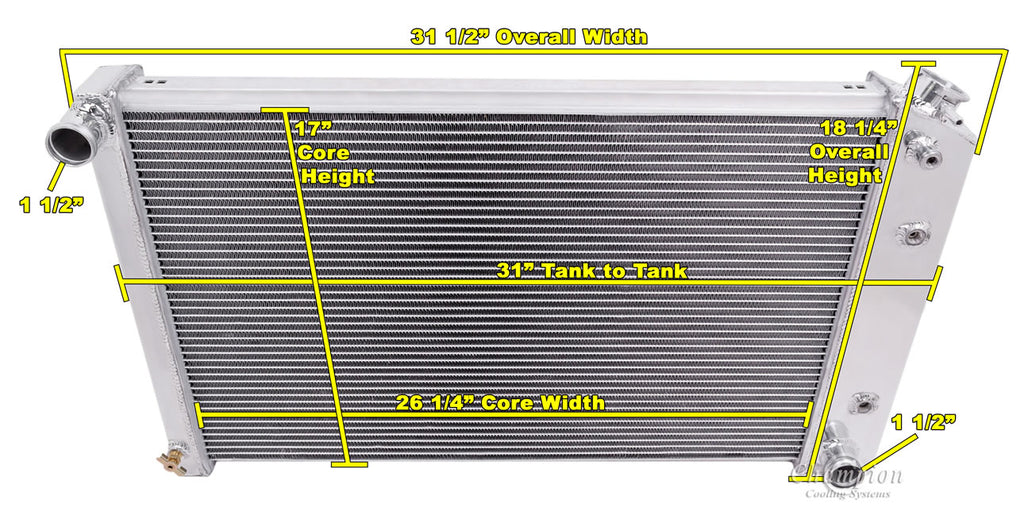

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 31" wide
Core: 16.75" tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" (4.5" between fan motors)

Saddle Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
