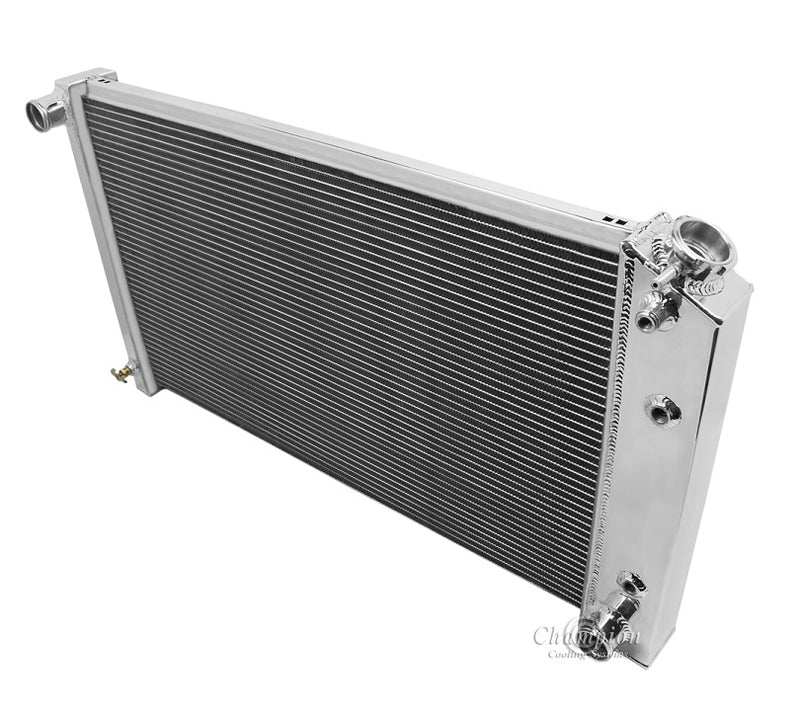

AE161-161FS14 2 Row 1" Tubes

Champion All Aluminum Radiator Plus

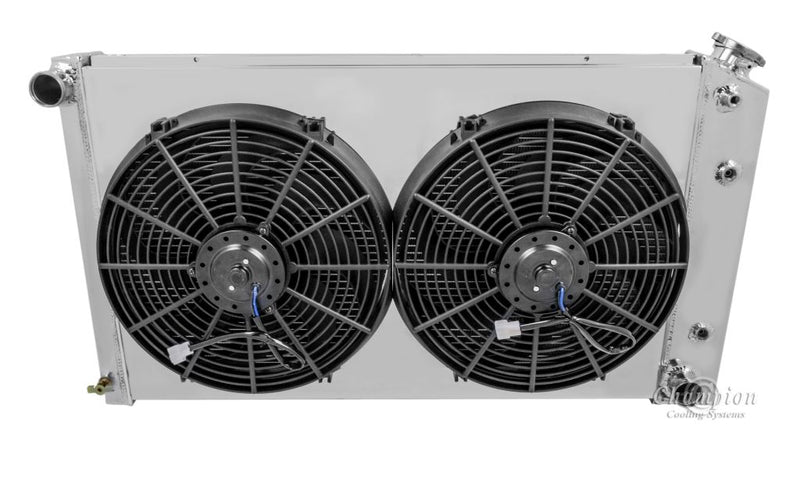

Ledfoot Racing Aluminum Shroud & Two 14" Fans
Verify clearance for electric fan
2 Row Core, 1" Tubes | Cools up to 800hp

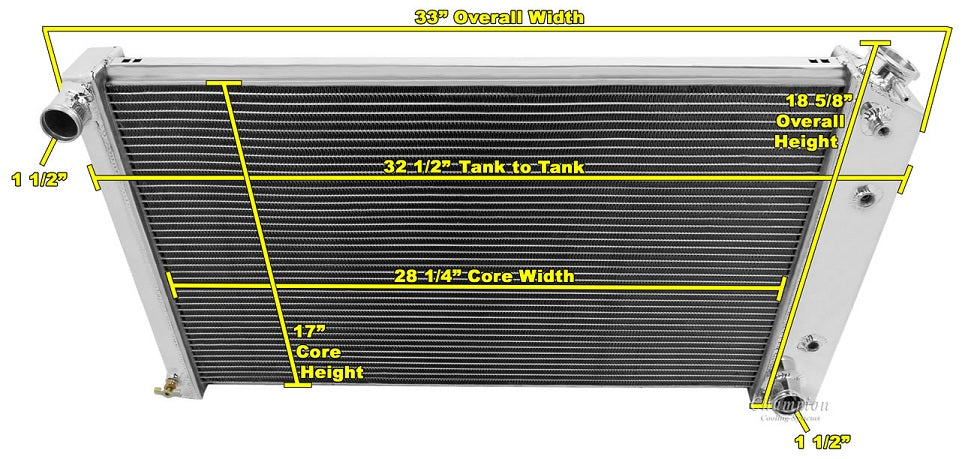

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 33" wide
Core: 16.75" tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 6" (5" between fan motors)

Saddle Mounted

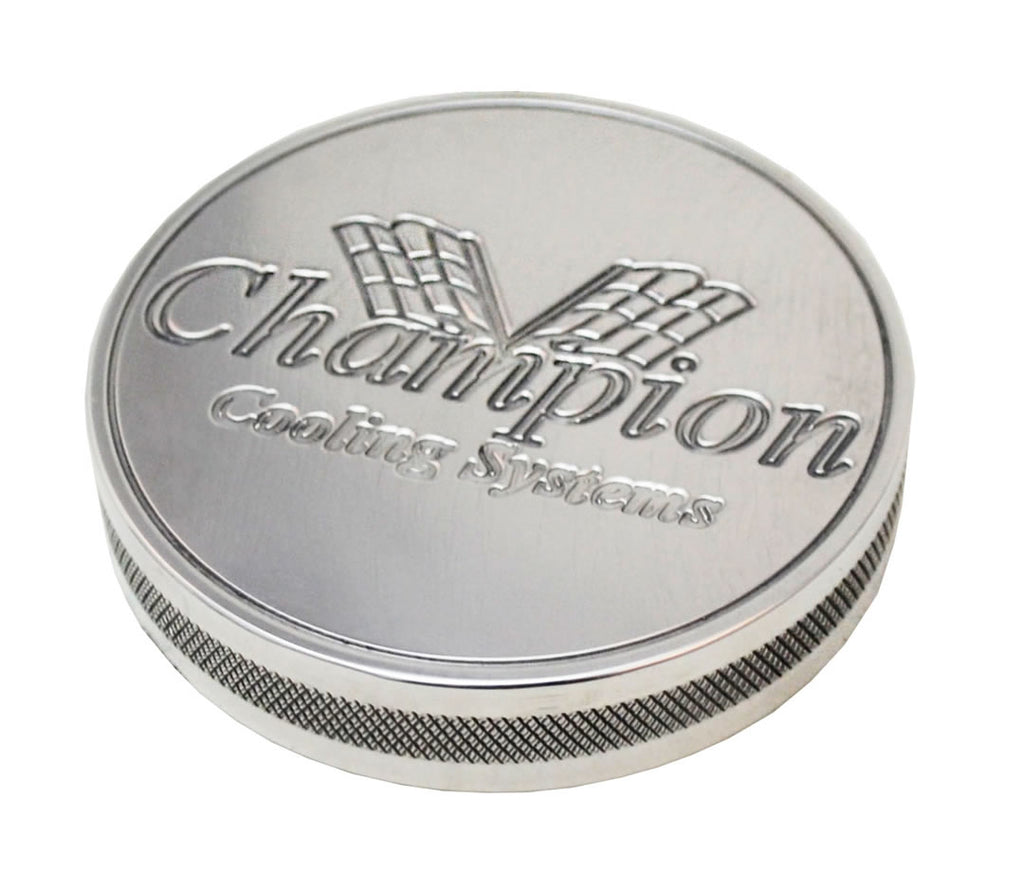

Polished Champion 16 lb Radiator Cap included (Pictured Above)
