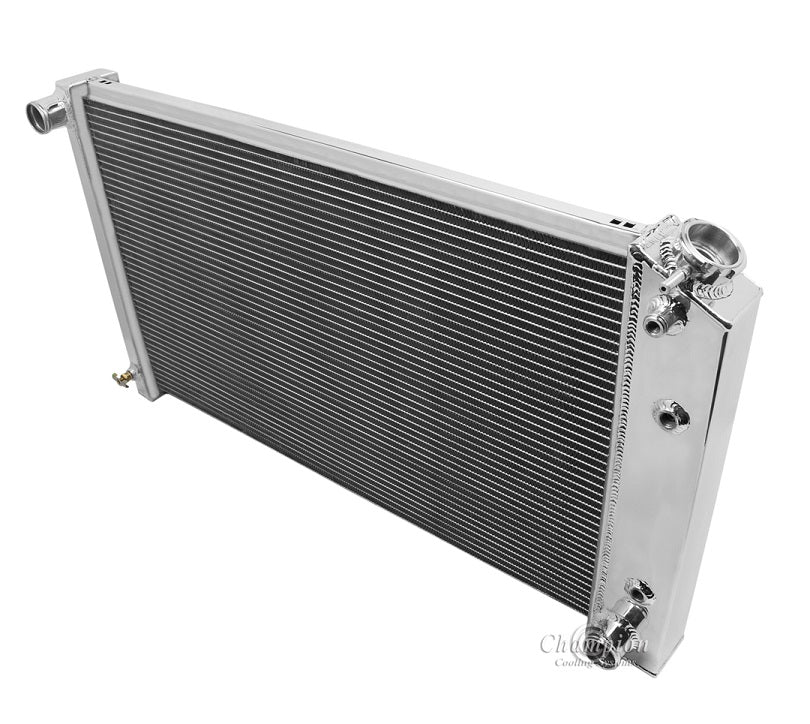

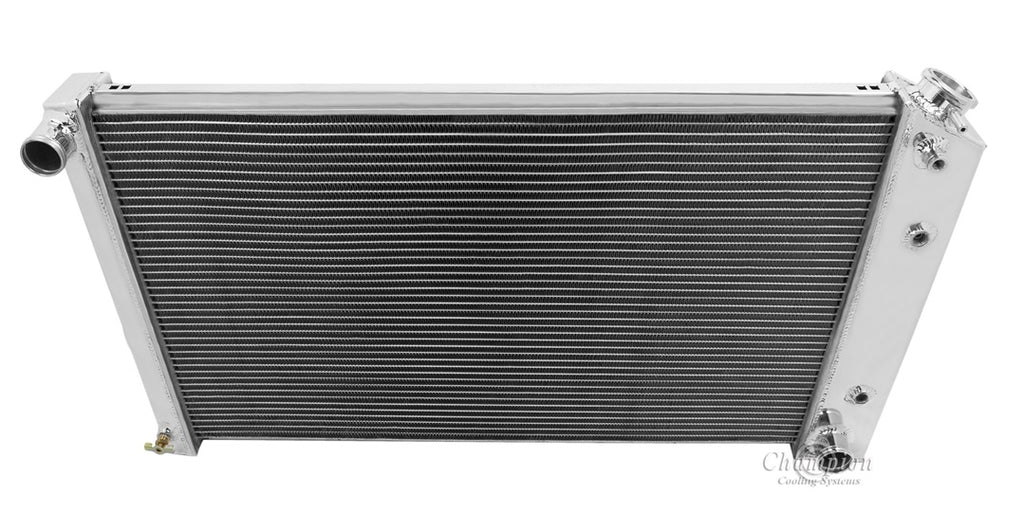

AE161 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core: 1" Tubes | Cools up to 800hp

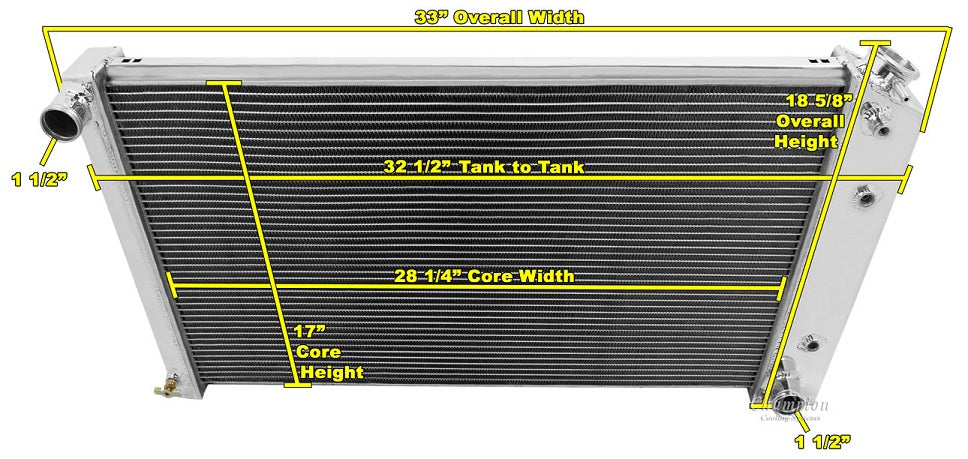

Radiator Dimensions:
Total: 18.25" tall (19” with cap) x 33" wide
Core: 16.75" tall x 28.25" wide x 2.25" thick
Inlet: 1.5"
Outlet: 1.5"
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap included

Aluminum Shroud is also available (sold separately)

Recommended Fans (sold separately):
Two 14" Electric fans are recommended for this core size (sold separately)
