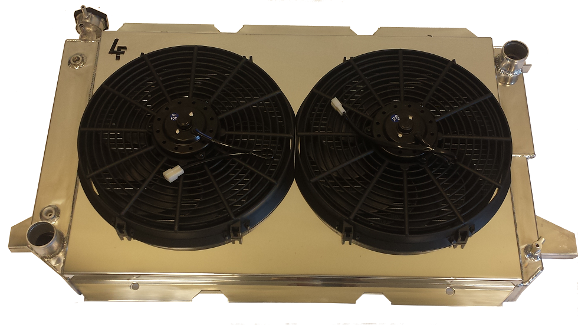

AE1451-1451FS14 2 Row 1" Tubes Combo

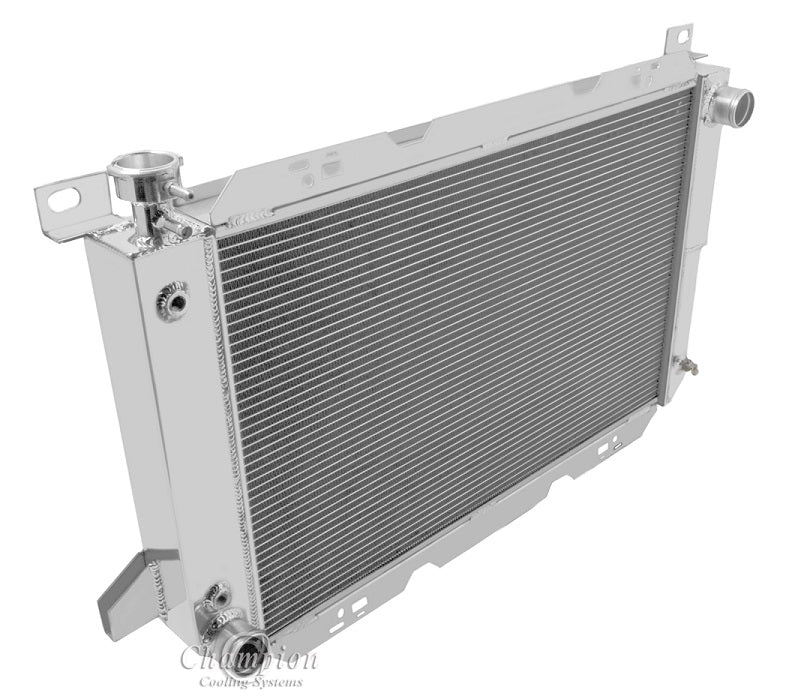

All Aluminum Champion Radiator Plus
Ledfoot Racing Shroud & (2) Pro-Series 14" Fans
2-Row Core | Cools up to 700hp | 1" Tubes

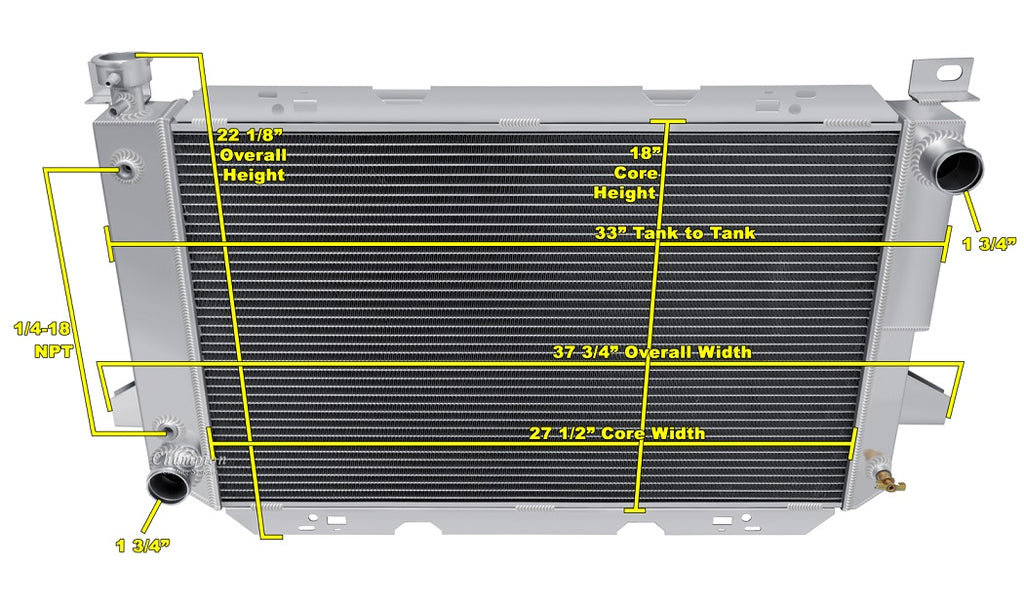

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/8-27NPT)
