AE138-138FS16C 2 Row 1" Tubes

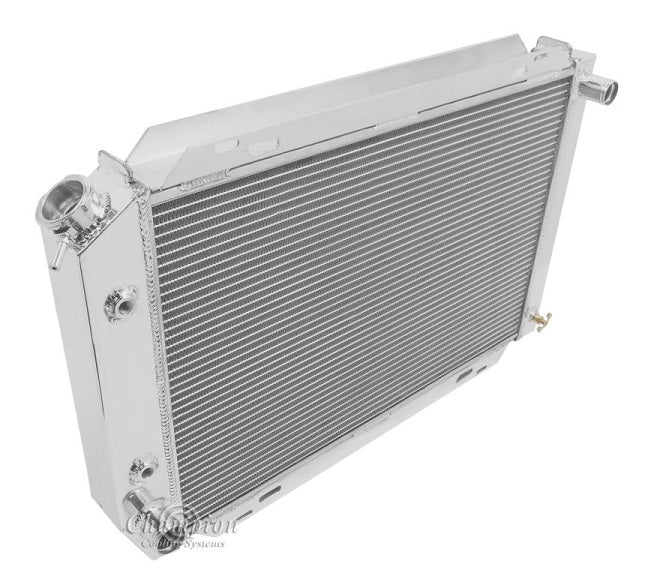

Champion Aluminum Radiator Plus

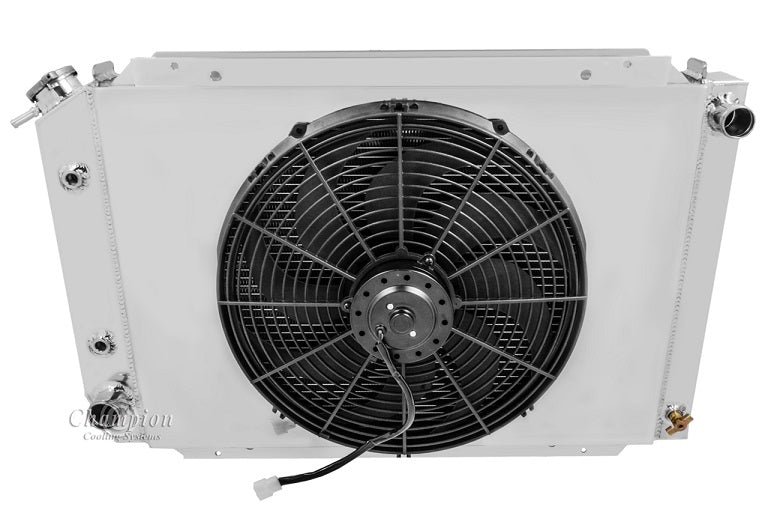

Ledfoot Racing Custom Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" Thick Tubes | Cools up to 700hp

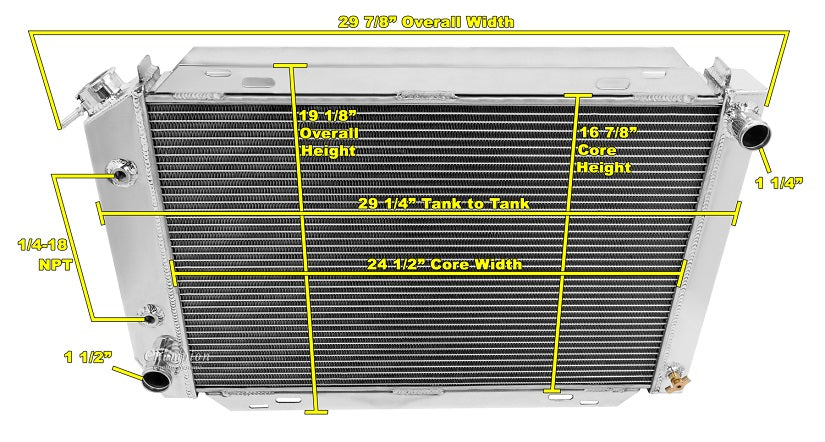

Radiator Dimensions:
Core: 16.75" tall x 24.5" wide x 2.13" thick
Total: 19.25" (with cap) tall x 29.25" wide
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 6.25"

Saddle Mounted

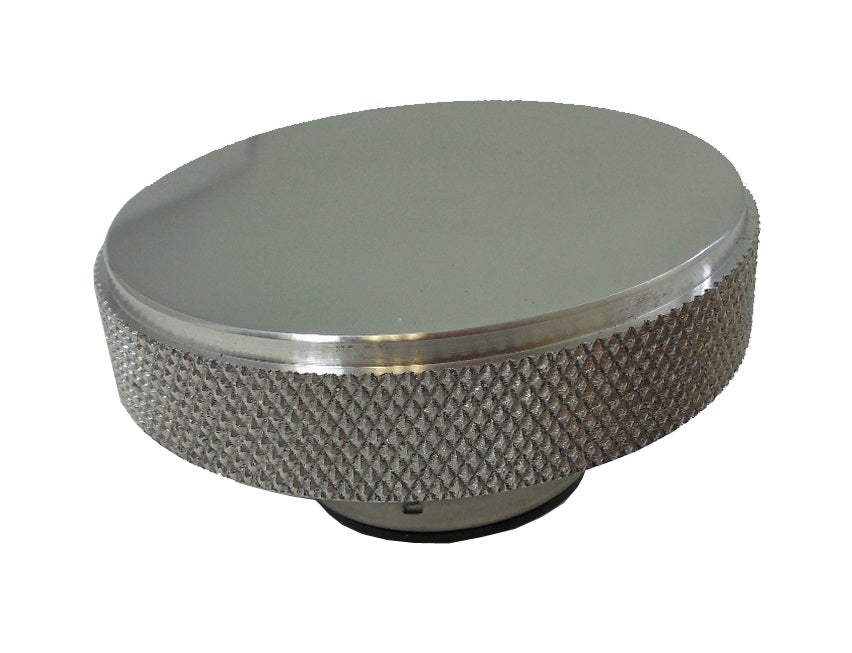

Polished Champion 16 lb Radiator Cap included
