AE138 2 Row 1" Tubes

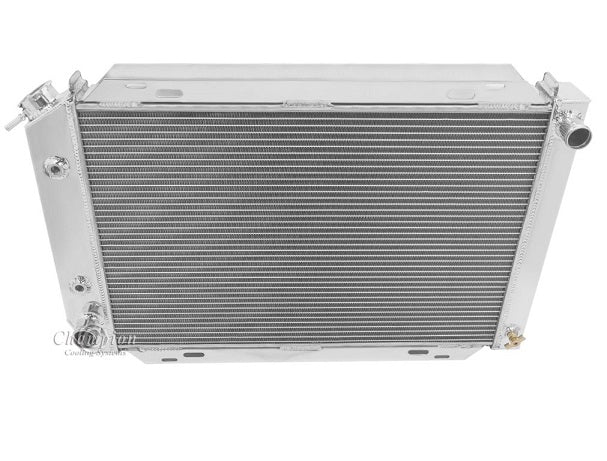

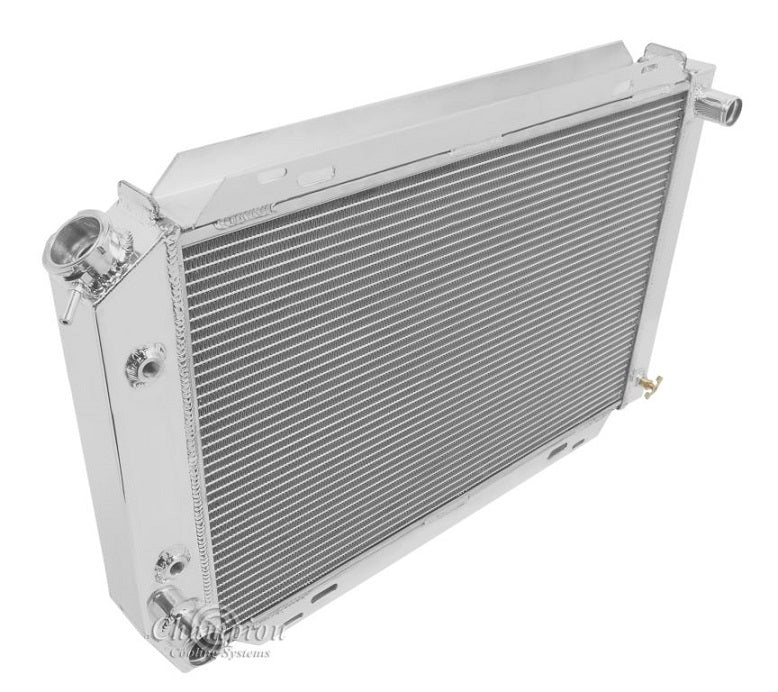

Champion All Aluminum Radiator
2-Row Core, 1" Tubes | Cools up to 700hp

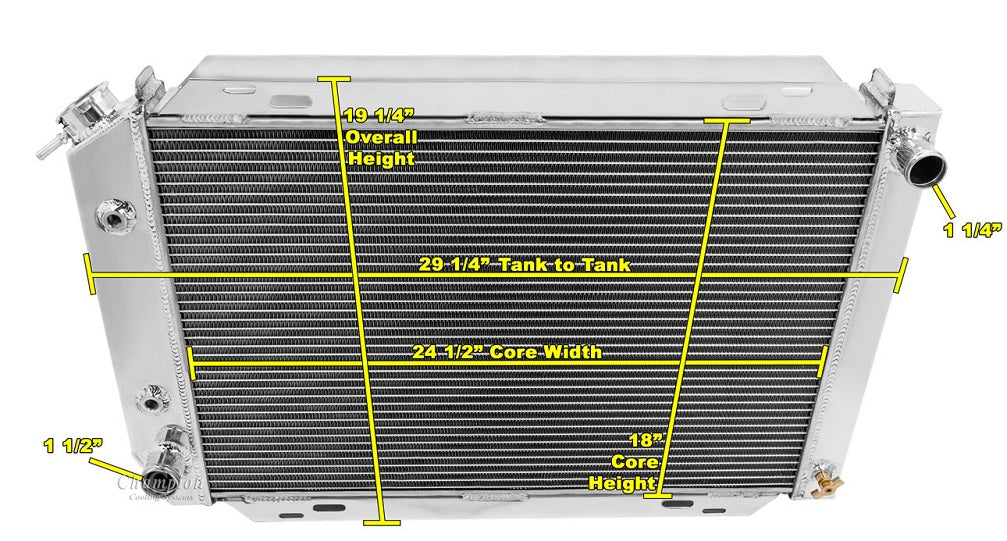

Radiator Dimensions:
Total: 19.25"(with cap) tall x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.13" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap included

Aluminum Shroud is also available (sold separately)

Recommended fans (sold separately):
One 16" or two 12" electric fans recommended for this core size
