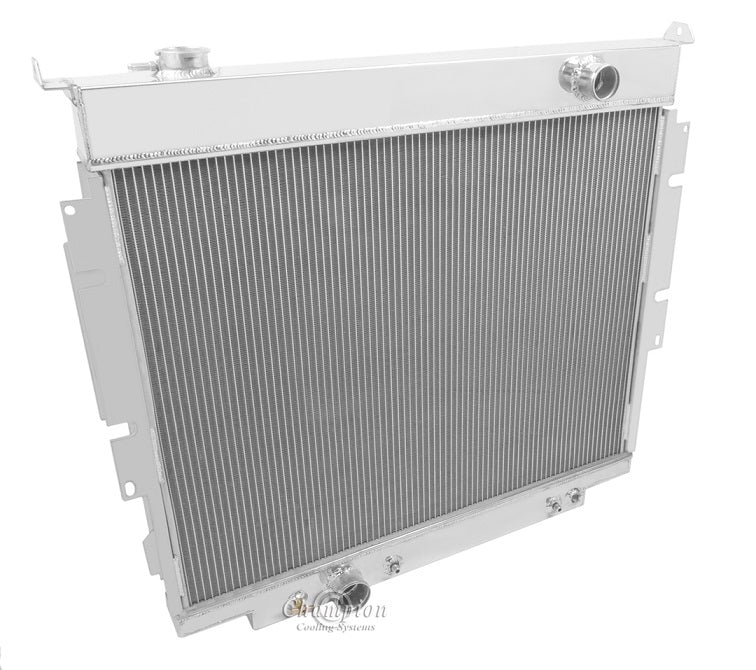

AE1165-1165FS16X2 2 Row 1" Tubes

All Aluminum Champion Radiator Plus

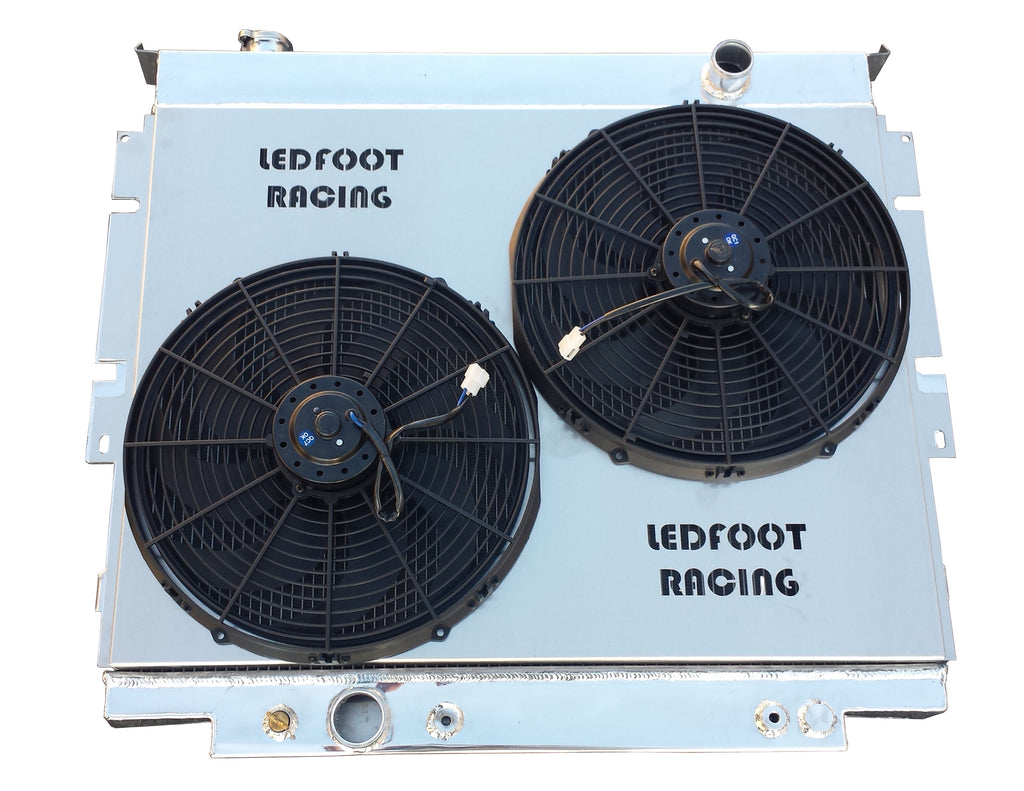

Ledfoot Racing Shroud and (2) Pro-Series 16" Fans
2-Row Core 1" Tubes | Cools up to 700hp
Diesel Only

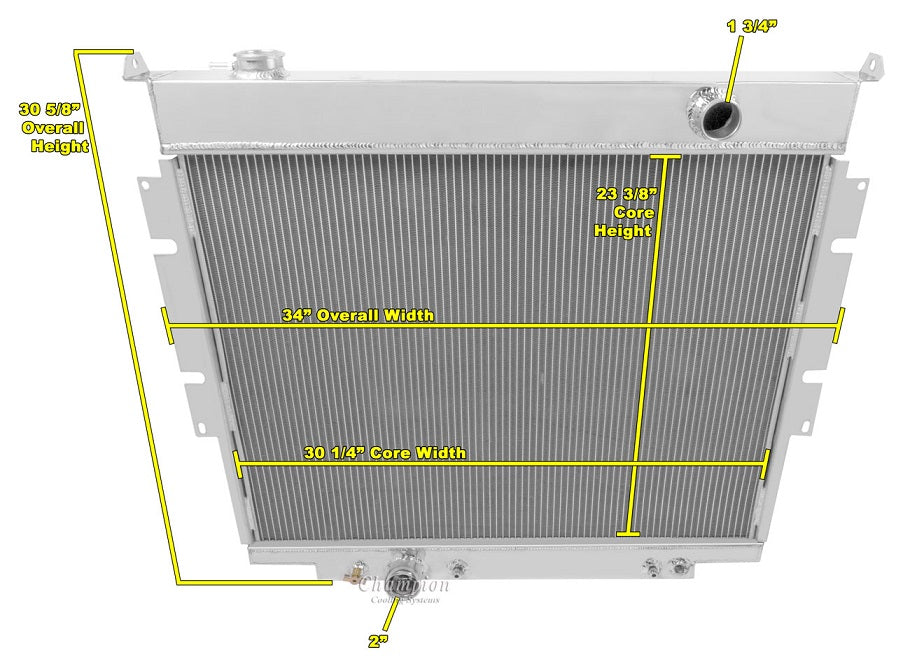

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2.2" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 7" (5.5" between fan motors)

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included ( M22 x 1.5)

Shipping is higher for this oversized item
