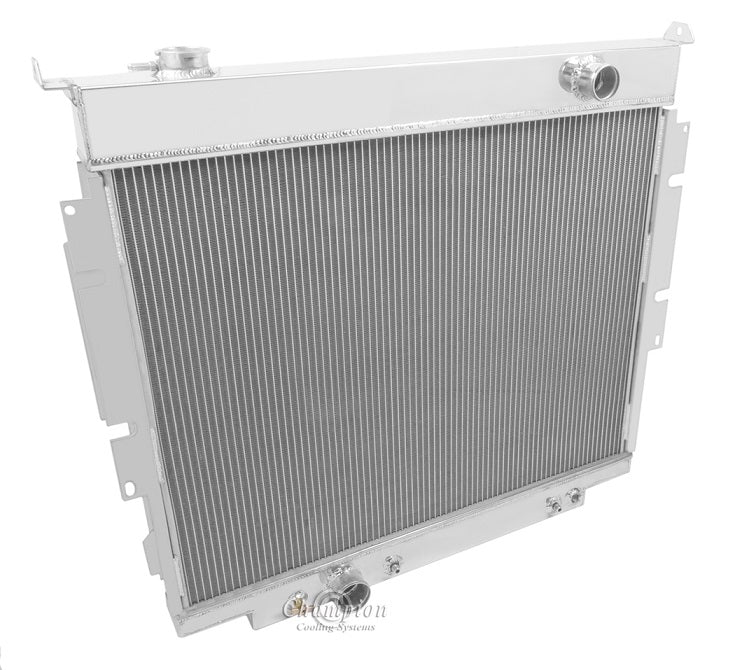

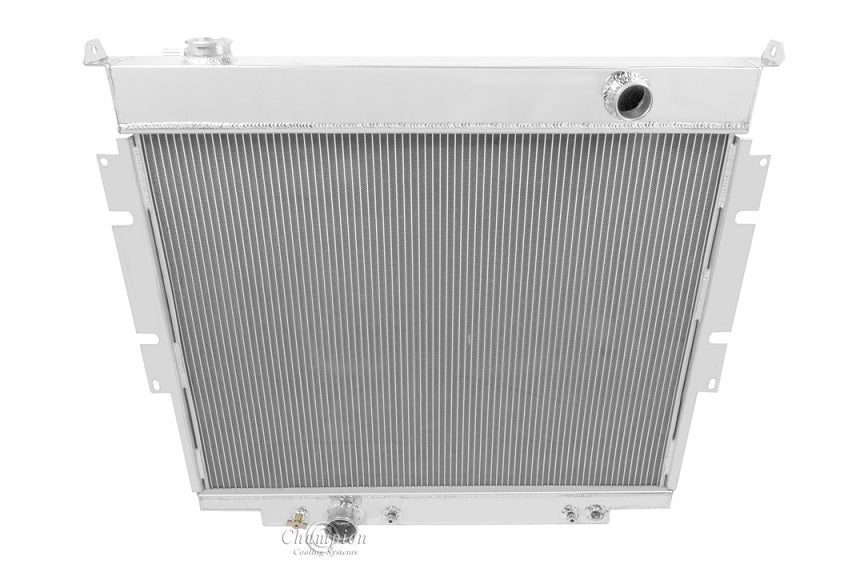

AE1165 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 700hp
Diesel Only, Verify your dimentions there, was a wider version

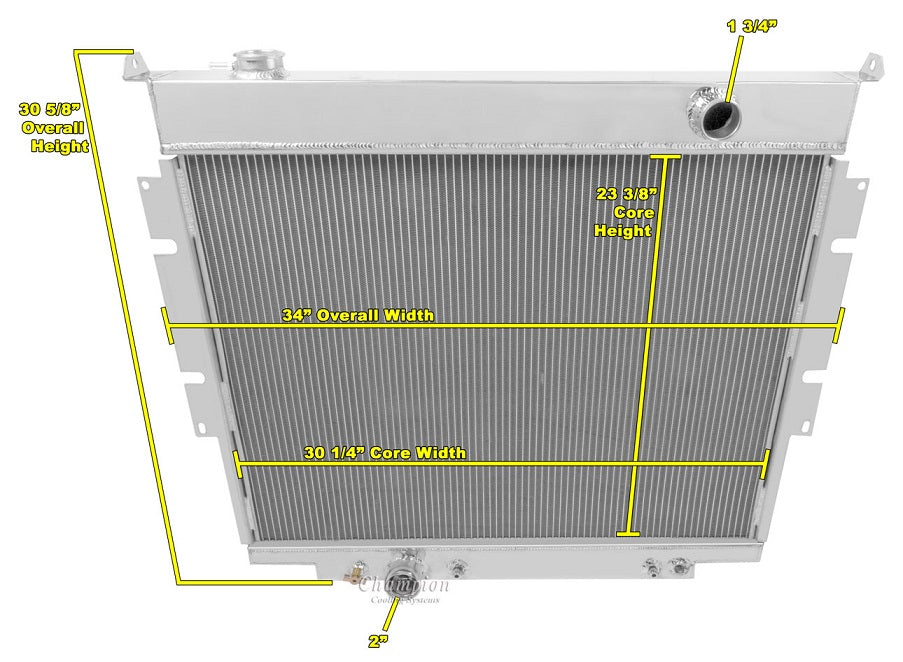

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (with brackets)
Core: 23.75" tall x 31.13" wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 2” Driver side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included ( M22 x 1.5)

When using electric fans:
Two 16" Electric fans recommended for this core size (sold separately)

Shipping is higher for this oversized item
