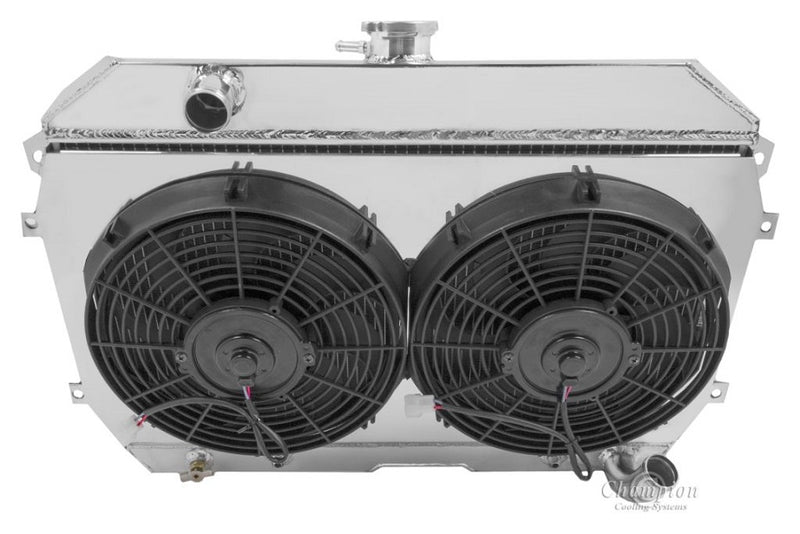

AE110-110FS11SP 2 Row 1" Tubes

Champion All Aluminum Radiator Plus

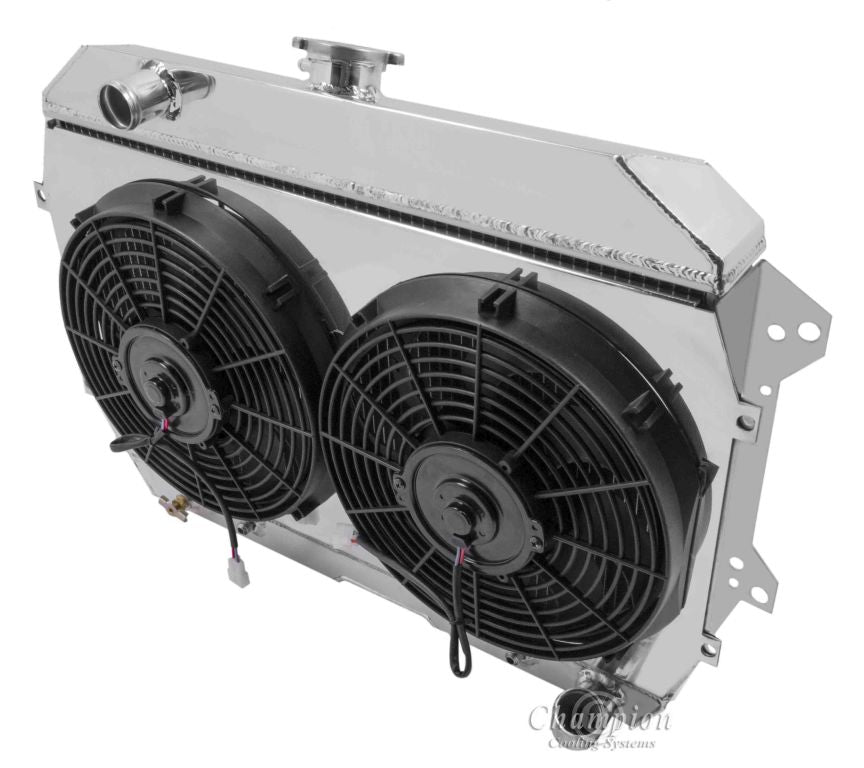

Ledfoot Racing Shroud and 2-11" SPAL Medium Profile fans

2-Row Core: 1" Thick Tubes | 550hp Rating
($40 Discount)

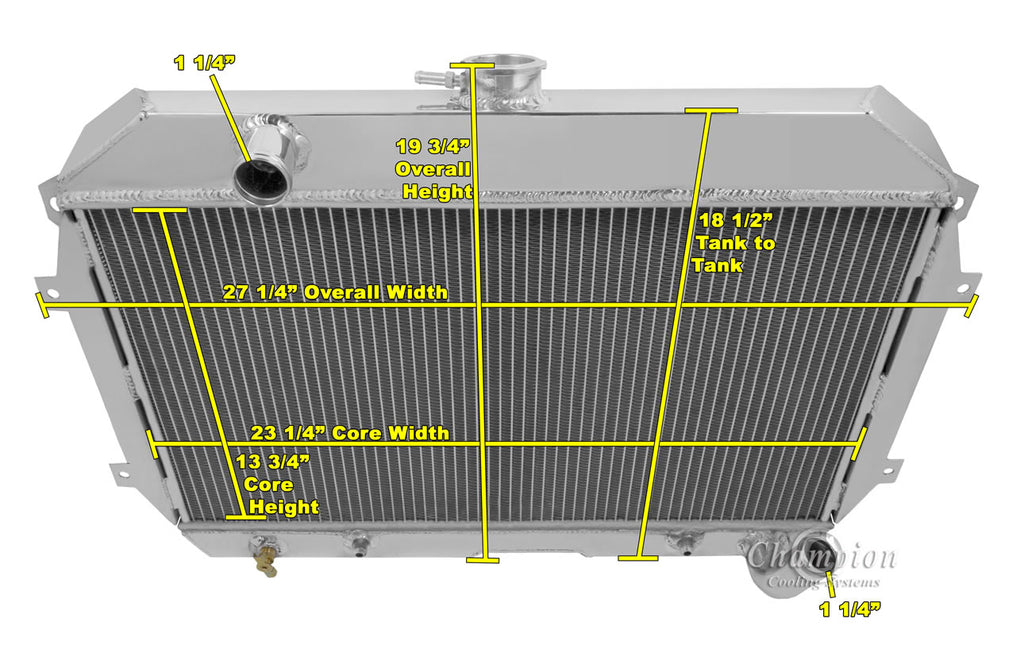

Radiator Dimensions:
Total: 19.75 tall x 27.25" wide (including brackets)
Core: 13.75" tall x 23.25" wide x 2.25" thick
Inlet: 1.25" (off center driver side)
Outlet: 1.25" (passenger side angled upward)
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 6" (5" between fan motors)

Bracket Mounted

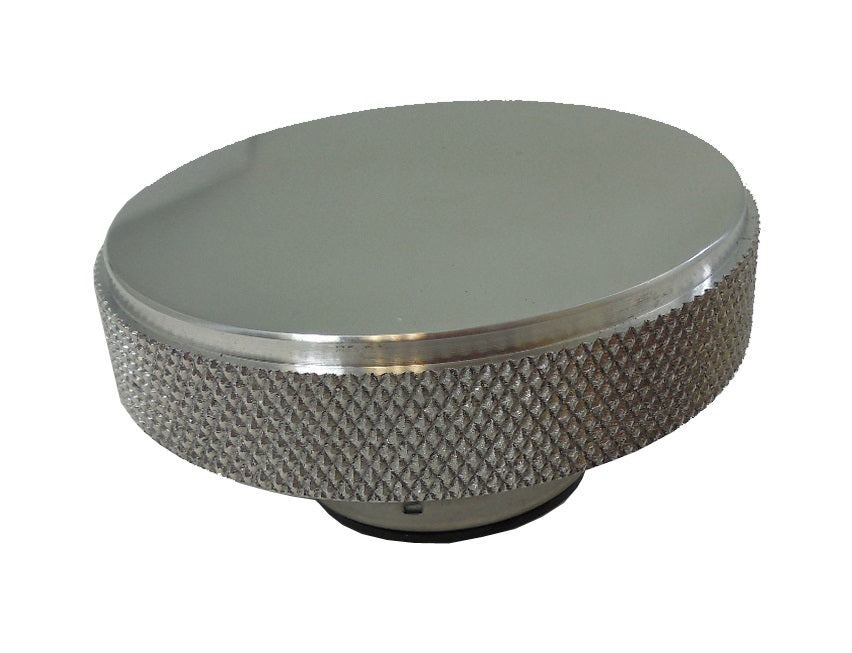

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included Metric 14-1.5)
