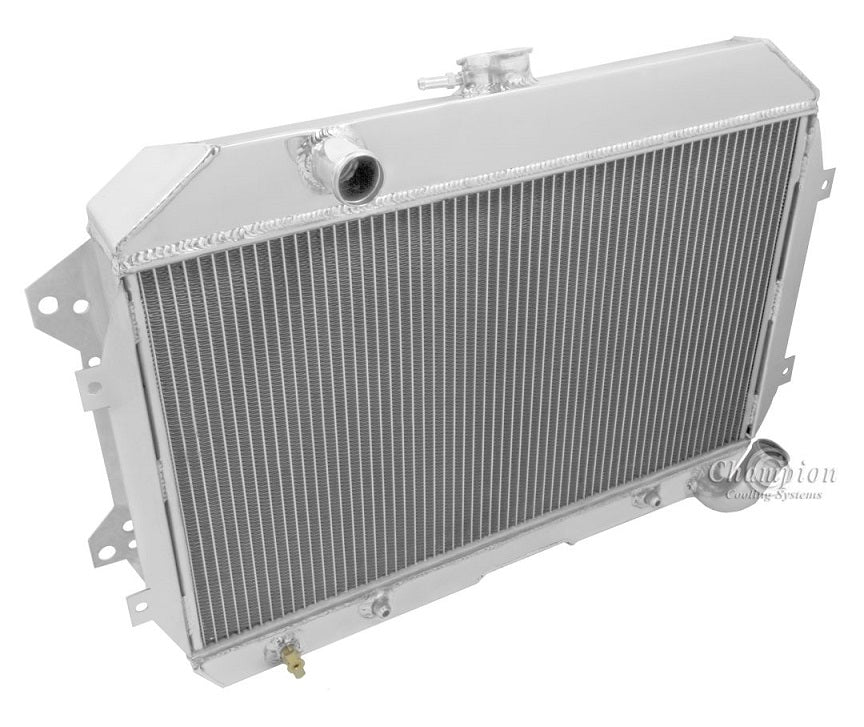

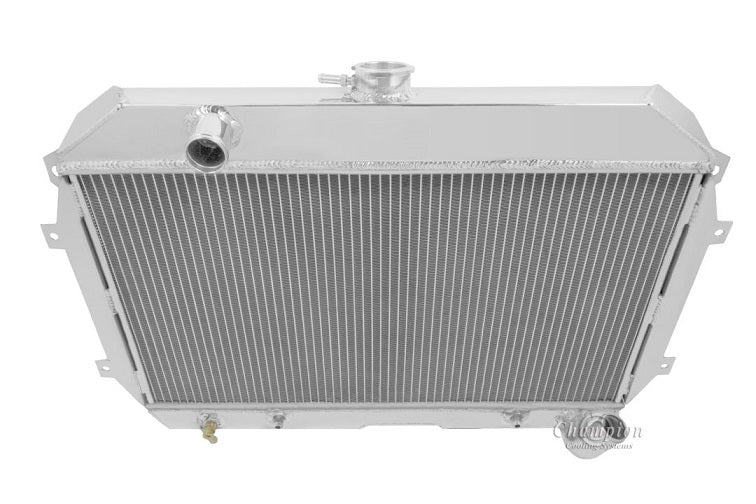

AE110 2 Row 1" Tubes

All Aluminum Champion Radiator
2-Row Core | Cools up to 500hp

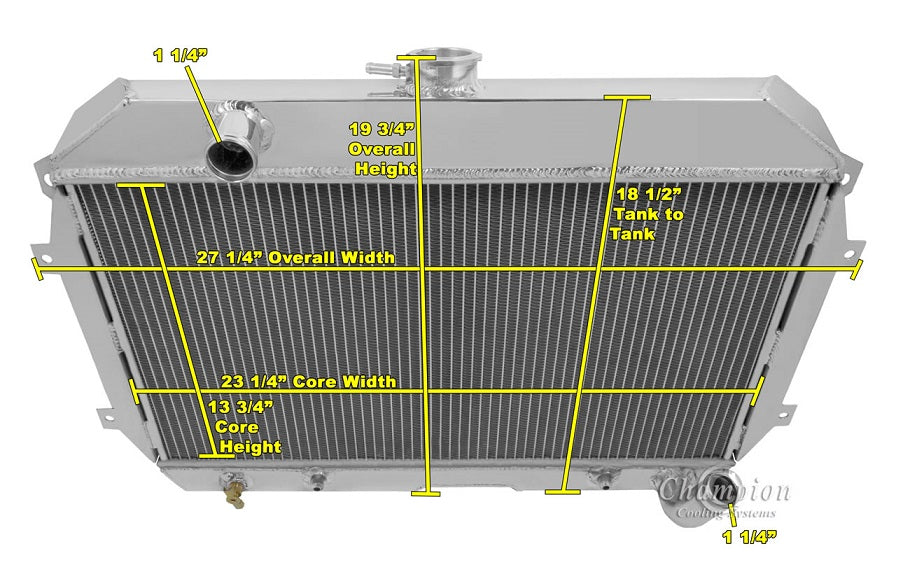

Radiator Dimensions:
Total:19.75" tall x 27.25" wide (with brackets)
Core: 13.75" tall x 23.25" wide x 2" thick
Tanks: 2.75" thick
Inlet: 1.25" drivers side
Outlet: 1.25" passenger side (angled upward)
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator cap included
Transmission Cooler included (metric 14-1.5)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
Aluminum shroud for 12" fans available (sold separately)
