AE1052 2 Row 1" Tubes

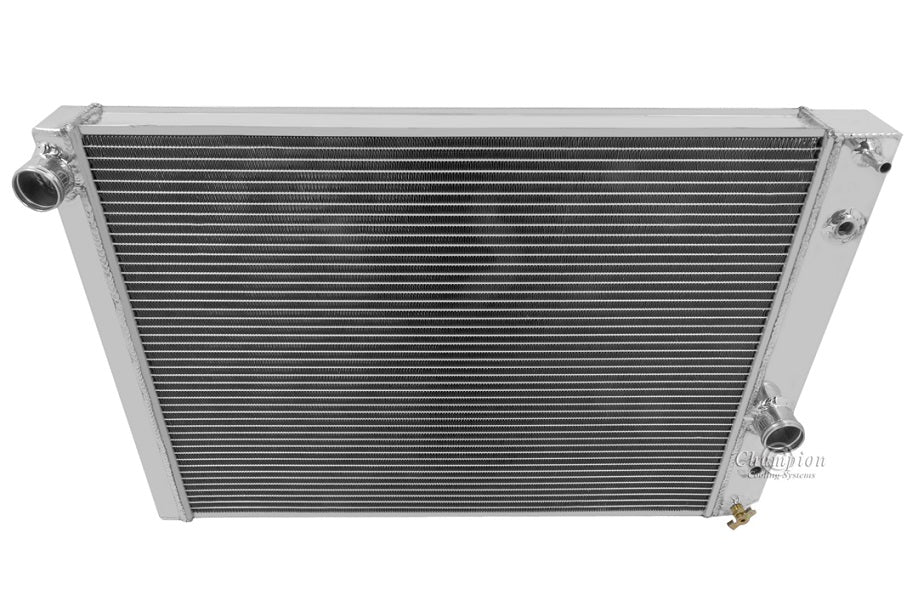

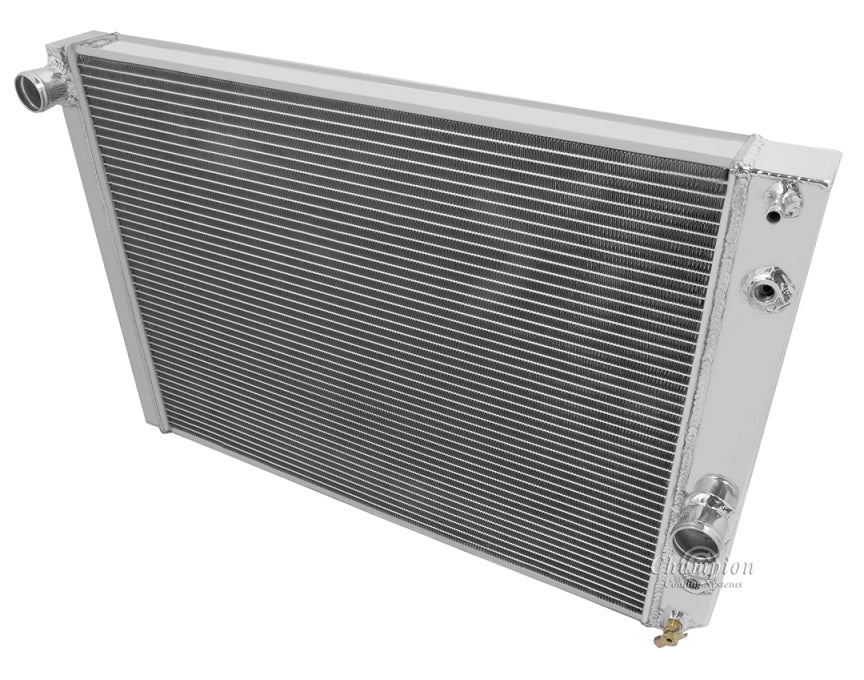

Champion All Aluminum Radiator
2-Row Core: 1" Tubes | Cools up to 600hp

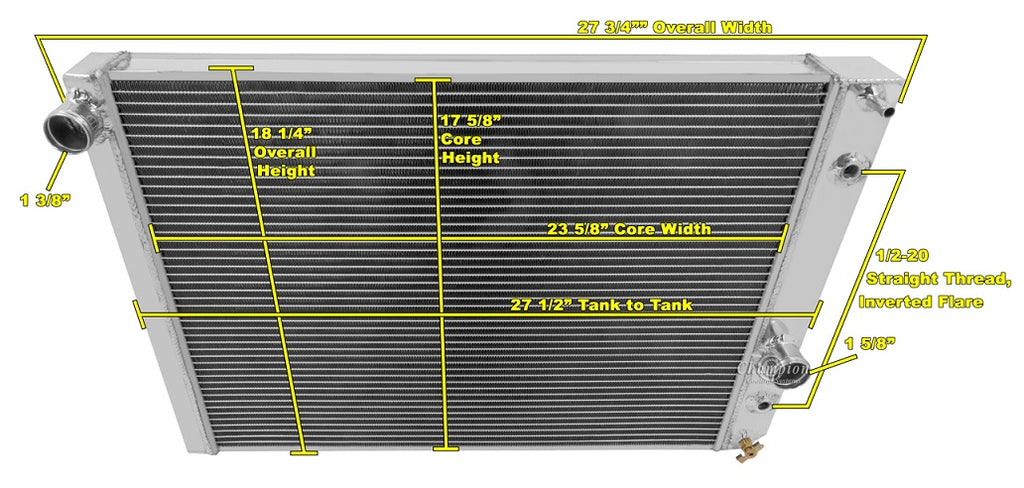

Radiator Dimensions:
Total: 18.13" tall x 27.5" wide
Core: 17.25" tall x 23.63" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tank: 2.75" thick
Tubes: 1" thick

Saddle Mounted

Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
note: no fill neck (part: CC829 for a fill neck)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
