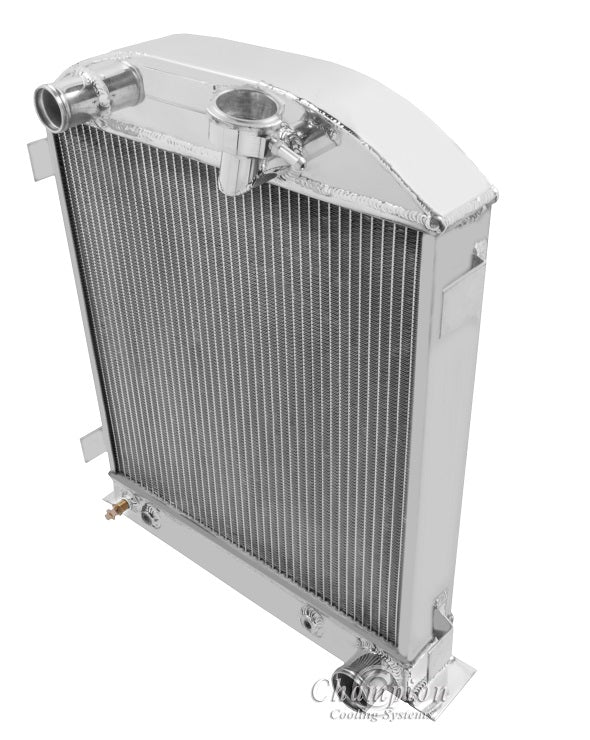

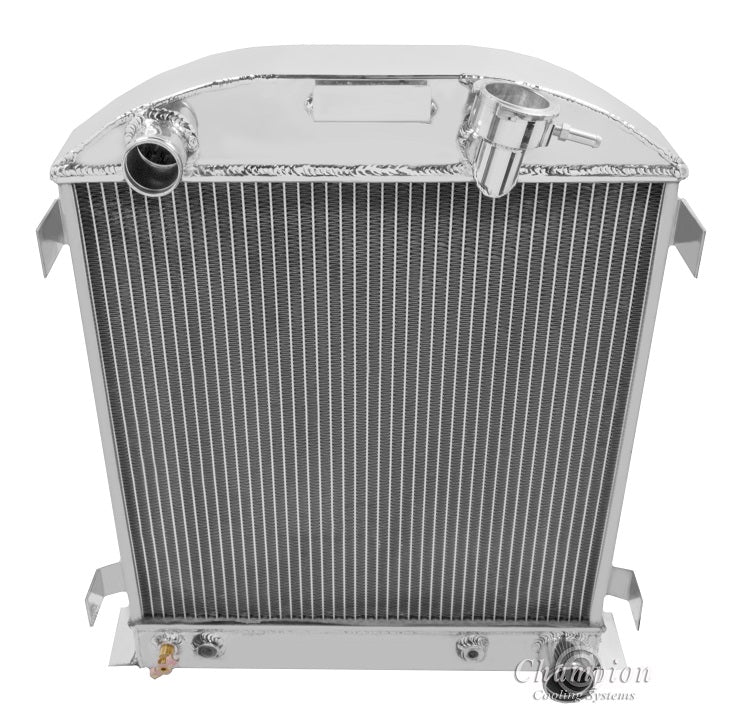

AE1009 2 Row 1" Tubes

Champion Aluminum Radiator
2-Row Core: 1" Thick tubes | Cools up to 600hp
3" Chop

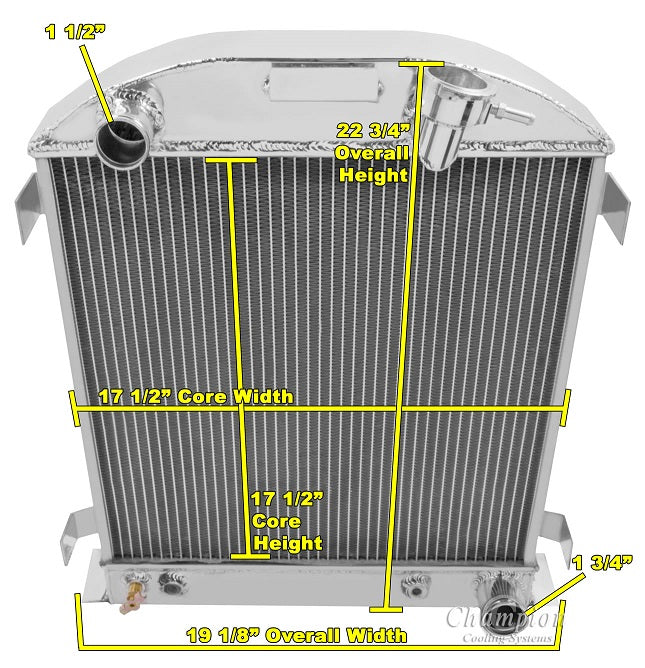

Radiator Dimensions:
Total: 22.75" tall x 19.13" wide (at lower bracket)
Core: 17.5" tall x 17.5" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" electric fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
