Description

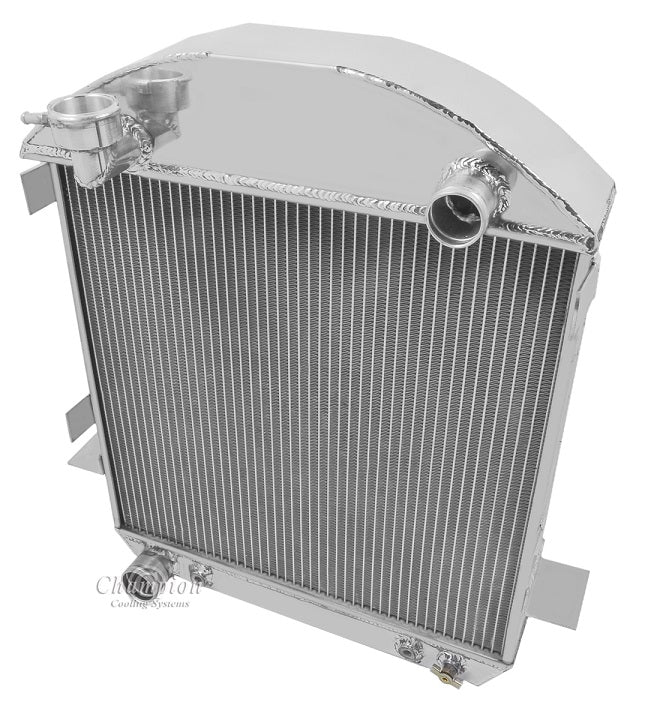

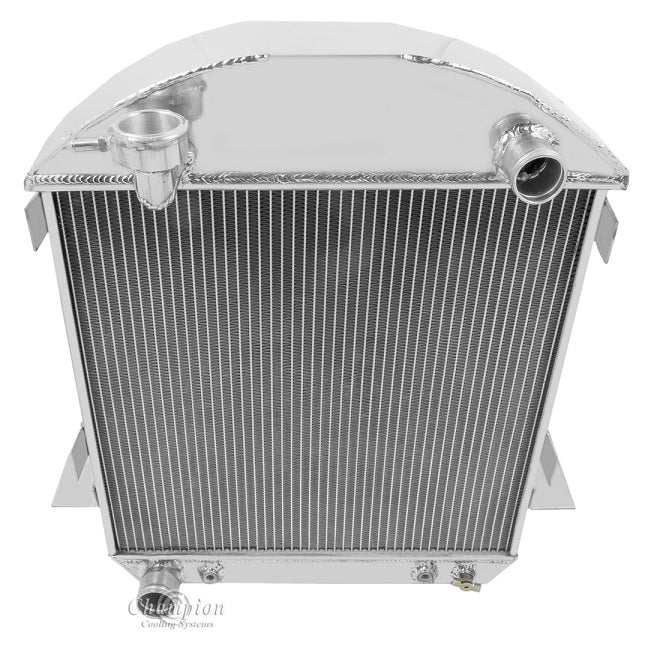

Champion Aluminum Radiator
Check Dimensions for 1923 Models
2 Row Core: 1" thick tubes | Cools up to 700hp
Radiator Dimensions:
Total: 24" tall x 22.5" wide (with bottom brackets)
Core: 18" tall x 18.5" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 4.5" thick (top) / 3" thick (bottom)
Tubes: 1" thick
OEM Fit
Ford / Mopar Inlet and outlet set up
13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27NPT)
When using electric fans:
One 16" electric fan recommended for this core size (sold separately)
Custom shroud for electric fan(s) available upon request:
Check Dimensions for 1923 Models
2 Row Core: 1" thick tubes | Cools up to 700hp
Radiator Dimensions:
Total: 24" tall x 22.5" wide (with bottom brackets)
Core: 18" tall x 18.5" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 4.5" thick (top) / 3" thick (bottom)
Tubes: 1" thick
OEM Fit
Ford / Mopar Inlet and outlet set up
13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27NPT)
When using electric fans:
One 16" electric fan recommended for this core size (sold separately)
Custom shroud for electric fan(s) available upon request:
