AE1005

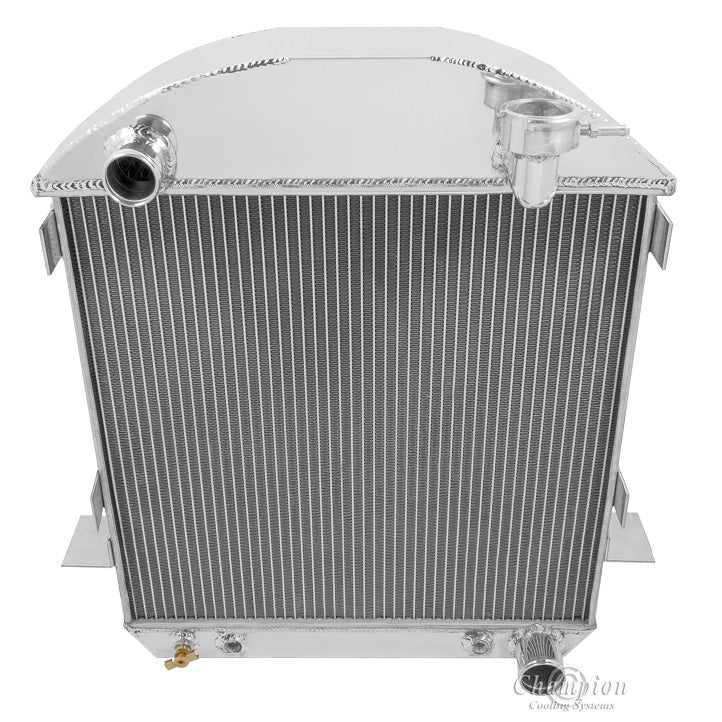

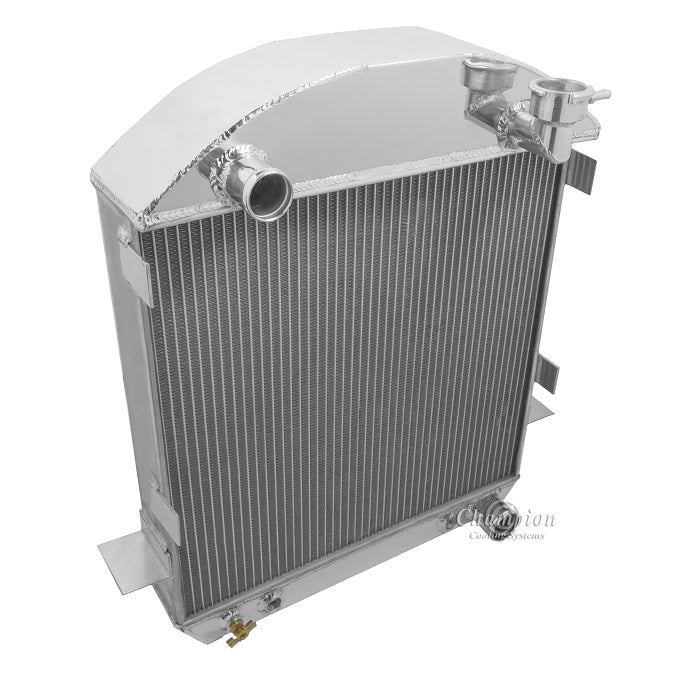

Champion Aluminum Radiator
2 Row Core | Cools up to 700hp

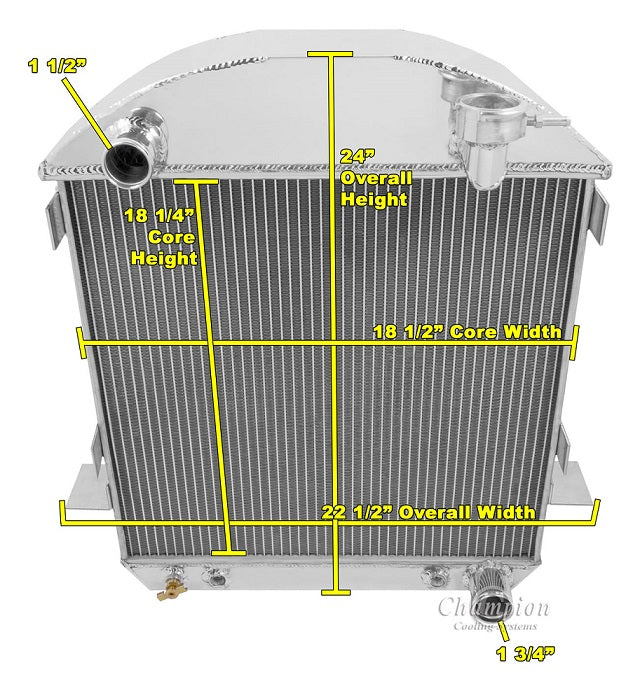

Radiator Dimensions:
Total: 24" tall x 22.5" wide (with bottom brackets)
Core: 18" tall x 18.5" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes:1" thick

OEM Fit
(Chevy / Mopar Inlet and outlet set up)

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
