CC561B 3 Row

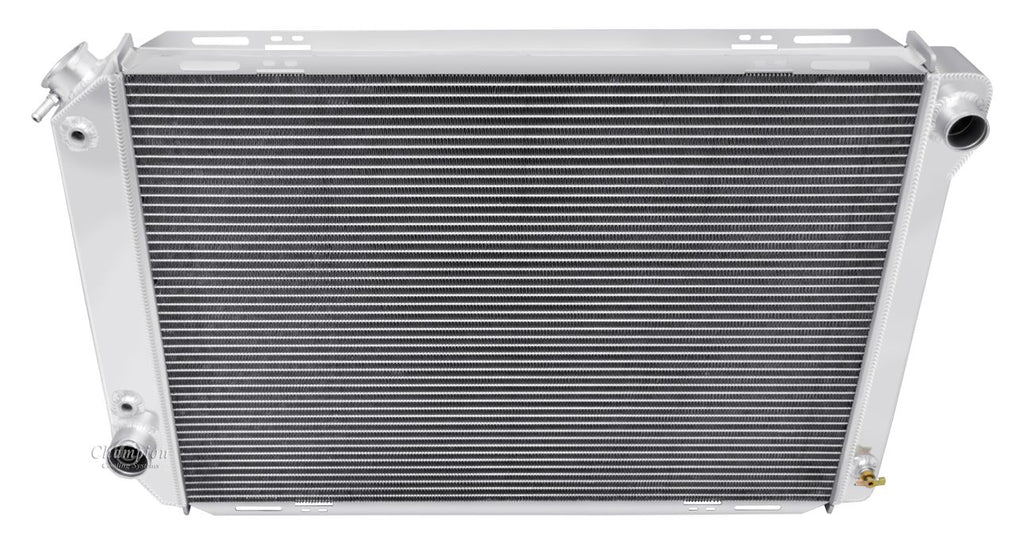

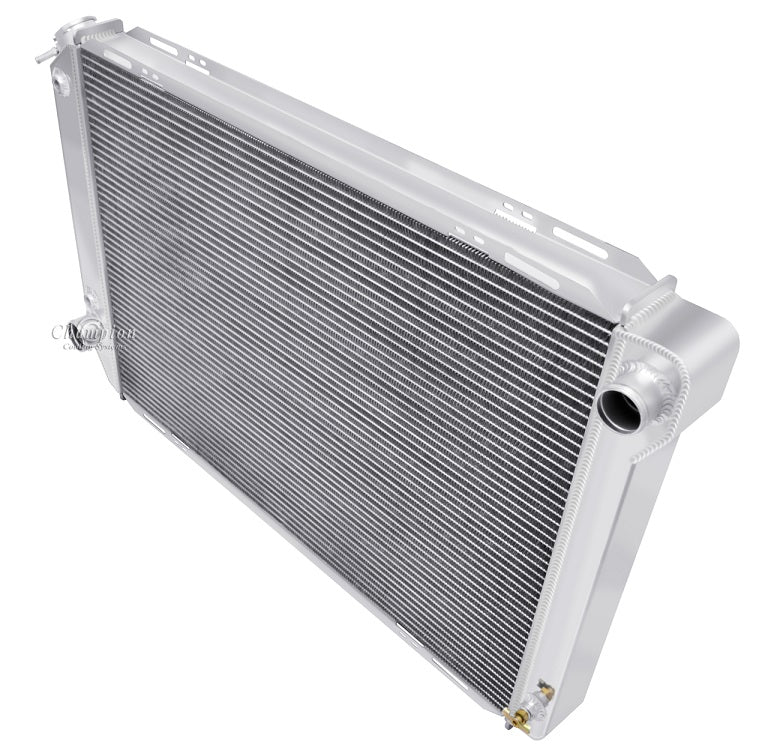

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

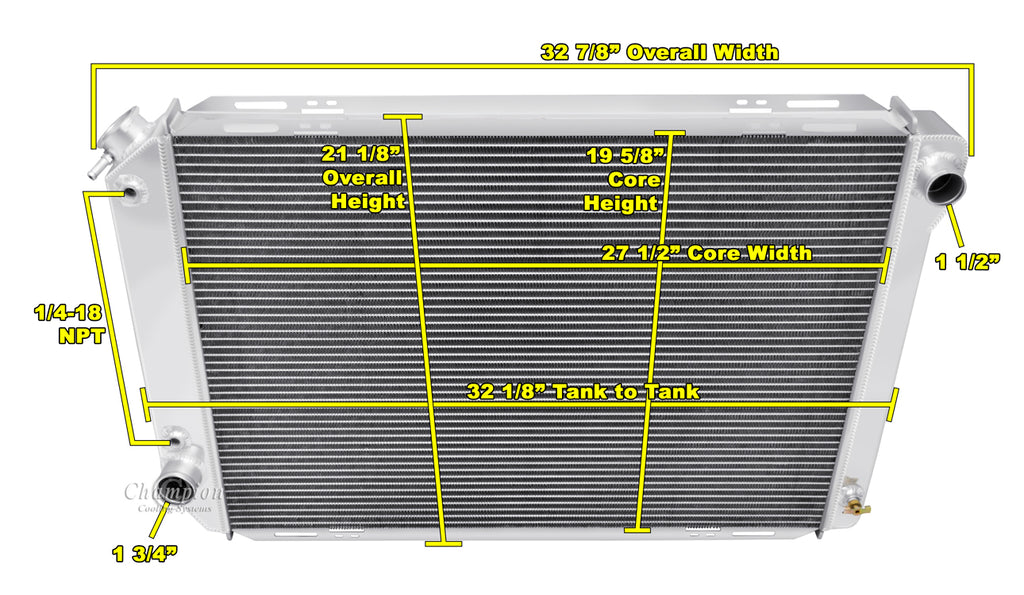

Radiator Dimensions:
Total: 21.13" tall x 32.83" wide (with brackets)
Core: 19.63" tall x 27.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separetely)
