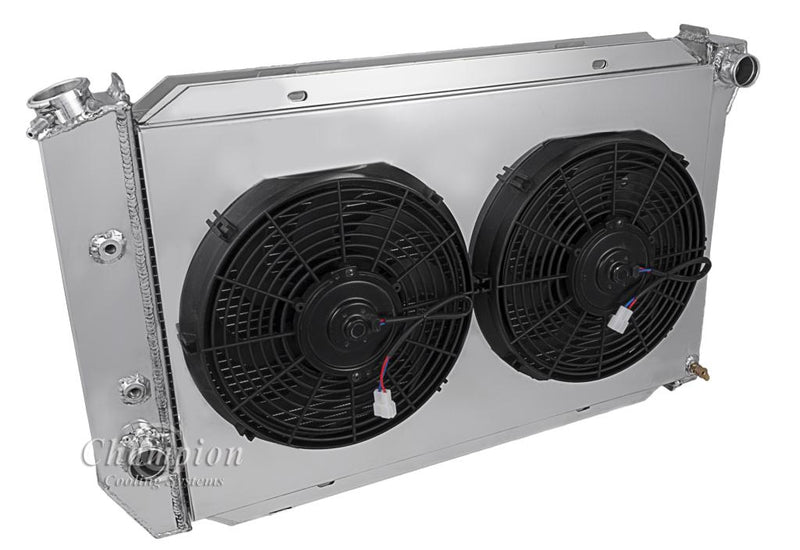

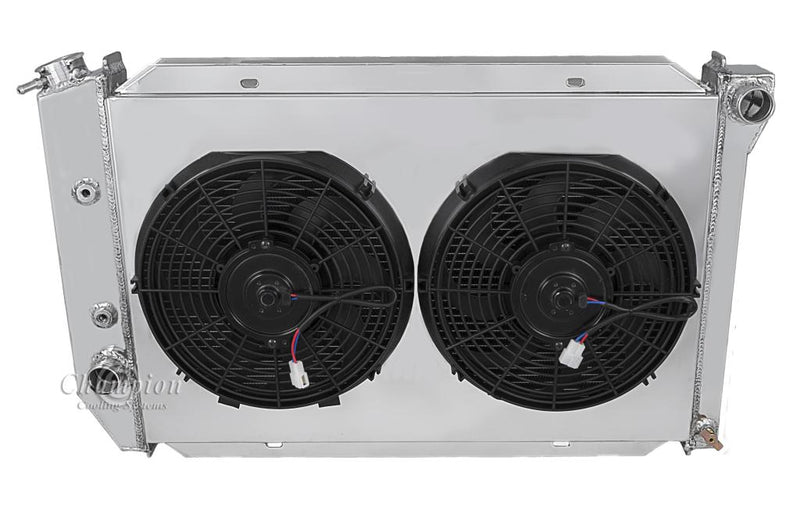

CC381-381FS12SP 3 Row Combo

Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $30"
3-Row Core | Cools up to 700hp

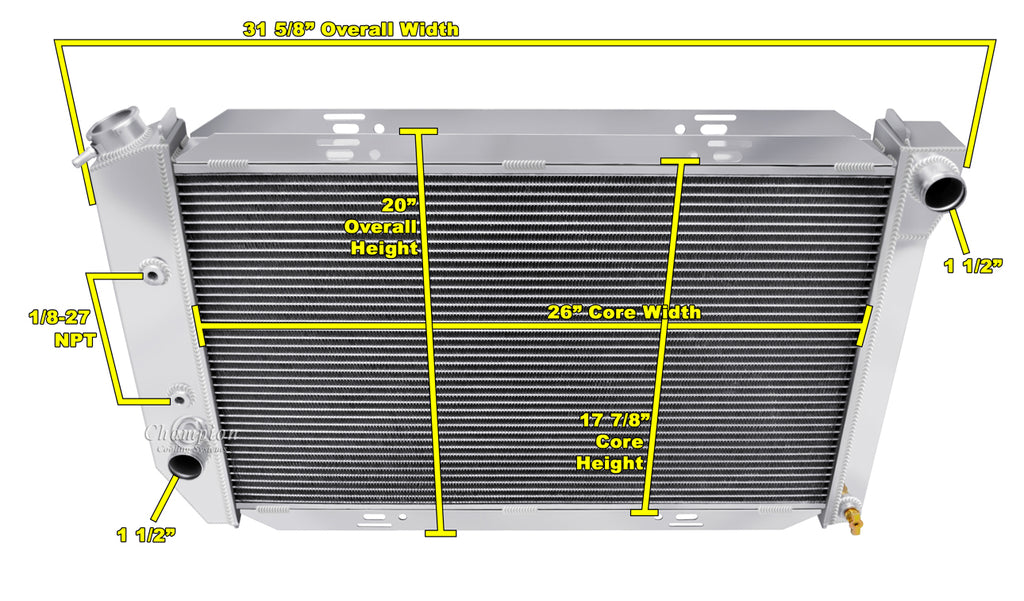

Radiator Dimensions:
Total: 20" tall (with cap) x 32" wide
Core: 17.5" tall x 26” wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Total to back of fans: 5.5" Thick
Between fan motors: 4.5" Thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
