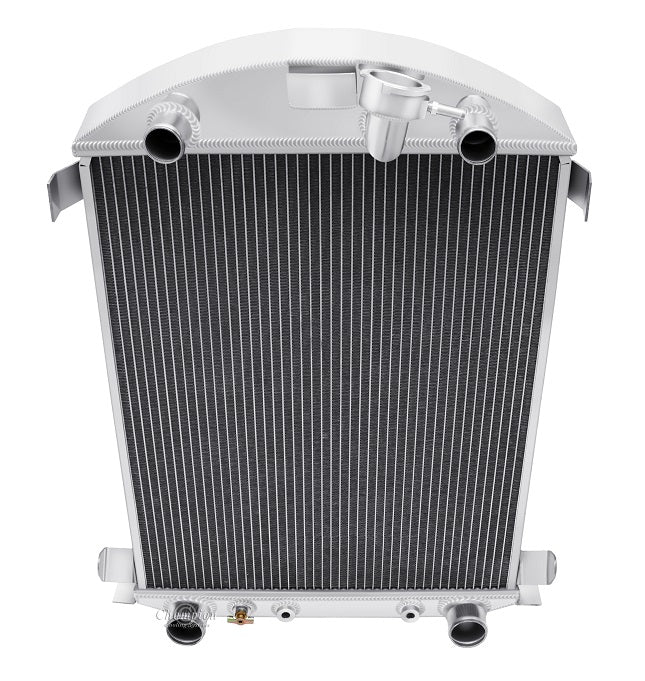

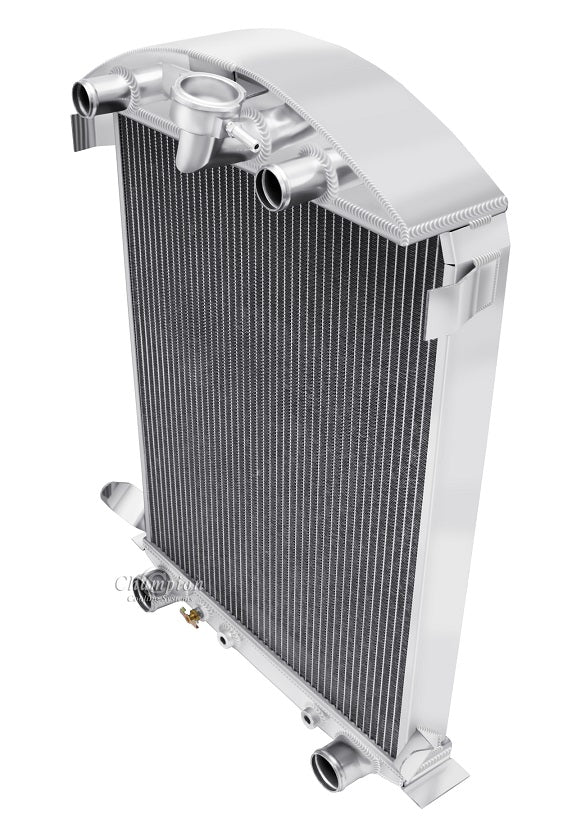

CC3031FH 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 800hp

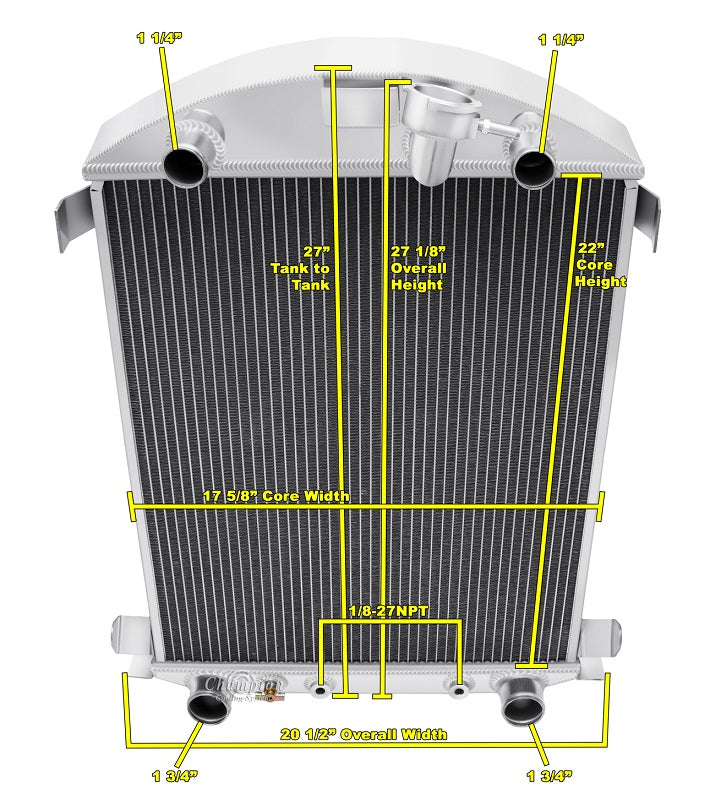

Radiator Dimensions:
Total: 20.5" wide (lower bracket) x 27.13" tall
Core: 17.63" wide x 22" tall x 2.25" thick
Inlet: 1.25" driver and passenger side
Outlet: 1.75"driver and passenger side
Tanks: Upper 4.13", Lower 2.63" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8-27 NPT)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
