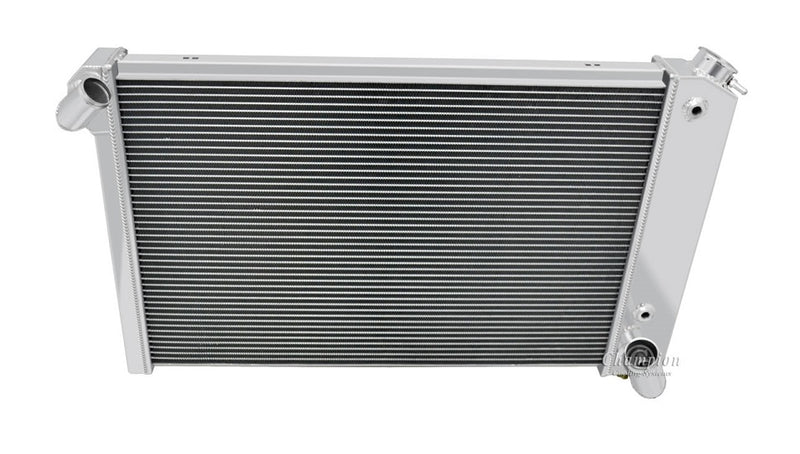

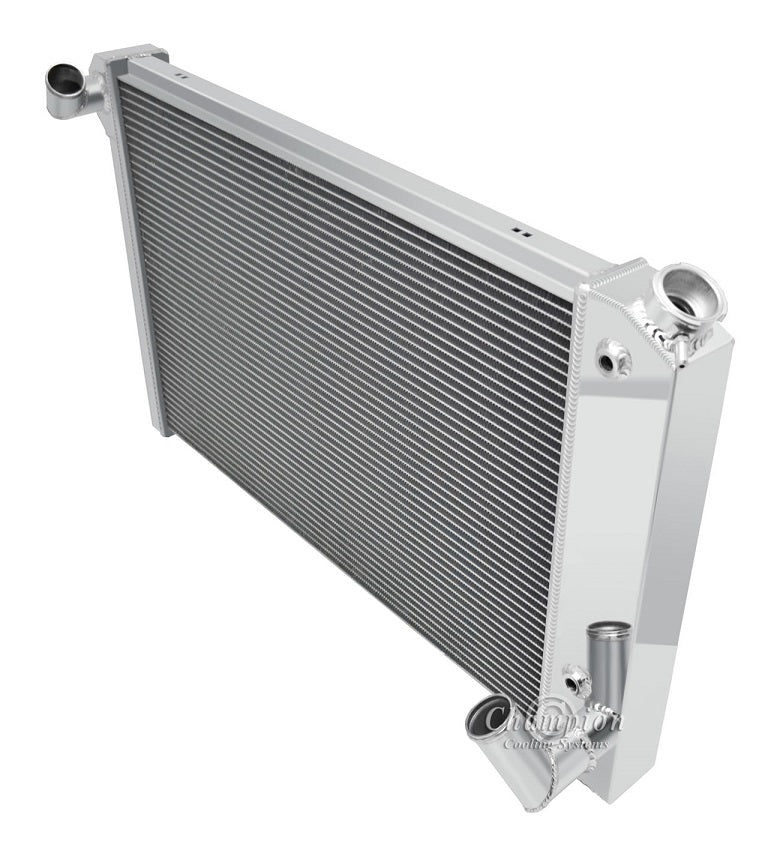

CC1655 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped outlet we do not carry it.

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included: 1/2"-20 Straight Thread
Aluminum Fan Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
