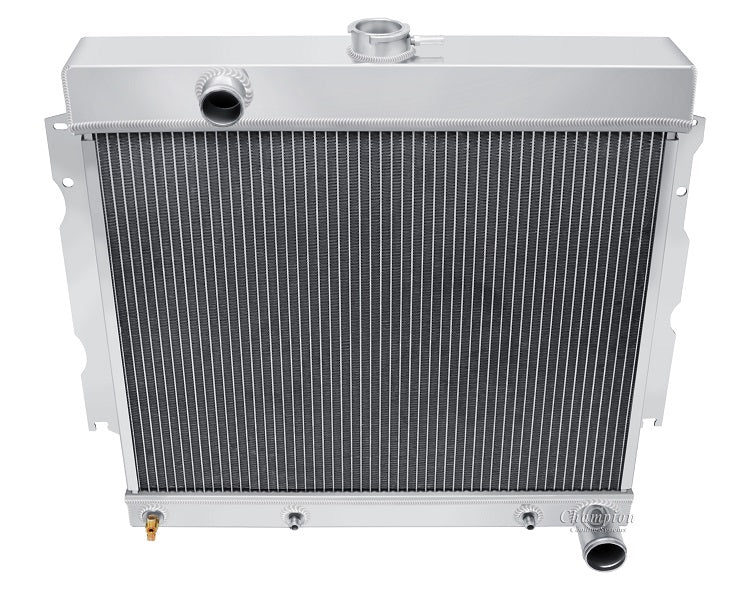

CC1635LP 3 Row Outlet Passenger Side

All Aluminum Champion Radiator
3-Row Core | Cools up to 550hp
If you need a shorter version, refer to CC6769

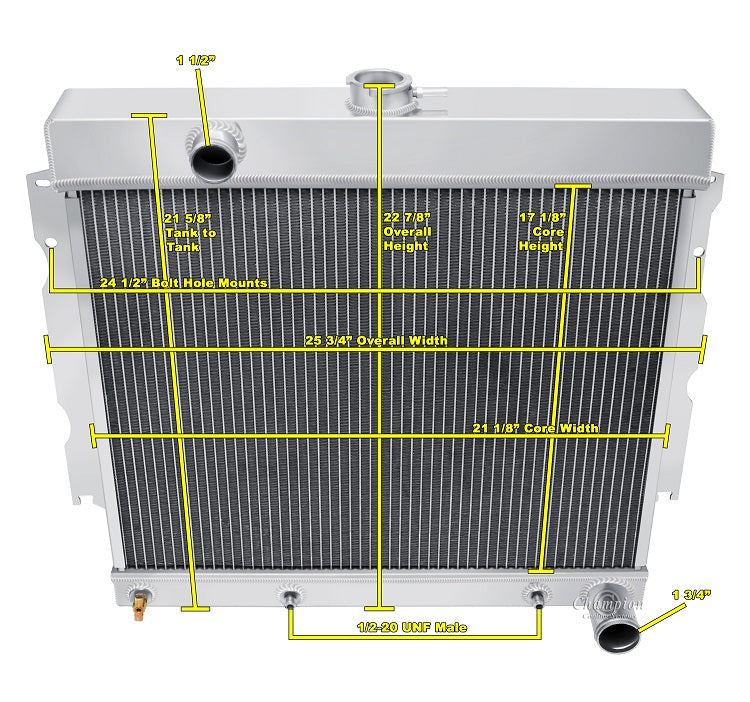

Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 21.13" wide x 2" thick
Inlet: 1.5" driver side; off center
Outlet: 1.5" passenger side
Tanks: 3.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

Aluminum Fan Shroud is also available (sold separately)

Recommended fans:
16" Electric Cooling Fan (sold separately)
