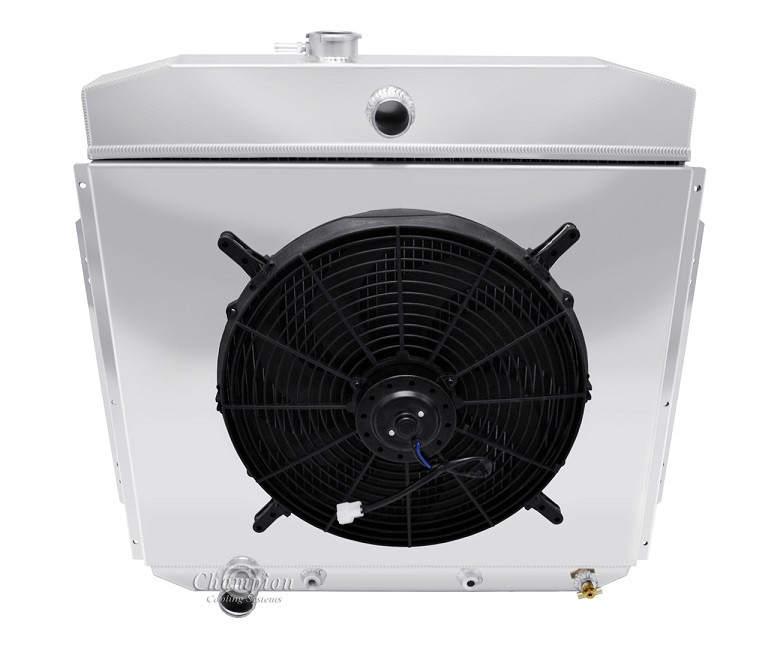

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6" to fan motor

3-Row Core | 650hp Rating

Radiator Dimensions:
Total: 26.25" tall (with cap) x 27.5" wide (including brackets)
Core: 20" tall x 23" wide x 2" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27 NPT)
