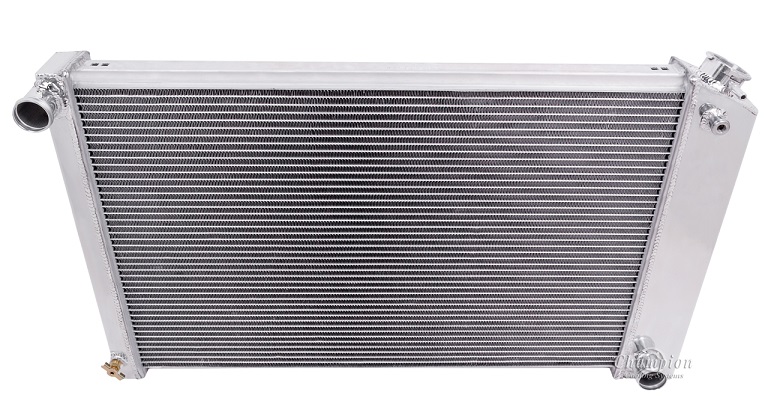

Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp
MANUAL TRANSMISSION ONLY

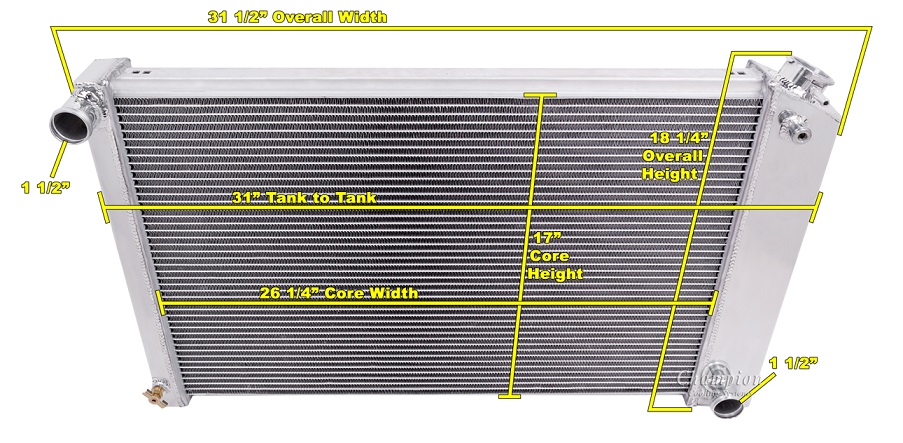

Radiator Dimensions
Total: 31" wide x 18.25" tall (19" with cap) x 2.5" deep
Core: 26.25" wide x 16.75" tall x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes:  0.63" thick

Saddle Mounted


13 lb. Radiator Cap included
NO Transmission Cooler included
Aluminum Fan Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size



Specifications
Chevy Camero (1970-1981) 4.1l L6, 305ci V8, 350ci V8
Chevy Malibu (1978-1983) 267ci V8, 305ci V8, 350ci V8
Chevy Monte Carlo (1978-1988) 3.3l V6, 3.8l V6, 267ci V8, 305ci V8
Olds Cutlass (1978-1987) 260ci V8, 305ci V8, 350ci V8
